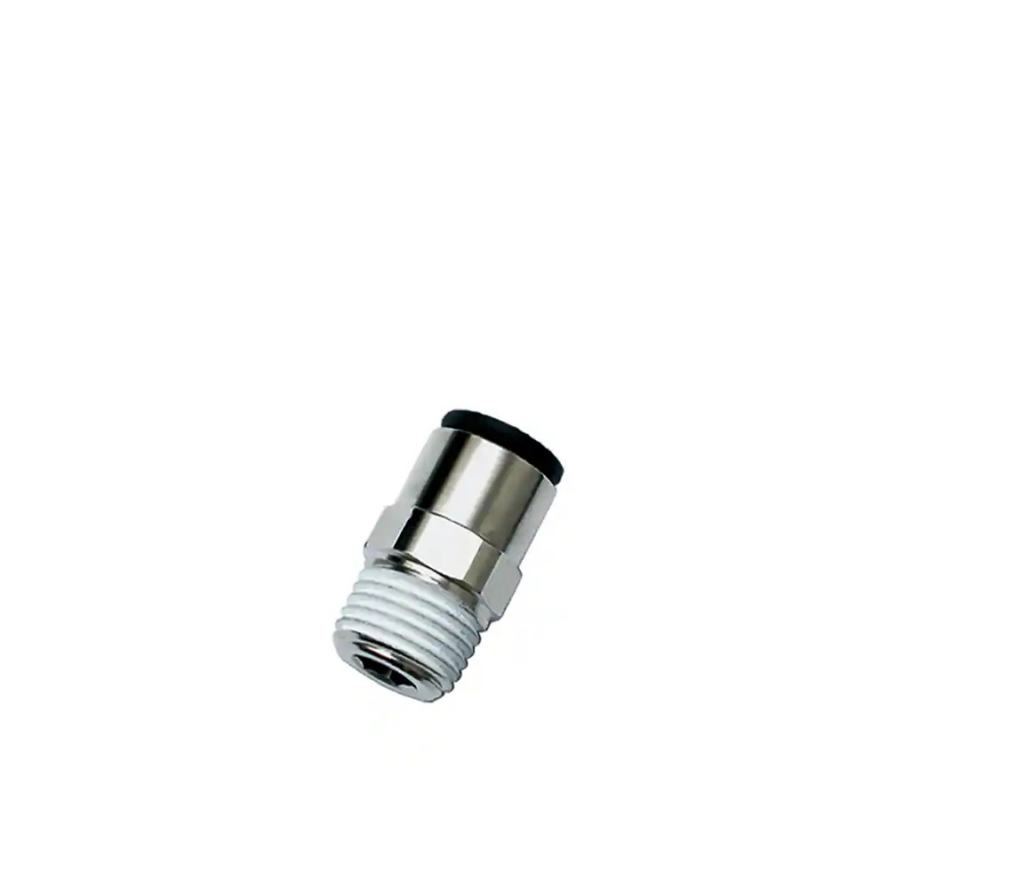

Parker Legris LF3000 16mm - 1/2"Bspt Male Stud Fitting
Parker Legris LF3000 straight, 16 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 16mm to 1/2" BSPT male stud fitting is a push-to-connect pneumatic connector designed for robotics and industrial processing applications requiring reliable compressed air distribution.
This straight stud fitting delivers dependable performance across low-pressure fluid systems where quick, tool-free connections are essential. The 16mm tube connection pairs with a 1/2" BSPT male port, enabling seamless integration into existing pneumatic networks. Constructed from nickel-plated brass with a stainless steel gripping ring and NBR seal, the fitting withstands working temperatures from -20°C to 80°C and maintains a vacuum rating of 755 mm-Hg, making it suitable for both standard and process-critical air applications.
The hexagon metric body (27mm hex size) facilitates straightforward installation and maintenance in confined spaces. Supplied in boxes of five, this proven LF3000 connector serves industrial automation, manufacturing, food and beverage, and instrument air systems worldwide.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 16 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | 1/2 inch Tube O.D. |
| Hex Size | 27 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Textile, Pneumatics, Packaging, Automotive, Vacuum, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.079 kg |
| Quantity per Box | 5 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
