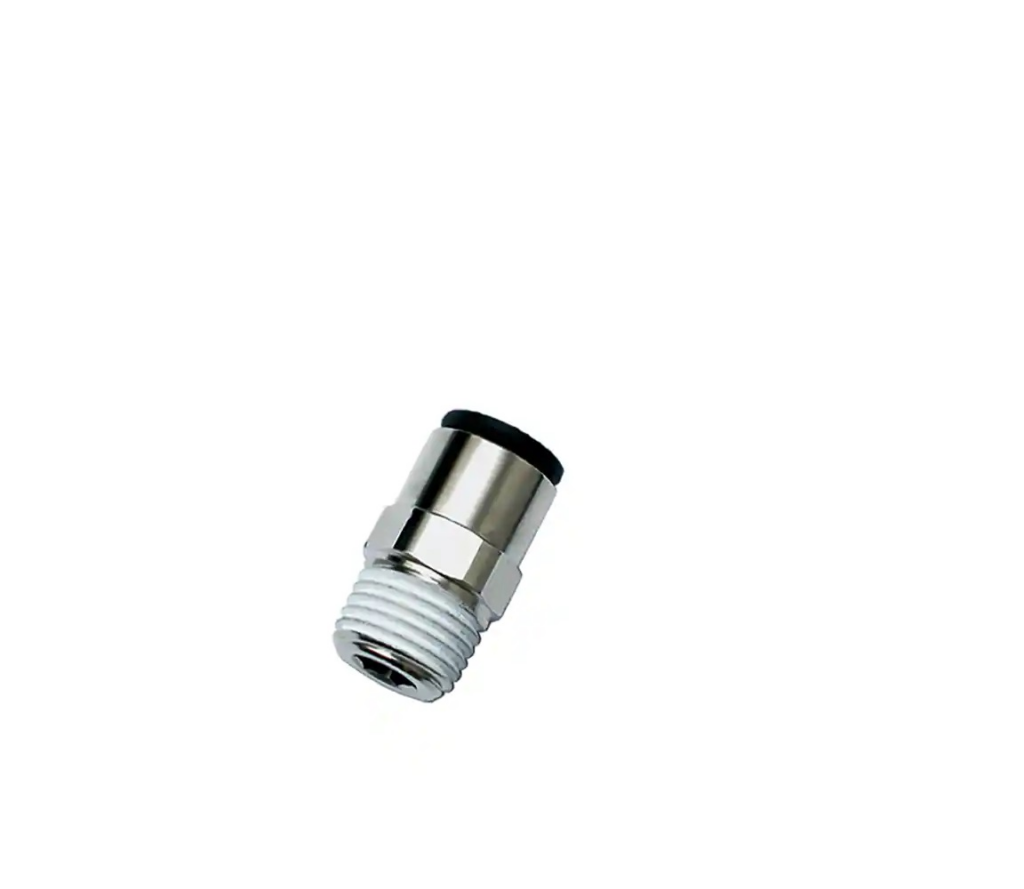

Parker Legris LF3000 16mm - 3/8"Bspt Male Stud Fitting
Parker Legris LF3000 straight, 16 mm tube to R 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 16mm to 3/8" BSPT male stud fitting is a straight push-to-connect connector designed for compressed air and vacuum applications in industrial pneumatic systems.
This fitting delivers reliable performance across a wide operating range from −20 °C to 80 °C, making it suitable for both heated and cold-storage environments. The nickel-plated brass body provides excellent corrosion resistance, whilst the stainless steel gripping ring ensures secure, repeatable connections without tools. The NBR seals maintain system integrity even in demanding vacuum applications down to 755 mm-Hg, eliminating leaks and minimising downtime in mission-critical installations.
The 16 mm tube connection pairs seamlessly with the R 3/8 BSPT male port, offering intuitive tube-to-port configuration for straightforward assembly. Supplied in boxes of five units with a 27 mm hex size for wrench engagement, these fittings are engineered for integration into control systems, instrumentation lines, and process air networks across manufacturing, automation, and industrial equipment sectors.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 16 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 3/8 inch Thread |
| Hex Size | 27 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Textile, Pneumatics, Automotive, Packaging, Robotics, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.068 kg |
| Quantity per Box | 5 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
