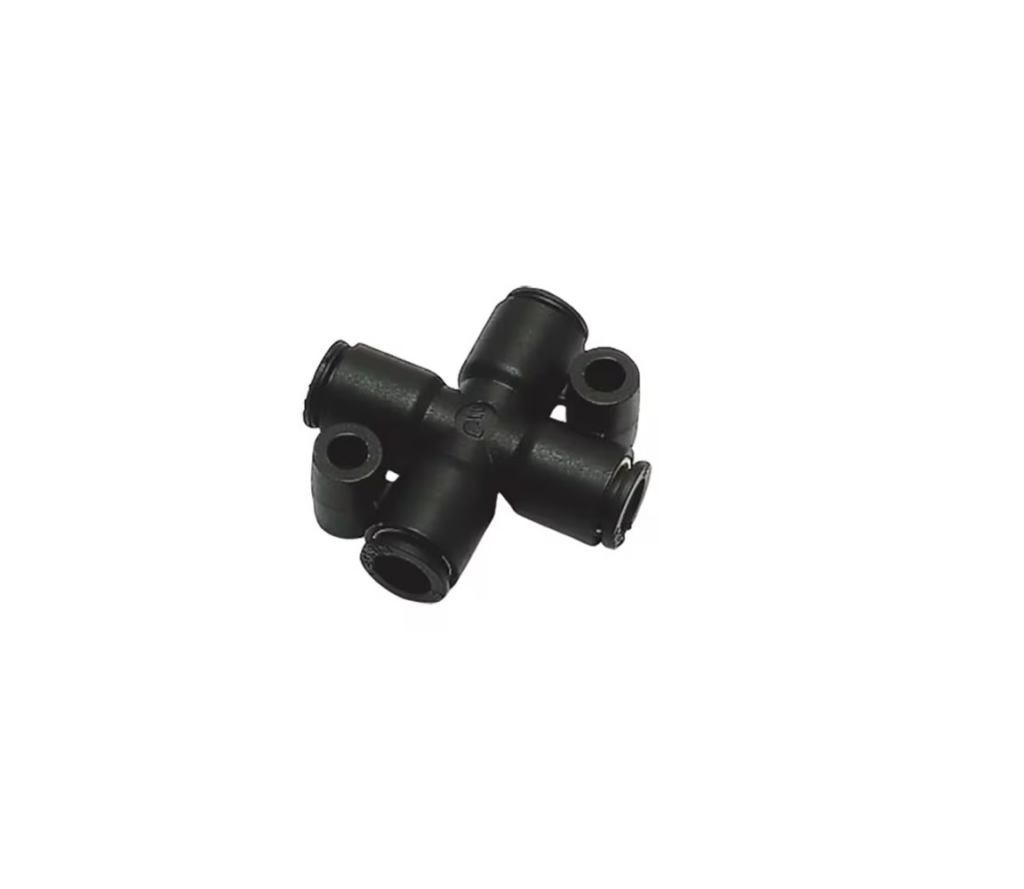

Parker Legris LF3000 6mm-8mm Tube to Tube Unequal Cross
Overview
The Parker Legris LF3000 6mm-8mm Tube to Tube Unequal Cross is a push-in pneumatic fitting designed for low-pressure fluid and gas applications in textile and electronics manufacturing.
This unequal cross connector simplifies system layouts by joining tubes of different diameters in a single component, eliminating the need for multiple reducers and adapters. The LF3000 range is widely used in instrument air lines, process control systems, and low-pressure pneumatic circuits where quick, tool-free installation reduces assembly time and labour costs. The technical polymer body with stainless steel gripping ring provides reliable performance whilst maintaining a lightweight, compact footprint ideal for space-constrained applications.
Operating across a temperature range of -20 °C to 80 °C with a vacuum rating of 755 mm-Hg, this fitting accommodates 6mm and 8mm outer diameter tubing with secure NBR seals that ensure leak-free connections. Supplied in boxes of ten units, this connector serves automation, textile processing, and light industrial applications requiring dependable, low-maintenance pneumatic distribution.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.018 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | 8 mm Tube O.D. |
| Shape | Cross |
| Application | Pneumatics, Automotive, Vacuum, Packaging, Robotics, Textile |
| Connection 1 Type | Tube |
| Hex Type | n/a |
| Gripping Ring Material | Stainless Steel |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 2 Type | Tube |
