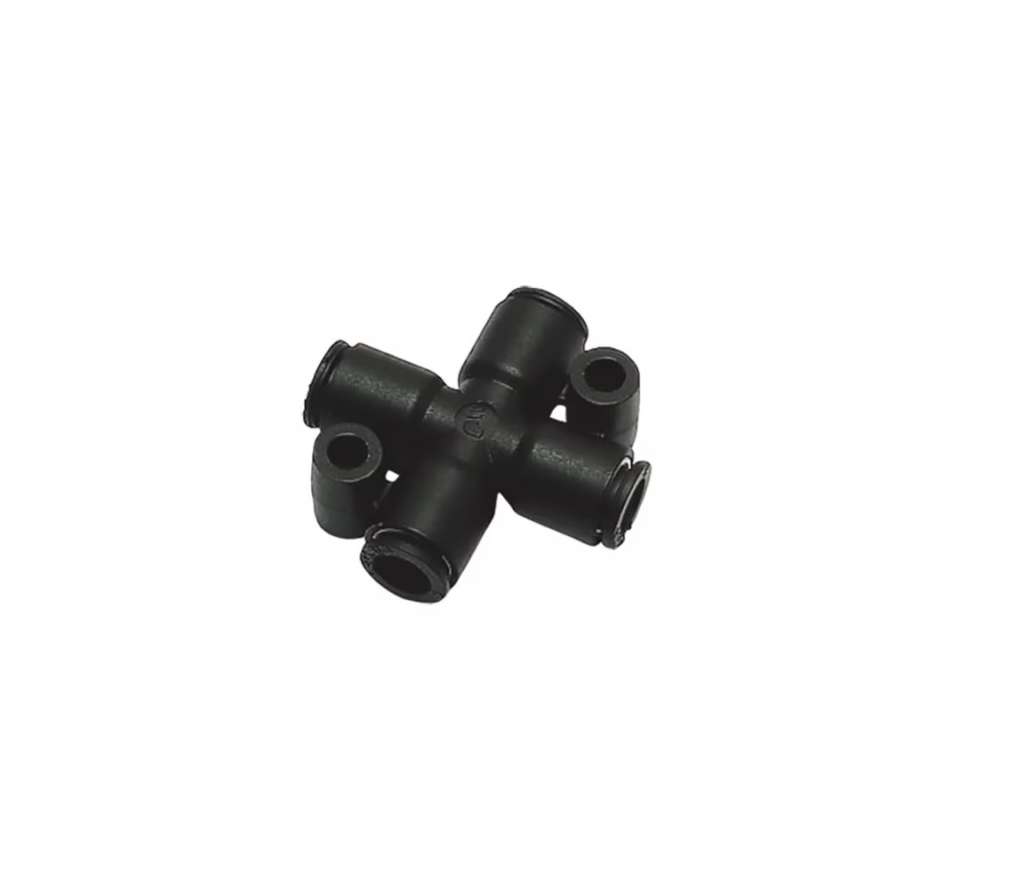

Parker Legris LF3000 6mm Tube to Tube Equal Cross
Parker Legris LF3000 cross, 6 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm Tube to Tube Equal Cross is a push-in pneumatic fitting designed for low-pressure vacuum and fluid distribution applications.
This cross connector simplifies circuit organisation in compressed air and vacuum systems by enabling four-way tube connections from a single junction point. Its push-to-connect design eliminates the need for tools, reducing assembly time and minimising leak points in process air and light fluid lines. The fitting accommodates 6mm outer diameter tubing on all four ports and operates reliably across a working temperature range of −20 °C to 80 °C, with a vacuum rating of 755 mm-Hg.
Constructed from technical polymer with a stainless steel gripping ring and NBR seals, this compact, lightweight component weighs just 5 grams and resists corrosion in humid environments. Supplied in convenient packs of 10, the LF3000 cross fitting serves industrial automation, food and beverage processing, and general instrumentation applications.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Cross |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 6 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Automotive, Pneumatics, Robotics, Textile, Packaging, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.005 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.18 |
