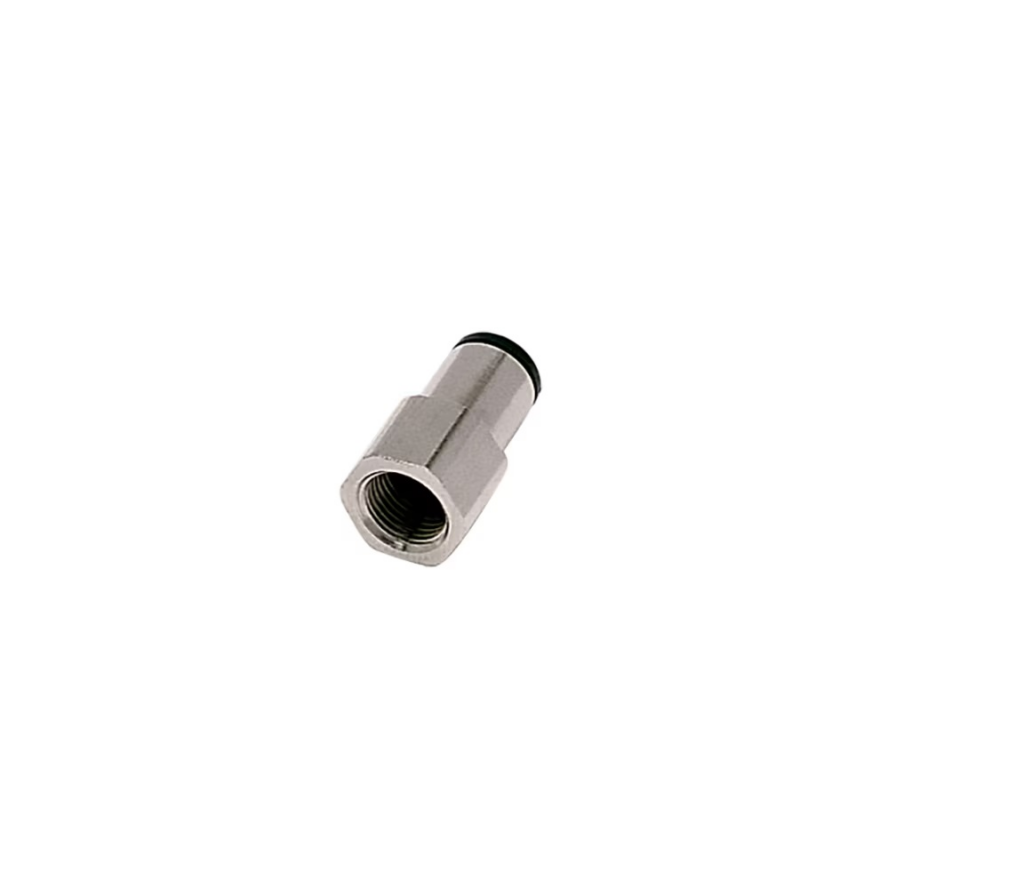

Parker Legris LF3000 6mm - 1/8"Bspp Female Stud Fitting
Overview
The Parker Legris LF3000 6mm to 1/8" BSPP female stud fitting is a straight push-to-connect connector designed for compressed air and low-pressure pneumatic applications in automotive and process engineering environments.
This stud fitting excels in systems where quick, tool-free connections are essential without sacrificing reliability. The 6mm tube connection pairs seamlessly with 1/8" BSPP female ports, making it ideal for instrument air lines, control circuits, and modular pneumatic assemblies where space and installation time are at a premium.
The body is constructed from nickel-plated brass with a stainless steel gripping ring, ensuring corrosion resistance and durability across temperature ranges from –20 °C to +80 °C. The NBR seal material maintains a vacuum rating of 755 mm-Hg, whilst the 13mm hex size enables straightforward installation and maintenance. Supplied in boxes of ten, this fitting represents a cost-effective solution for pneumatic system integration.
Widely deployed across chemical processing, automotive manufacturing, and industrial automation sectors where dependable low-pressure connections are non-negotiable.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 13 |
| Weight | 0.011 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | G 1/8 inch Thread |
| Connection 2 Type | BSPP, Female |
| Shape | Straight |
| Application | Robotics, Textile, Vacuum, Pneumatics, Packaging, Automotive |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
