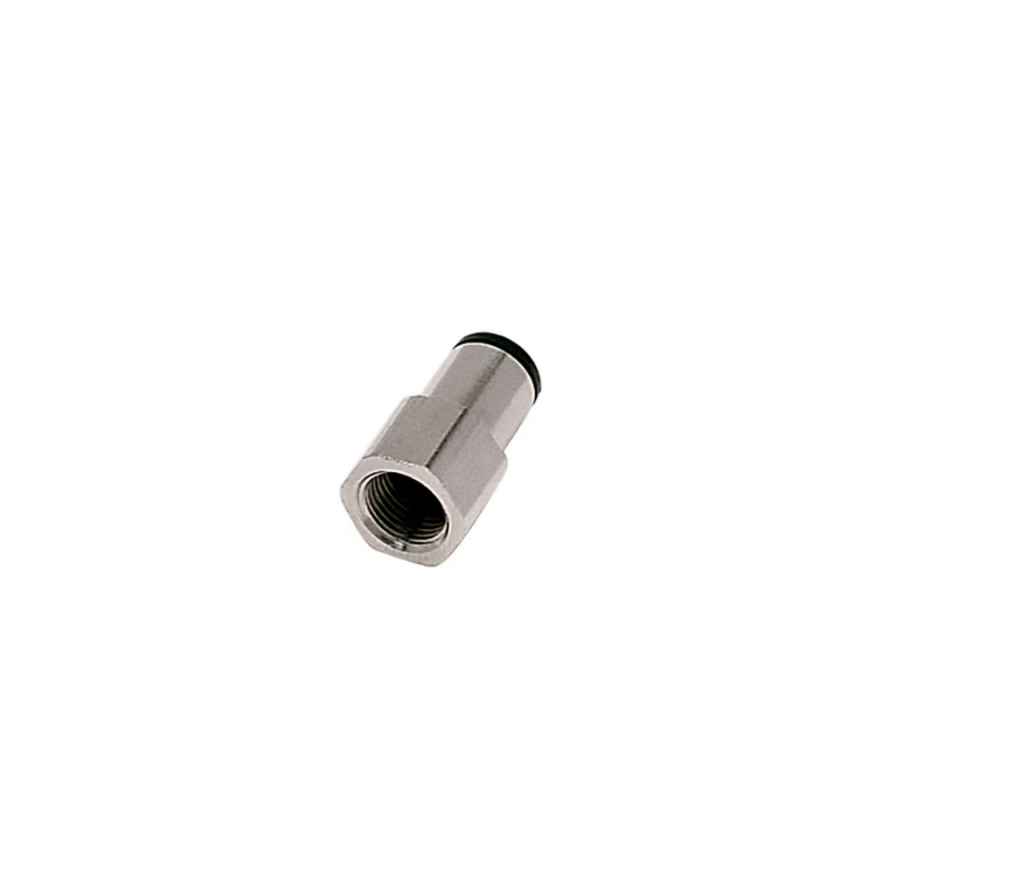

Parker Legris LF3000 12mm - 1/2"Bspp Female Stud Fitting
Parker Legris LF3000 straight, 12 mm tube to G 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 is a straight stud fitting designed to connect 12 mm tubing to G 1/2 female BSPP ports in pneumatic and low-pressure fluid systems, particularly for packaging machinery.
This push-to-connect fitting eliminates the need for tools or complicated assembly procedures, making it ideal for applications requiring frequent disconnections or rapid system changes. The brass body with nickel plating provides durability and corrosion resistance, whilst the stainless steel gripping ring ensures reliable tube retention across the operating temperature range of –20 °C to +80 °C. The NBR seal material delivers consistent performance in compressed air and compatible fluid handling applications. The compact hexagon metric design (24 mm hex size) facilitates installation in tight spaces, and the fitting accommodates a vacuum rating of 755 mm-Hg, making it suitable for both positive and negative pressure scenarios.
Supplied in boxes of 10 units, this fitting serves off-road machinery, industrial automation, and process air systems where dependable, tool-free connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | BSPP, Female |
| Connection 2 Size | G 1/2 inch Thread |
| Hex Size | 24 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Vacuum, Automotive, Pneumatics, Robotics, Textile, Packaging |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.053 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
