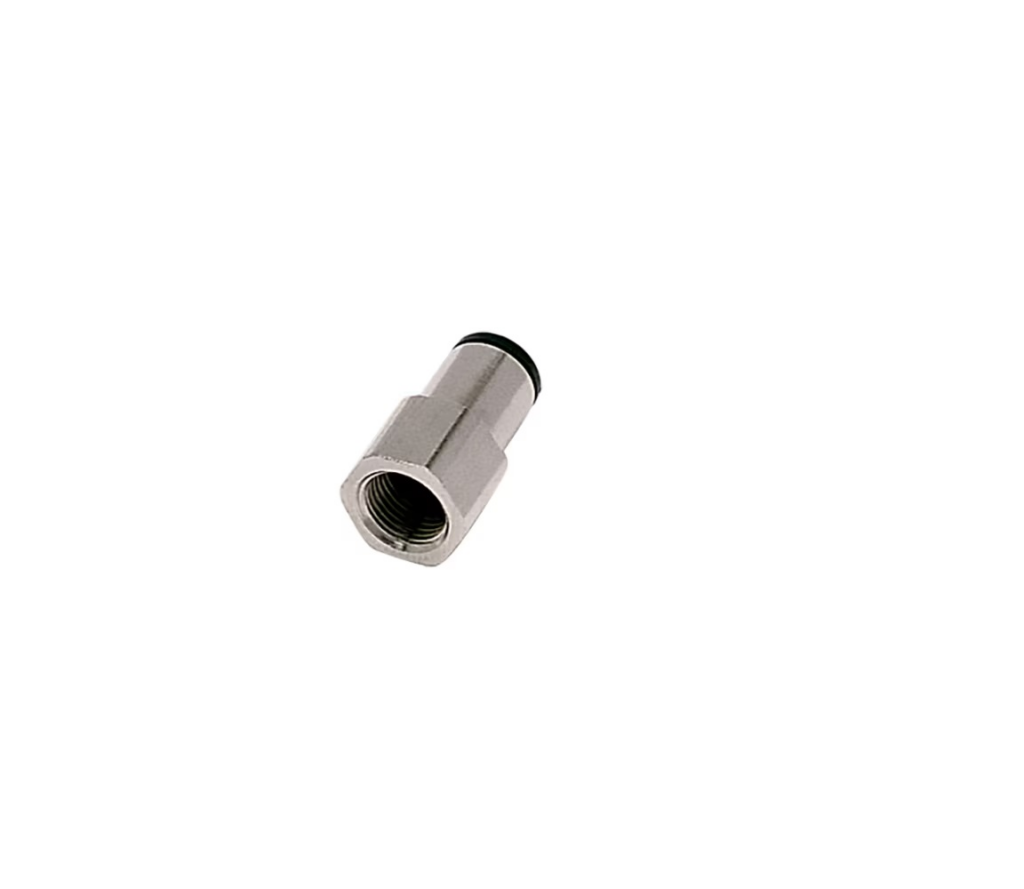

Parker Legris LF3000 8mm - 1/4"Bspp Female Stud Fitting
Overview
The Parker Legris LF3000 8mm to 1/4" BSPP female stud fitting is a push-to-connect pneumatic connector designed for packaging machinery and transportation applications requiring reliable tube-to-port connections.
This fitting delivers straightforward, maintenance-free operation in low-pressure fluid and gas systems operating between –20 °C and 80 °C. The nickel-plated brass body with stainless steel gripping ring ensures corrosion resistance and durability in demanding environments, whilst the NBR seal material provides dependable performance across a broad range of fluid types. Connection is simple: 8 mm tubing slides directly onto the push-in design, whilst the G 1/4 female BSPP port accepts standard pneumatic equipment without tools or adapters.
Supplied in boxes of 10 units with a 16 mm hex size for wrench engagement, this stud fitting suits industrial automation, food and beverage processing, and instrument air distribution systems.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 16 |
| Weight | 0.021 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | G 1/4 inch Thread |
| Connection 2 Type | Female, BSPP |
| Shape | Straight |
| Application | Textile, Pneumatics, Automotive, Vacuum, Robotics, Packaging |
| Hex Type | Hexagon Metric |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
| Vacuum Pressure Rating | 755 mm-Hg |
