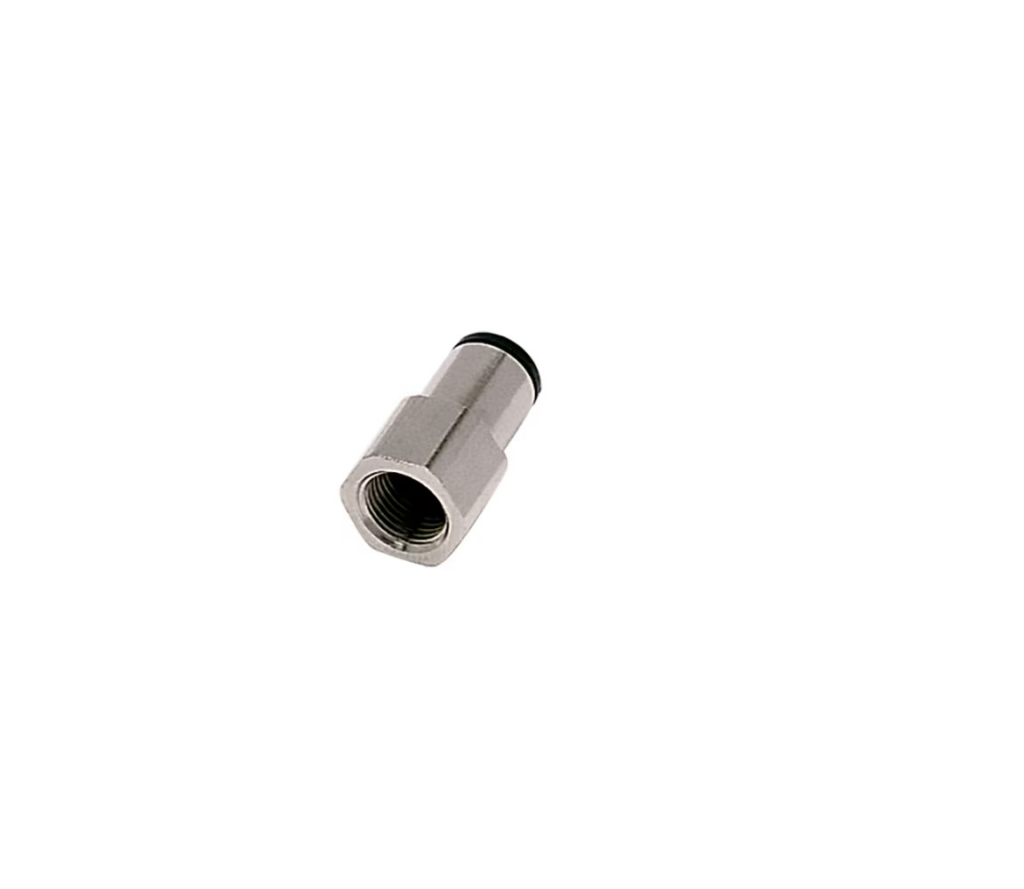

Parker Legris LF3000 10mm - 3/8"Bspp Female Stud Fitting
Overview
The Parker Legris LF3000 is a push-to-connect stud fitting designed for low-pressure pneumatic and fluid systems in automotive and transportation applications. This straight connector bridges 10mm tubing to a G 3/8 female BSPP port, making it ideal for joining rigid manifolds, regulators, and instrumentation in compact assembly spaces. The fitting's nickel-plated brass body with stainless steel gripping ring delivers reliable performance across a -20 °C to 80 °C operating range, whilst the NBR seals ensure compatibility with compressed air, inert gases, and other fluids. Its 755 mm-Hg vacuum rating suits applications requiring both positive and negative pressure control. The push-in design eliminates the need for tools during installation, reducing downtime and training requirements on production lines. Supplied in boxes of 10 units with a convenient 19mm hexagon for wrench-assisted removal, this fitting serves automotive manufacturers, process control systems, and industrial pneumatic networks.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 19 |
| Weight | 0.027 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | G 3/8 inch Thread |
| Connection 2 Type | Female, BSPP |
| Shape | Straight |
| Application | Pneumatics, Robotics, Textile, Vacuum, Packaging, Automotive |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
| Hex Type | Hexagon Metric |
