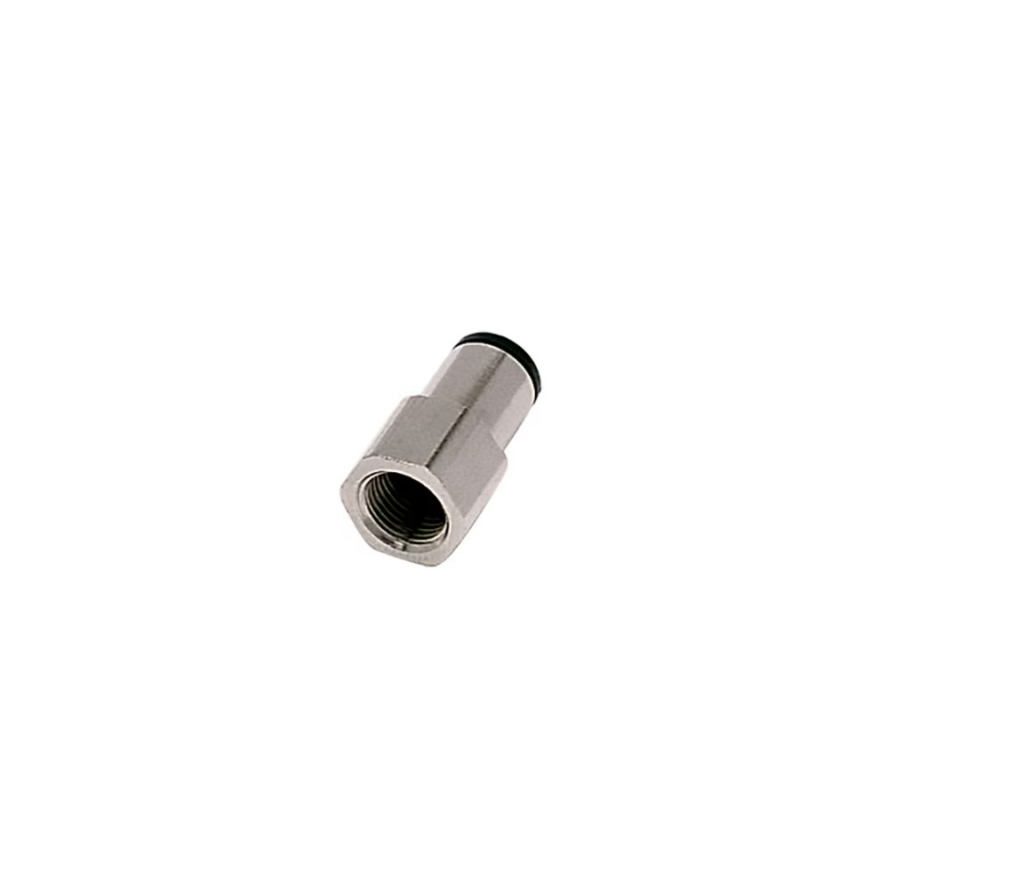

Parker Legris LF3000 12mm - 3/8"Bspp Female Stud Fitting
Parker Legris LF3000 straight, 12 mm tube to G 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm to 3/8" BSPP female stud fitting is a push-to-connect coupling designed for reliable tube-to-port connections in low-pressure pneumatic and fluid systems.
This straightforward stud fitting excels in applications requiring quick, leak-free assembly without tools or fittings expertise. The LF3000 range is ideal for textile machinery, process instrumentation, and distributed air networks where dependable performance and minimal downtime matter. The fitting accommodates 12mm outer diameter tubing and features a G 3/8 female BSPP thread for secure port connection, with a nickel-plated brass body and stainless steel gripping ring ensuring corrosion resistance across varied industrial environments. Operating reliably between –20 °C and +80 °C, and rated to 755 mm-Hg vacuum, this connector handles both positive and negative pressure demands. The NBR seal material provides chemical compatibility with standard pneumatic fluids.
Supplied in boxes of 10 units with a convenient 19mm hex size for installation, this fitting serves power generation, textile manufacturing, and general process automation sectors across Europe.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | BSPP, Female |
| Connection 2 Size | G 3/8 inch Thread |
| Hex Size | 19 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Pneumatics, Automotive, Packaging, Vacuum, Robotics, Textile |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.033 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
