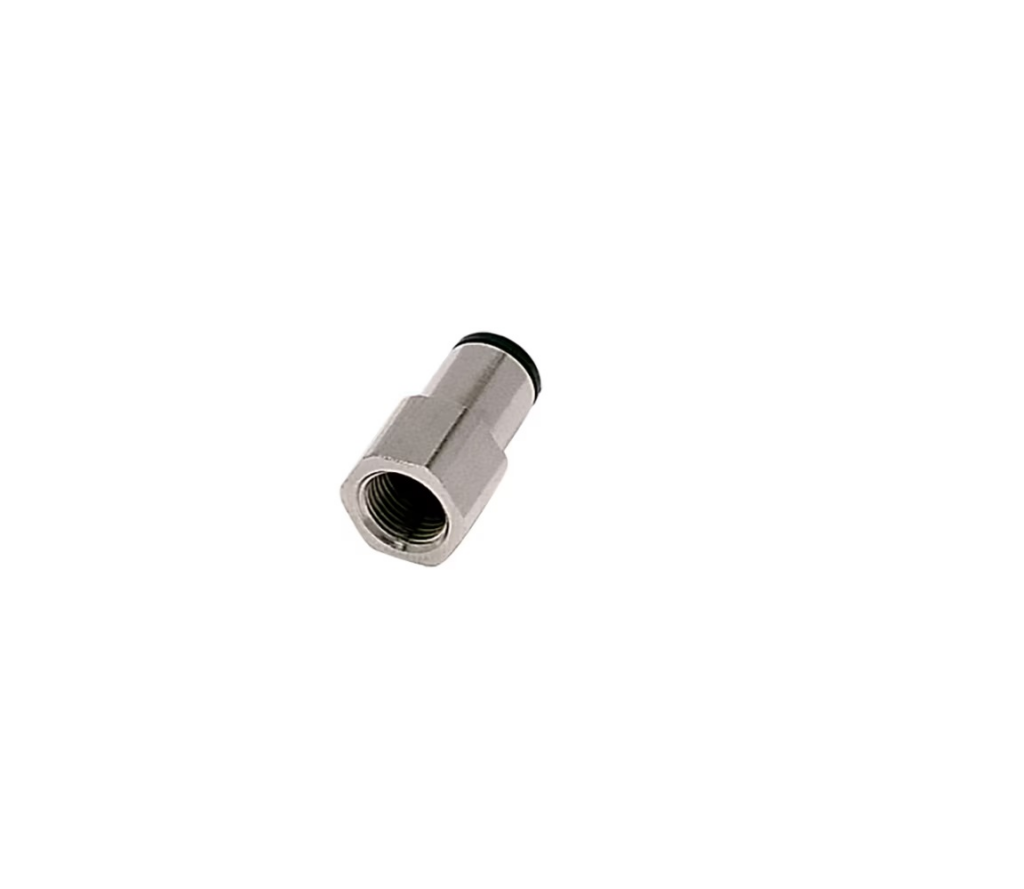

Parker Legris LF3000 14mm - 3/8"Bspp Female Stud Fitting
Parker Legris LF3000 straight, 14 mm tube to G 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 14mm – 3/8" BSPP Female Stud Fitting is a push-in connector designed for low-pressure pneumatic and fluid handling applications in automotive and power generation environments.
This straight stud fitting connects 14mm tubes directly to 3/8" BSPP female ports without tools, making installation and disconnection quick and reliable. The nickel-plated brass body with stainless steel gripping ring provides corrosion resistance and durability, whilst the NBR seals ensure dependable performance across a broad operating range from –20 °C to 80 °C. With a vacuum rating of 755 mm-Hg and a 22mm hexagon metric body, this fitting accommodates typical low-pressure system demands.
Supplied in boxes of 10 units, the LF3000 is ideal for industrial automation, process air systems, and instrument control networks where quick-connect reliability and compact design are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 14 mm Tube O.D. |
| Connection 2 Type | Female, BSPP |
| Connection 2 Size | G 3/8 inch Thread |
| Hex Size | 22 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Robotics, Pneumatics, Textile, Vacuum, Packaging, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.057 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
