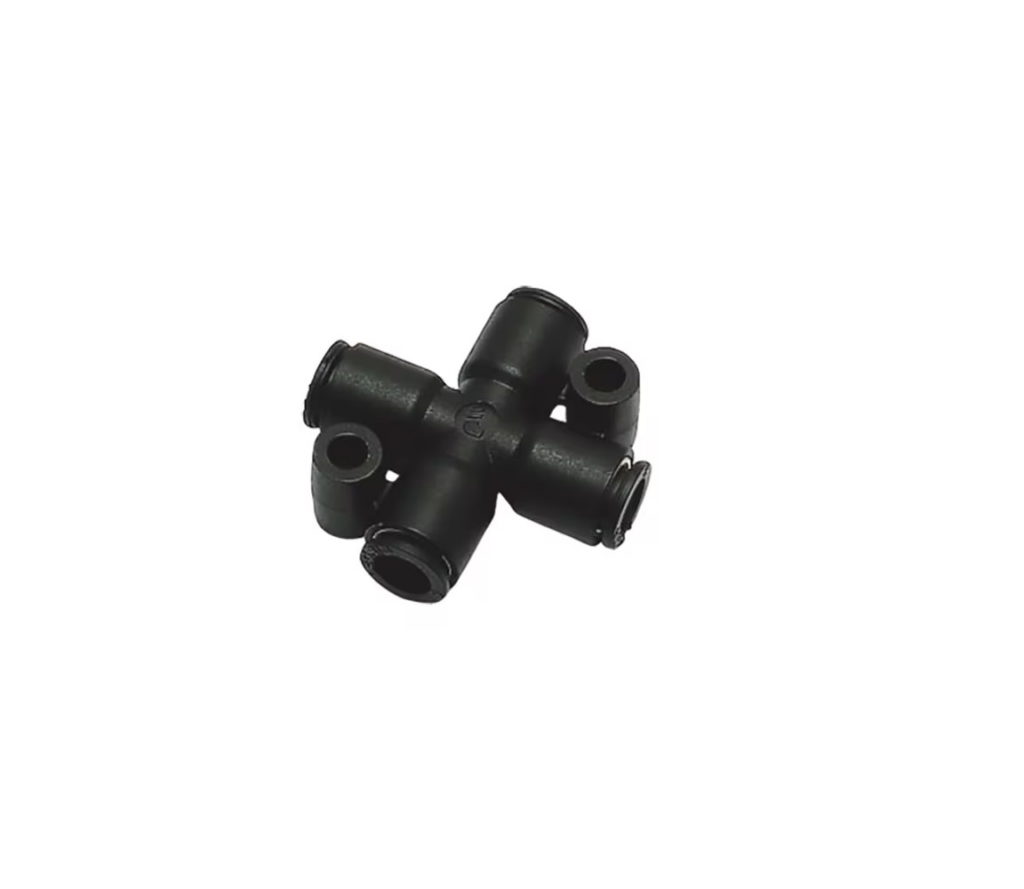

Parker Legris LF3000 8mm-6mm Tube to Tube Unequal Cross
Overview
The Parker Legris LF3000 8mm-6mm Tube to Tube Unequal Cross is a pneumatic push-in fitting designed for robotics and low-pressure air distribution systems where space-efficient branching is required.
This cross connector enables simple, tool-free installation in compressed air networks, making it ideal for applications where rapid reconfiguration or maintenance is necessary. The unequal port configuration—with 8 mm and 6 mm outer diameter tube connections—allows flexible network design without additional reducers, whilst the stainless steel gripping ring ensures secure, vibration-resistant connections. Built from technical polymer with an NBR seal, the fitting delivers reliable performance across a broad operating range of -20 °C to 80 °C and maintains vacuum integrity to 755 mm-Hg, making it suitable for both positive and negative pressure circuits.
Supplied in convenient packs of ten, this fitting serves industrial automation, process control, and instrument air systems where dependable pneumatic distribution is essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.022 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | 6 mm Tube O.D. |
| Shape | Cross |
| Application | Packaging, Textile, Pneumatics, Automotive, Vacuum, Robotics |
| Hex Type | n/a |
| Gripping Ring Material | Stainless Steel |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 2 Type | Tube |
| Connection 1 Type | Tube |
