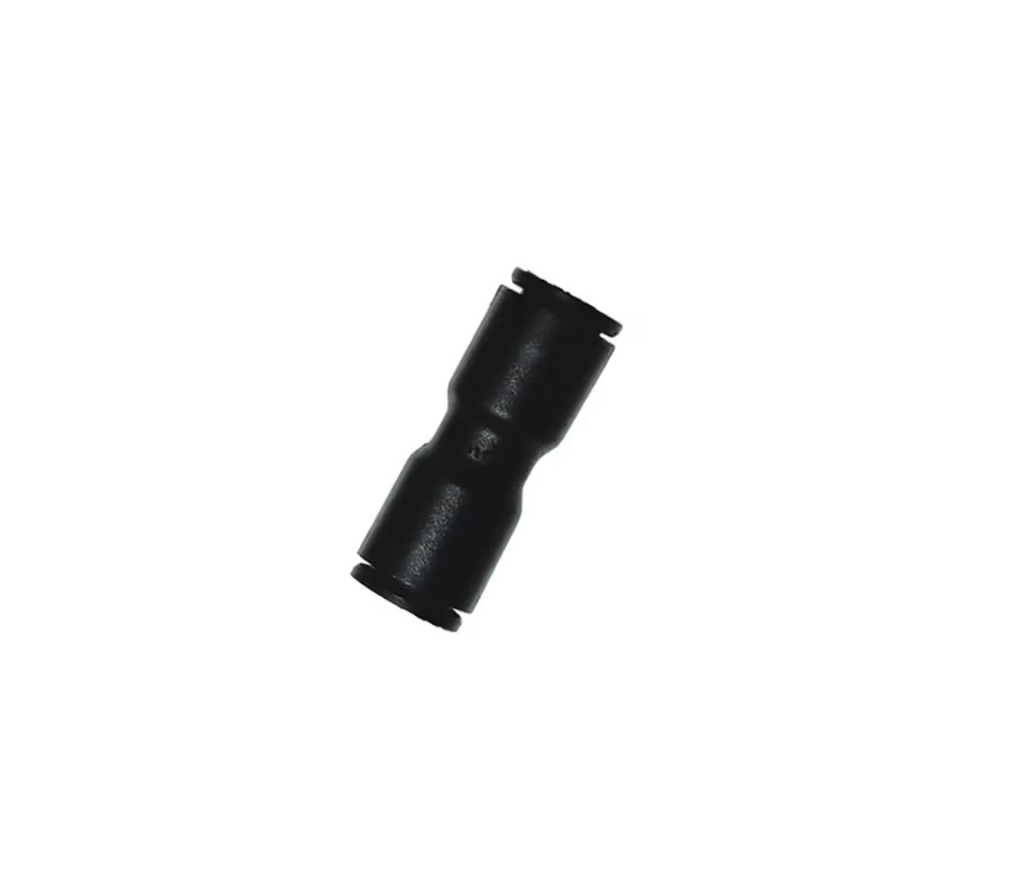

Parker Legris LF3000 8mm - 10mm Tube-to-Tube Connector
Overview
The Parker Legris LF3000 is a straight tube-to-tube connector designed for low-pressure pneumatic and compressed air applications in textile machinery and off-road equipment. This push-in fitting simplifies system assembly by eliminating the need for tools, allowing quick connection and disconnection of 8 mm and 10 mm outer-diameter tubing. Constructed from technical polymer with a stainless steel gripping ring and NBR seals, the connector operates reliably across a temperature range of –20 °C to 80 °C and maintains a vacuum rating of 755 mm-Hg, making it well-suited for both positive pressure and low-vacuum environments. The lightweight design (0.008 kg per unit) reduces system weight whilst delivering robust fluid and gas handling performance. Supplied in packs of 10, this fitting serves industrial automation, textile processing, and process instrument air systems where dependable, tool-free connections are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.008 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | 10 mm Tube O.D. |
| Shape | Straight |
| Application | Robotics, Automotive, Pneumatics, Vacuum, Packaging, Textile |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 2 Type | Tube |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
| Hex Type | n/a |
