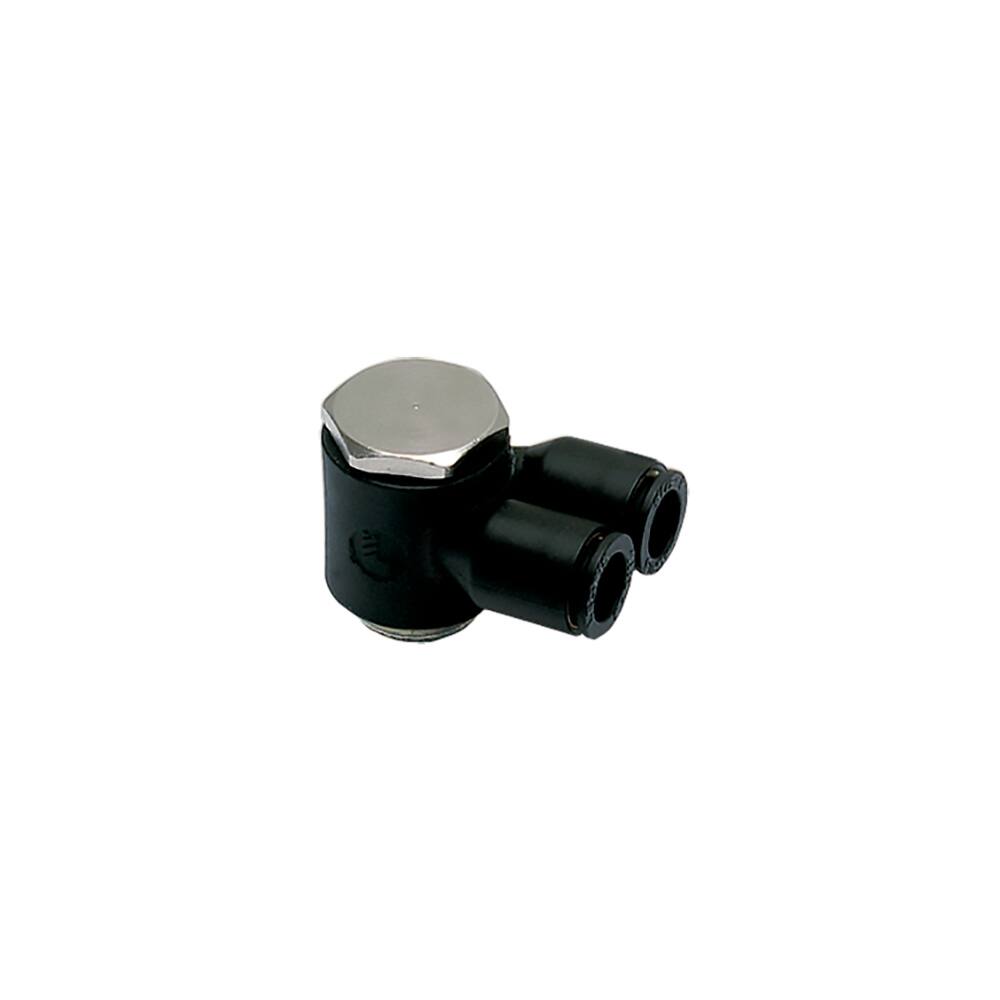

Parker Legris LF3000 8mm-3/8'' Bspp Twin Banjo
Parker Legris LF3000 elbow 90°, 8 mm tube to G 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm–3/8" BSPP Twin Banjo is a push-to-connect elbow fitting designed for compressed air and low-pressure pneumatic applications.
This 90-degree banjo connector simplifies installation in confined spaces where traditional fittings prove awkward or time-consuming. The combination of an 8 mm tube connection and male BSPP 3/8" port allows seamless integration into existing pneumatic networks, whilst the stainless steel gripping ring ensures reliable, leak-free operation across repeated connect–disconnect cycles. Manufactured from technical polymer with NBR seals, the fitting operates reliably between −20 °C and +80 °C, with a vacuum rating of 755 mm-Hg, making it suitable for both positive pressure and suction line applications.
The compact 20 mm hexagon body facilitates easy installation and removal, and each pack contains 10 units for system-wide standardisation. Ideal for transportation, industrial automation, food processing, and instrument air systems where durability and simplicity are paramount.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | BSPP, Male |
| Connection 2 Size | G 3/8 inch Thread |
| Hex Size | 20 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated, Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Automotive, Textile, Robotics, Vacuum, Packaging, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.053 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
