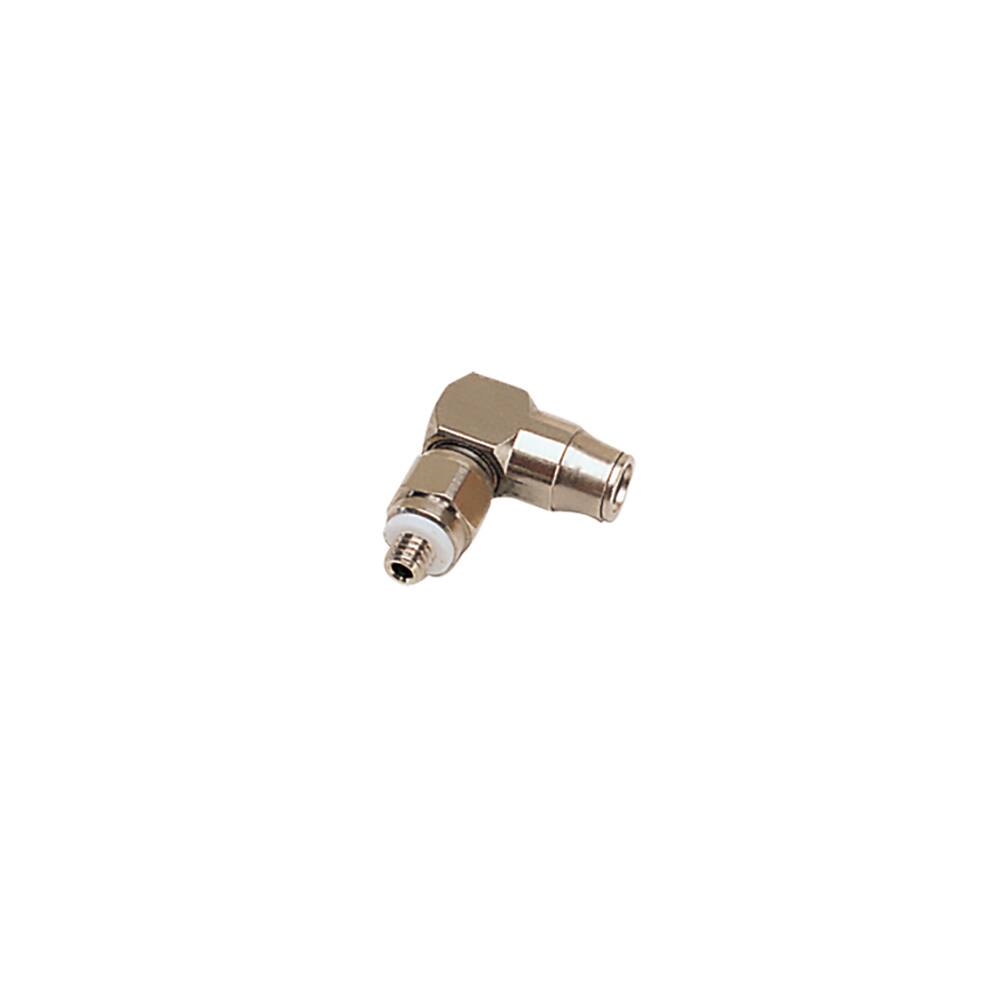

Parker Legris LF3200 3mm - M3 Metric Compact Male Stud Elbow
Overview
The Parker Legris LF3200 3mm – M3 Metric Compact Male Stud Elbow is a push-to-connect fitting designed for space-constrained pneumatic and low-pressure fluid applications where reliable directional changes are essential.
This compact elbow fitting provides reliable performance in systems requiring 90-degree connections without excessive bulk or installation complexity. The push-to-connect design eliminates the need for tools or sealant tape, reducing assembly time and minimising the risk of leaks at connection points. Ideal for instrument air, process automation, and test equipment where quick disconnection and reconnection may be required, this fitting accommodates 3mm tubing whilst offering an M3 metric male thread for secure integration into manifolds and component ports. The nickel-plated brass construction ensures corrosion resistance and durability in varied industrial environments whilst delivering consistent performance across typical pneumatic operating pressures.
Widely specified across industrial automation, food and beverage processing, and general manufacturing applications where pneumatic control systems demand dependable, compact connections.
Specifications
| Maximum Operating Pressure | 18 barg |
|---|---|
| Temperature Range | -15°C to +70°C |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR (O-Ring) |
| Weight | 0.004 kg |
| For Fluid Type | Air (Compressed Air) |
| Product Type | Stud Fittings |
| Quantity per Box | 10 |
| Connection 1 Thread Size | M3x0.5 |
| Connection 2 Tube Outside Diameter | 3 mm (O.D.) |
| Connection 1 Type | Metric |
| Shape | Elbow 90° - Male Stud Adjustable Thread |
| Specifications Met | REACH DI: 1907/2006, RoHS DI: 2011/65/EC, ISO 14743, ATEX DI: 94/9/EC, RoHS DI: 2002/95/EC, PED DI: 97/23/EC |
| Vacuum Pressure Rating | n/a |
| Application | Semiconductor, Vacuum, Robotics, Pneumatics, Textile, Pneumatic Panels |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.16 |
