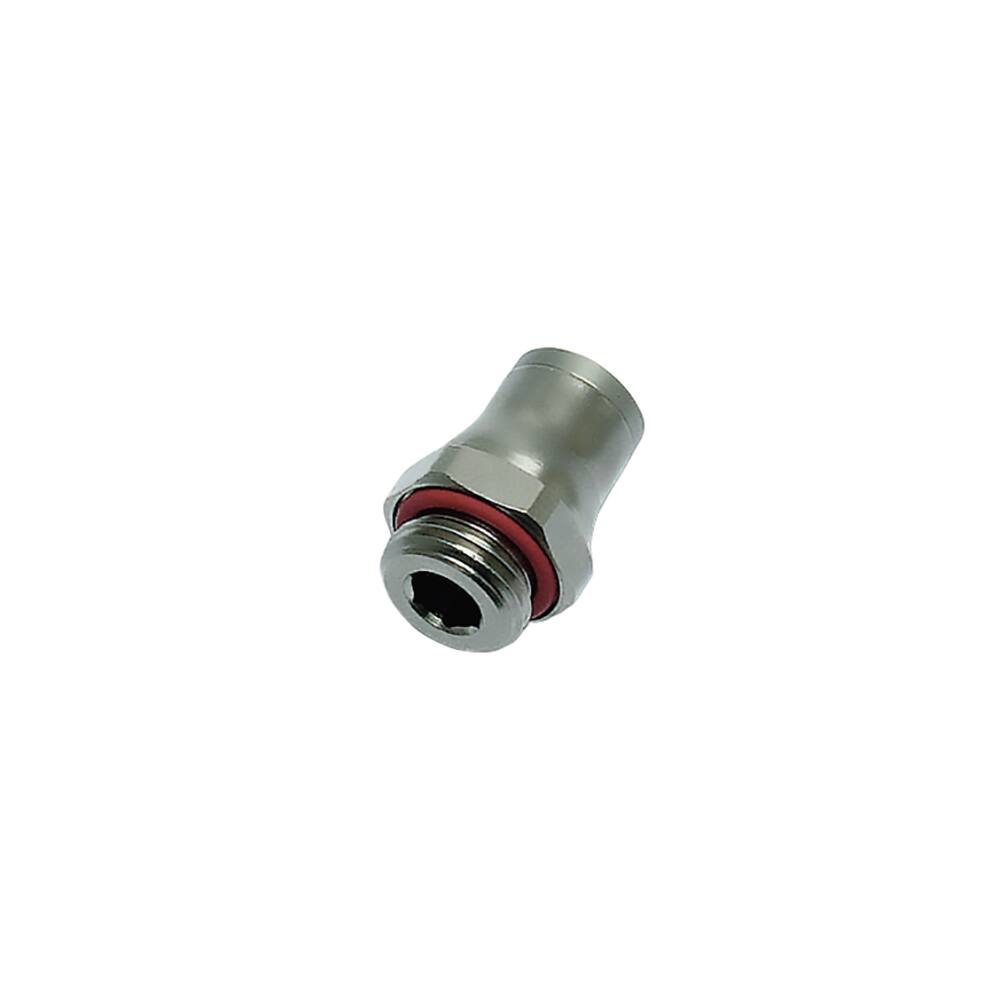

Parker Legris LF3600 10mm - 1/2'' Bspp Male Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect stud fitting designed for in-plant pneumatic applications where quick, reliable connections are essential. This straight fitting joins 10 mm O.D. tubing to a G 1/2 male BSPP port, making it ideal for compressed air systems that require fast assembly without threaded port preparation. The nickel-plated brass body with FKM seals delivers robust performance across a wide operating range of –25 °C to +150 °C, while maintaining a maximum working pressure of 30 bar suitable for most industrial pneumatic circuits. Push-to-connect technology eliminates the need for wrenches or sealant tape, reducing installation time and the risk of leaks at connection points. Supplied in boxes of ten units and certified to ATEX DI 94/9/EC standards, this fitting serves industrial processing, food and beverage production, and instrument air systems where dependable pneumatic control is required.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.043 kg |
| For Fluid Type | Water, Lubricants (Grease), Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | G 1/2 |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Vacuum Pressure Rating | 755 mm-Hg |
| Application | Fluid Control, Transportation, Pneumatic, Process Control, General Industrial, Industrial, Medical, In Plant Pneumatic |
| Specifications Met | REACH, UL 94 V-0 (Please Consult Us), RoHS, EC RG: 1935/2004, FDA 21 CFR, PED, ATEX DI: 94/9/EC |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
