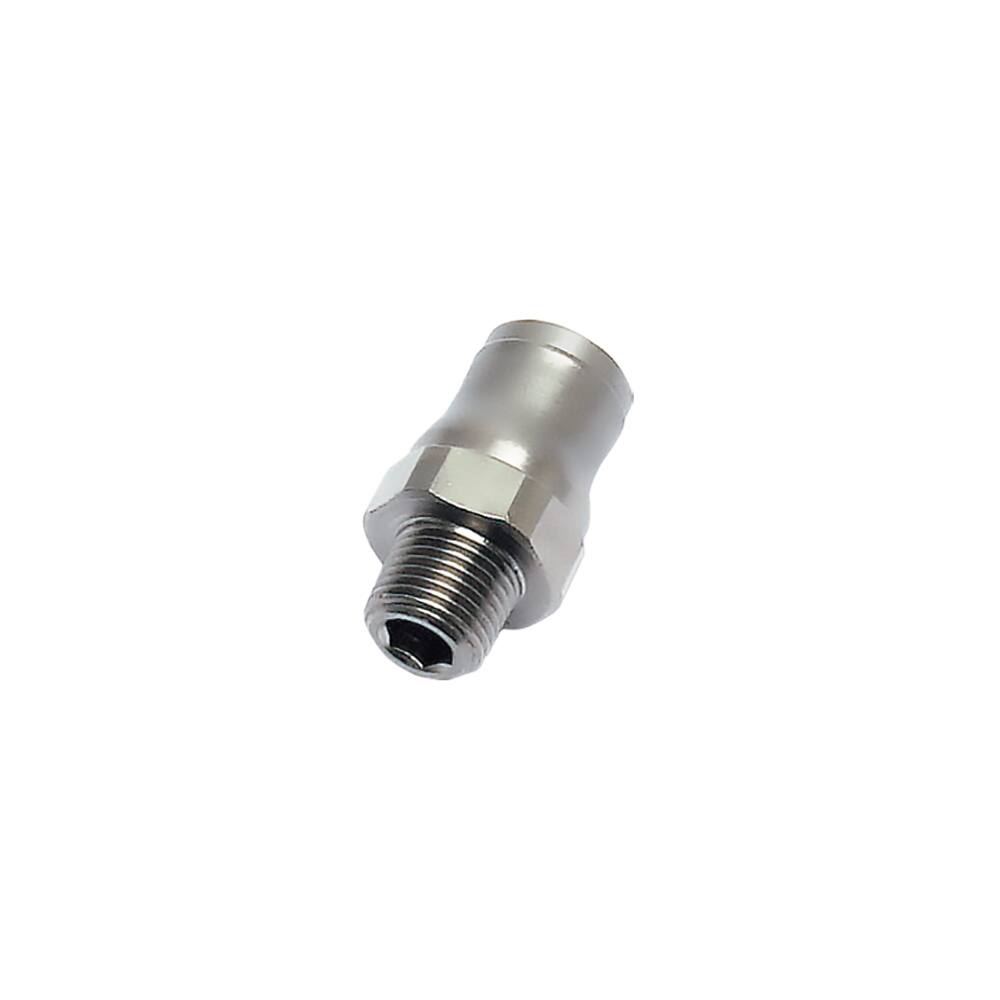

Parker Legris LF3600 10mm - 1/2'' Bspt Male Stud Fitting
Overview
The Parker Legris LF3600 10mm – 1/2" BSPT male stud fitting is a push-to-connect coupling designed for low-pressure grease distribution in welding robots and automated manufacturing equipment.
This straight stud fitting provides reliable tube-to-port connections in pneumatic and fluid handling systems operating between –25 °C and 150 °C. The 10mm tube connection couples directly to a standard R 1/2 male BSPT port, accommodating working pressures up to 30 bar whilst maintaining a vacuum rating of 755 mm-Hg. Constructed from FDA chemical nickel-plated brass with an FKM seal, the fitting delivers corrosion resistance and durability in demanding production environments.
These fittings excel in applications requiring frequent maintenance or repositioning, where push-to-connect simplicity reduces downtime. The compact design integrates seamlessly into confined spaces within automated assembly lines and material handling systems. Supplied in convenient boxes of 10 units, this fitting meets REACH compliance standards.
Ideal for industrial manufacturing, automotive automation, and precision robotics applications requiring safe, leak-free fluid distribution.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.056 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | R 1/2 |
| Connection 2 Type | Male BSPT |
| Shape | Straight |
| Specifications Met | RoHS, UL 94 V-0 (Please Consult Us), ATEX DI: 94/9/EC, EC RG: 1935/2004, PED, FDA 21 CFR (Food), REACH |
| Application | Printing, In-Plant Automotive, Misting, Medical Equipment, Food Processing, Welding Robots |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Type | n/a |
