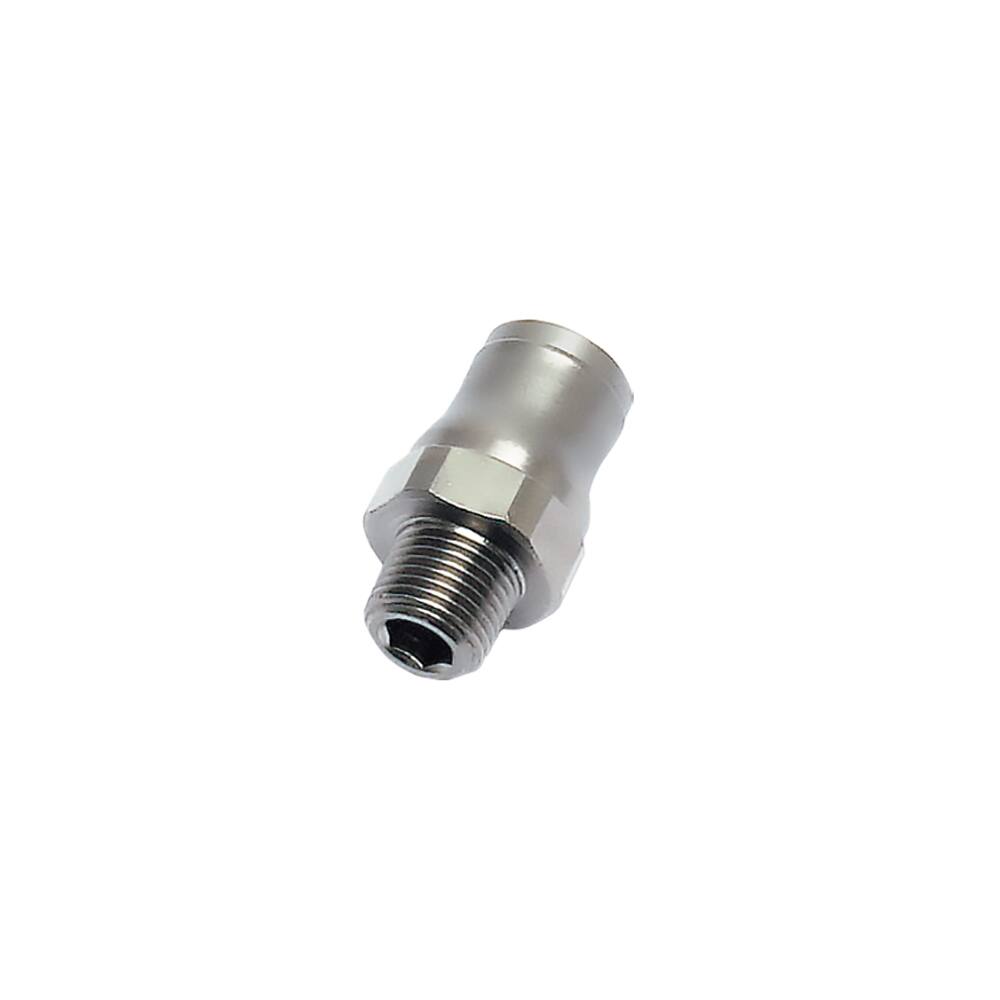

Parker Legris LF3600 8mm - 3/8'' Bspt Male Stud Fitting
Overview
The Parker Legris LF3600 is a straight push-to-connect tube stud fitting designed for misting and low-pressure water applications. This 8 mm to 3/8" BSPT male connector offers reliable, maintenance-free performance in fluid handling systems where quick, tool-free assembly is essential. Constructed from FDA chemical nickel-plated brass with FKM seals, the fitting delivers robust corrosion resistance and hygiene credentials suitable for demanding environments. Operating safely between -25 °C and 150 °C at pressures up to 30 bar, with a vacuum rating of 755 mm Hg, it integrates seamlessly into process instrumentation and low-pressure distribution networks. The compact stud configuration minimises installation footprint whilst maintaining secure, leak-free connections without requiring tools or adjustment. Supplied in boxes of 10, this ATEX-compliant fitting serves life sciences, food and beverage processing, and pneumatic control applications across Europe.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.027 kg |
| For Fluid Type | Air (Compressed Air), Lubricants (Grease), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | R 3/8 |
| Connection 2 Type | Male BSPT |
| Shape | Straight |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Application | Food Processing, Medical Equipment, Welding Robots, In-Plant Automotive, Printing, Misting |
| Specifications Met | RoHS, REACH, FDA 21 CFR (Food), EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), PED, ATEX DI: 94/9/EC |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
