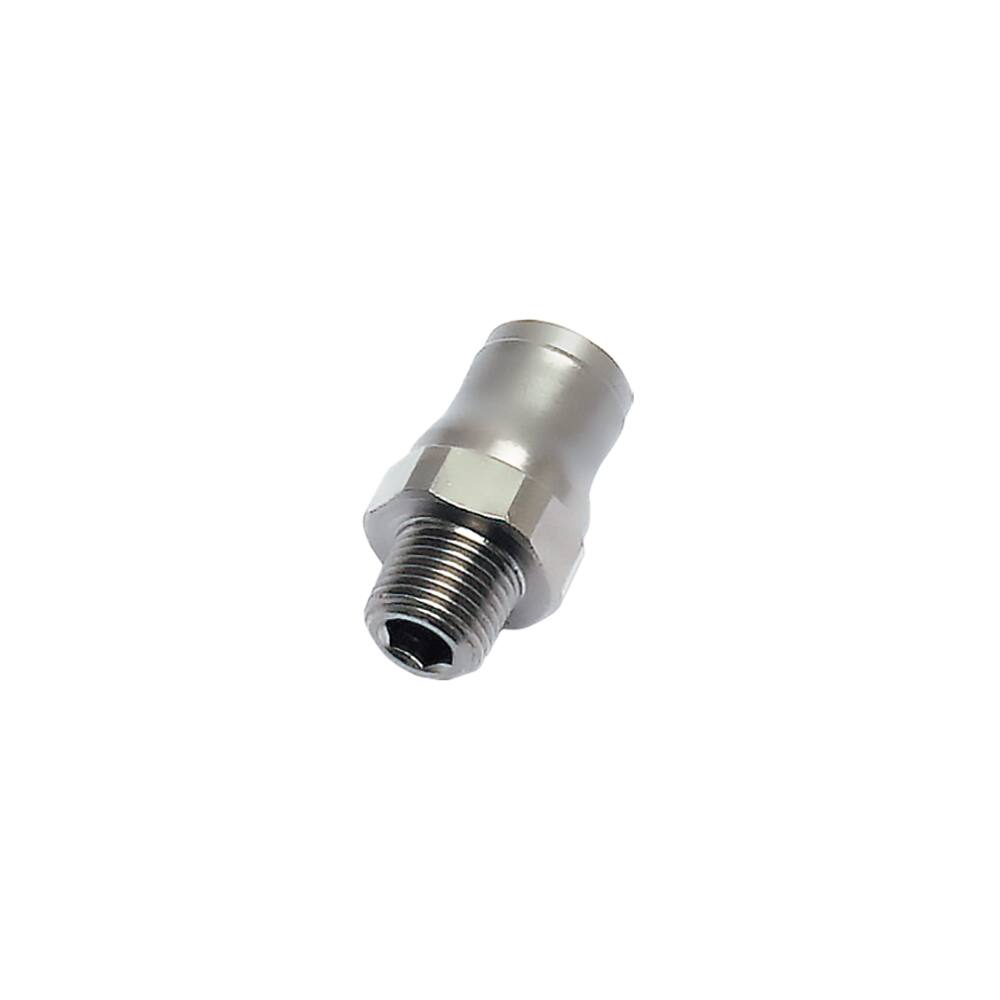

Parker Legris LF3600 12mm - 1/4'' Bspt Male Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect stud fitting designed for food processing and life sciences applications requiring reliable low-pressure fluid transfer.
This straight connector joins 12 mm O.D. tubing to a 1/4" BSPT male port, making it ideal for compact pneumatic and lubrication systems where space and ease of assembly matter. The FDA chemical nickel-plated brass body withstands pressures up to 30 bar and temperatures ranging from –25 °C to 150 °C, whilst the FKM seal ensures compatibility with lubricants and grease-based applications. The push-to-connect design eliminates the need for tools, reducing installation time and maintenance downtime in hygiene-critical environments.
Suitable for food processing, process instrumentation, and regulated life sciences industries where material certification and corrosion resistance are essential requirements.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.033 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | R 1/4 |
| Connection 2 Type | Male BSPT |
| Shape | Straight |
| Connection 3 Type | n/a |
| Specifications Met | EC RG: 1935/2004, FDA 21 CFR, REACH, ATEX DI: 94/9/EC, RoHS, PED, UL 94 V-0 (Please Consult Us) |
| Application | In-Plant Automotive, Welding Robots, Misting, Medical Equipment, Printing, Food Processing |
| Vacuum Pressure Rating | 755 mm-Hg |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
