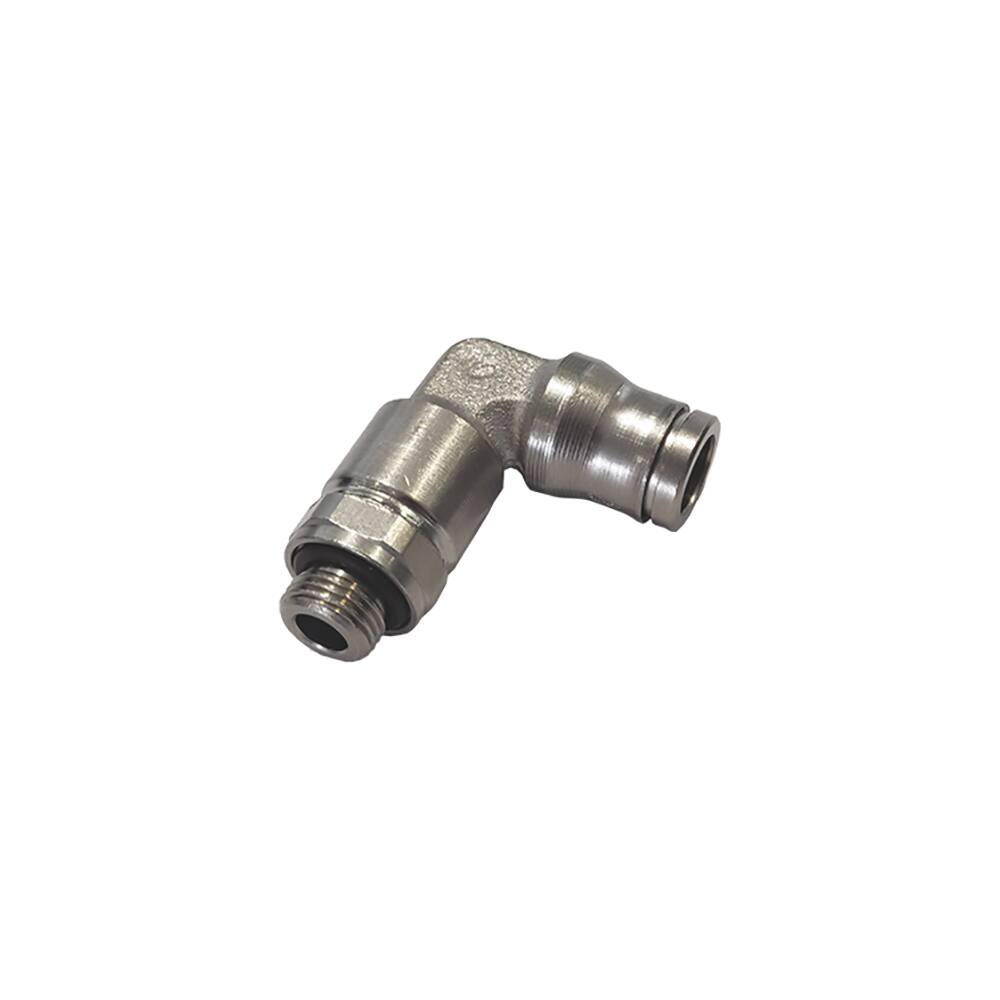

Parker Legris LF3600 10mm - 1/4'' Bspp Male Stud Extended Elbow
Overview
The Parker Legris LF3600 10mm to 1/4'' BSPP male stud extended elbow is a 90° push-to-connect fitting designed for misting and low-pressure fluid distribution applications.
This extended adjustable elbow connector provides reliable performance in pneumatic and lubricant systems where space constraints or directional changes are common. The nickel-plated brass body with FKM seals ensures durability and compatibility with grease-based applications, whilst the tube-to-port configuration allows straightforward integration into existing manifold systems. Operating across a temperature range of –25 °C to 150 °C and rated to 30 bar maximum pressure, the fitting suits both standard pneumatic circuits and controlled low-pressure environments.
The 10mm tube connection accommodates standard polyurethane or nylon tubing, whilst the G 1/4 BSPP port threads directly into component ports without additional adapters. FDA 21 CFR compliance makes this fitting suitable for food production, life sciences instrumentation, and pharmaceutical processing environments where regulatory approval is essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.052 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Male BSPP |
| Shape | Elbow 90° |
| Specifications Met | ATEX DI: 94/9/EC, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us), REACH, PED, FDA 21 CFR (Food) |
| Application | Medical Equipment, Food Processing, Welding Robots, Printing, In-Plant Automotive, Misting |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Connection 3 Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
