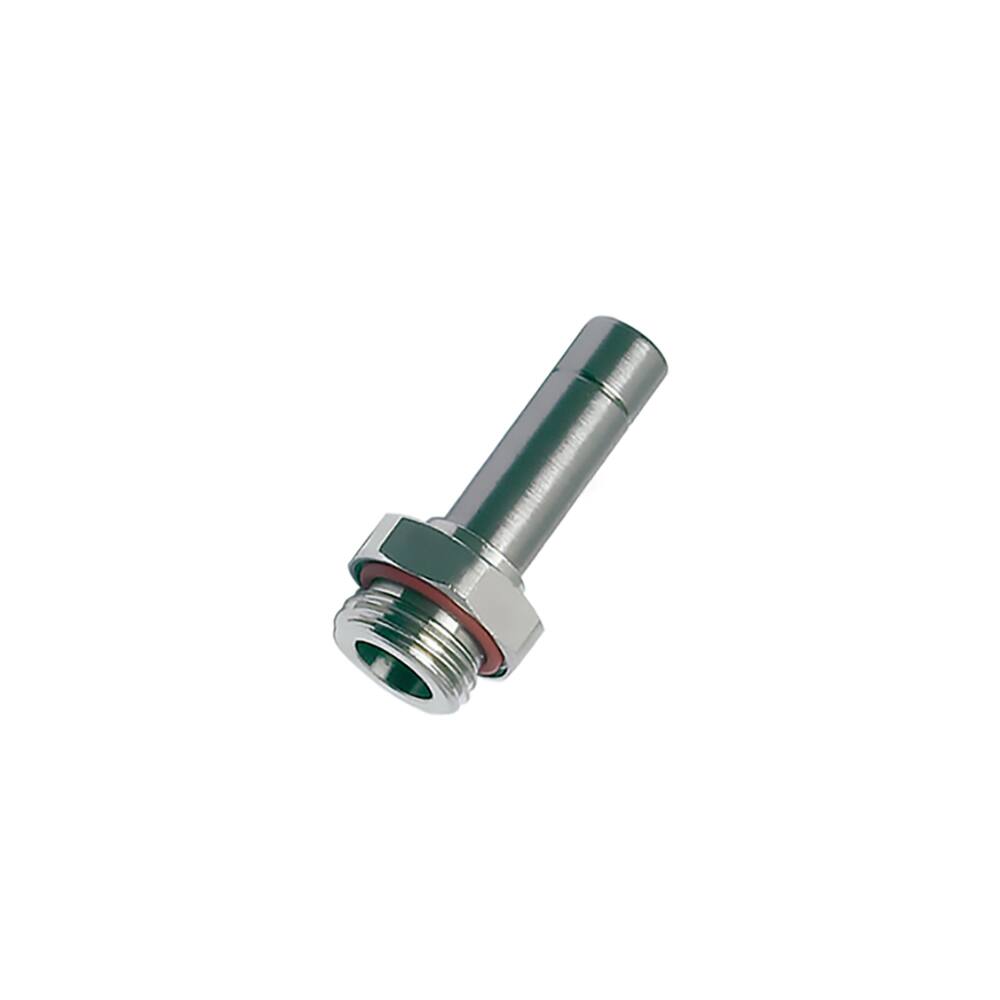

Parker Legris LF3600 10mm - 1/4'' Bspp Male Stud Standpipe
Overview
The Parker Legris LF3600 10mm – 1/4" BSPP Male Stud Standpipe is a straight push-to-connect fitting designed for in-plant pneumatic and low-pressure fluid applications.
This stud fitting provides a reliable, maintenance-free connection between 10mm tubing and 1/4" BSPP male ports. The FDA chemical nickel-plated brass body delivers corrosion resistance and durability across diverse industrial environments, whilst the FKM seals ensure dependable performance across the operating temperature range of –25°C to +150°C. Rated for pressures up to 30 bar and vacuum conditions to 755mm-Hg, this fitting suits general industrial pneumatic systems where quick, tool-free assembly is valued.
The standpipe configuration allows for clean, space-efficient integration into manifolds and control panels, eliminating the need for separate tubing lengths. Supplied in boxes of 10 and meeting PED standards, this fitting serves manufacturing, automation, and process control sectors requiring proven, certified low-pressure connectors.
Specifications
| Connection 2 Type | Male BSPP |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Weight | 0.015 kg |
| Configuration | Tube to Port |
| For Fluid Type | Water |
| Industry | General Industrial |
| Brand | Legris |
| Maximum Operating Temperature | 150 °C |
| Application | In Plant Pneumatic |
| Connection 1 Size | 10 mm (O.D.) |
| Specifications Met | PED |
| Division | Low Pressure Connectors Europe Division |
| Technology | Fluid & Gas Handling |
| Quantity per Box | 10 |
| Shape | Straight |
| Vacuum Pressure Rating | 755 mm-Hg |
| Body Material | Brass, FDA Chemical Nickel-plated |
| Seal Material | FKM |
| Product Type | Push-to-Connect Fittings |
| Connection 3 Type | n/a |
| Connection 2 Size | G 1/4 |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
| Connection 1 Type | Tube |
| Minimum Operating Temperature | -25 °C |
| Product Style | Stud Fitting - Standpipe |
