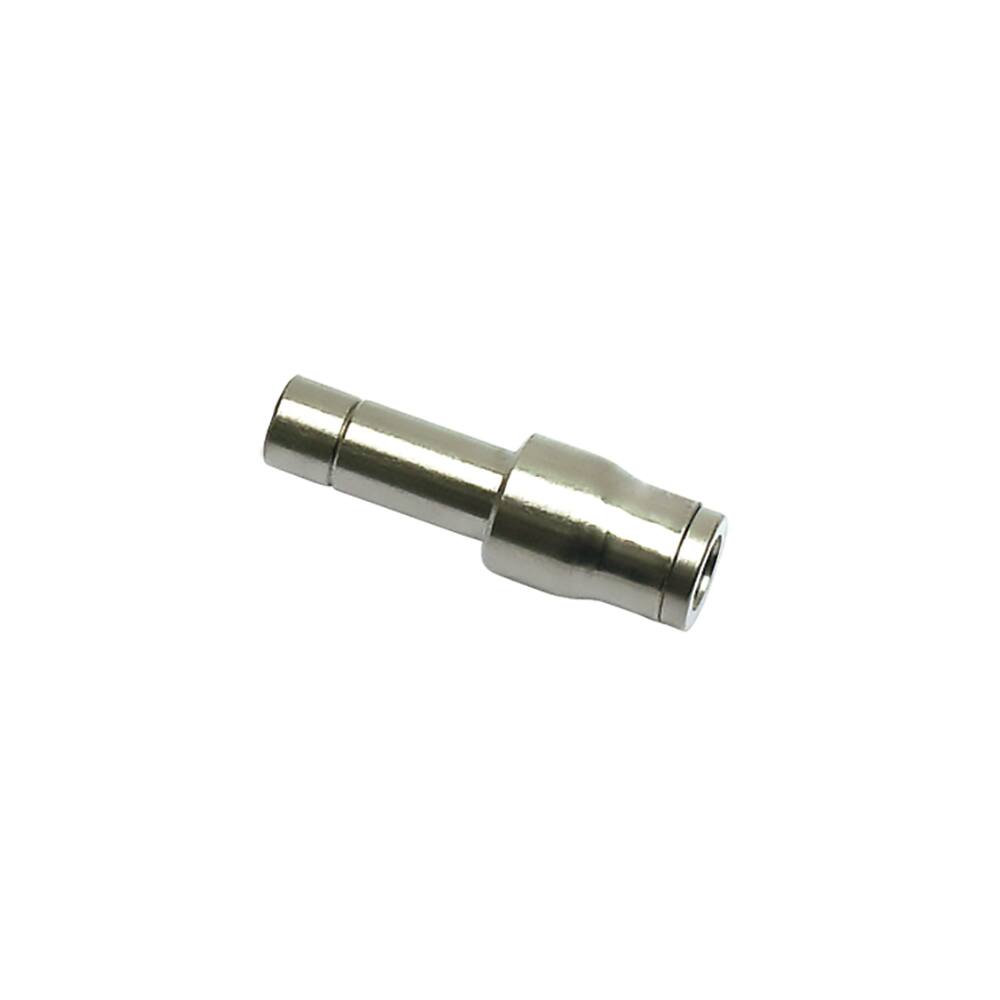

Parker Legris LF3600 10mm - 12mm Plug-In Reducer
Overview
The Parker Legris LF3600 10mm–12mm plug-in reducer is a straight tube-to-tube fitting designed for low-pressure misting applications in life sciences environments. This push-to-connect reducer allows seamless step-down between 10mm and 12mm outer diameter tubing, eliminating the need for threaded connections and reducing assembly time. Manufactured from FDA chemical nickel-plated brass with FKM seals, the fitting delivers reliable performance across a working temperature range of –25°C to 150°C and handles pressures up to 30 bar, whilst maintaining a vacuum rating of 755 mm-Hg for sensitive applications. The nickel plating provides excellent corrosion resistance and chemical compatibility, particularly valuable when handling lubricants and grease in precision equipment. Supplied in boxes of ten units, this compact and lightweight connector (0.026 kg) meets REACH compliance and is ideal for pharmaceutical manufacturing, laboratory automation, and process control systems where hygienic, tool-free connections are essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.026 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Tube |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 12 mm (O.D.) |
| Connection 2 Type | Tube |
| Specifications Met | FDA 21 CFR (Food), ATEX DI: 94/9/EC, PED, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, RoHS, REACH |
| Connection 3 Type | n/a |
| Application | Medical Equipment, Welding Robots, Food Processing, In-Plant Automotive, Printing, Misting |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Shape | Straight |
