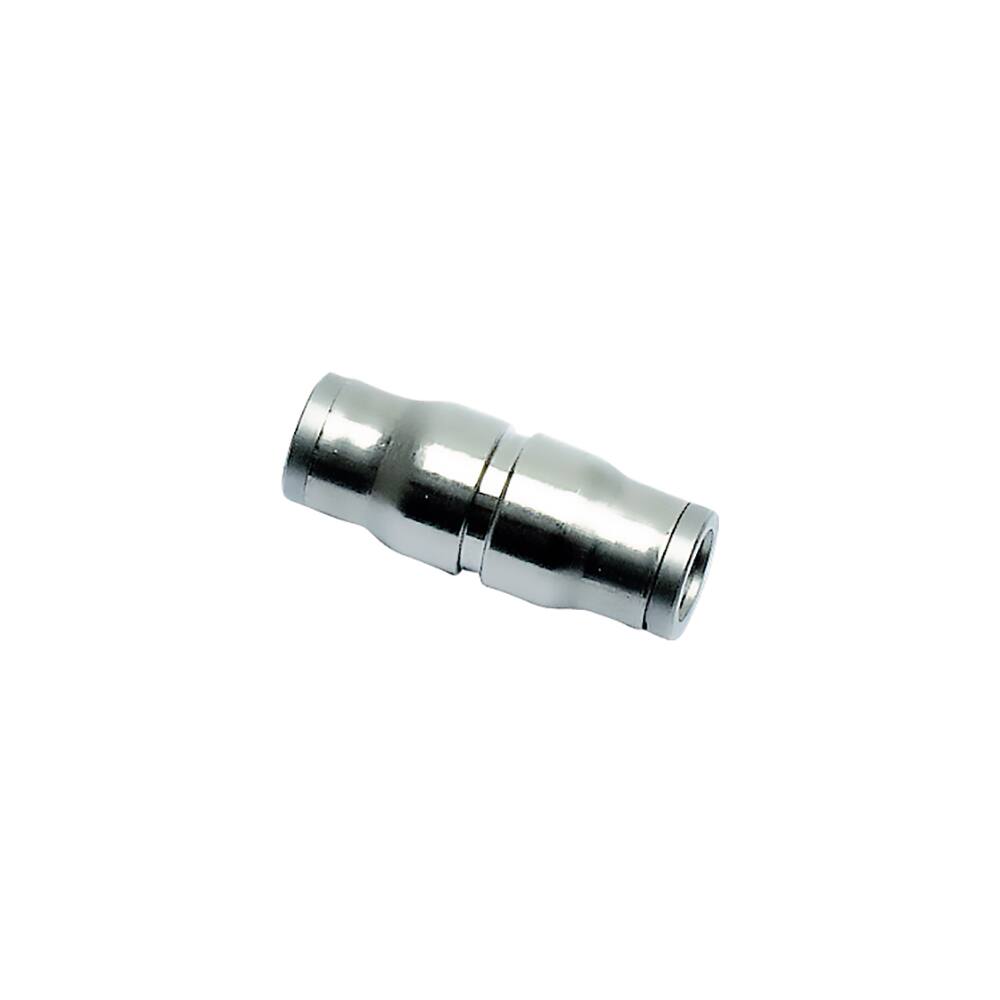

Parker Legris LF3600 10mm Equal Tube-to-Tube Connector
Overview
The Parker Legris LF3600 10mm Equal Tube-to-Tube Connector is a push-to-connect fitting designed for low-pressure water and pneumatic applications in transportation systems.
This straight connector simplifies installation in confined spaces where quick assembly is essential, eliminating the need for tools or additional sealing compounds. The equal 10mm tube connections on both sides allow seamless integration into existing pneumatic and fluid line networks, whilst the FDA-approved chemical nickel-plated brass body ensures reliable performance in diverse operating environments. Engineered to withstand pressures up to 30 bar with a working temperature range of -25°C to 150°C, this fitting delivers consistent performance across demanding applications. The FKM seal material provides excellent chemical resistance and durability, meeting RoHS compliance standards for modern industrial specifications. Supplied in convenient boxes of 10 units, this connector supports efficient inventory management and rapid system expansion.
Ideal for transportation, process control, and pneumatic automation sectors requiring dependable low-pressure fluid handling solutions.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.034 kg |
| For Fluid Type | Air (Compressed Air), Lubricants (Grease), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 10 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Straight |
| Specifications Met | FDA 21 CFR, ATEX DI: 94/9/EC, PED, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), REACH, RoHS |
| Application | Medical, Industrial, General Industrial, Fluid Control, Process Control, Pneumatic, In Plant Pneumatic, Transportation |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
