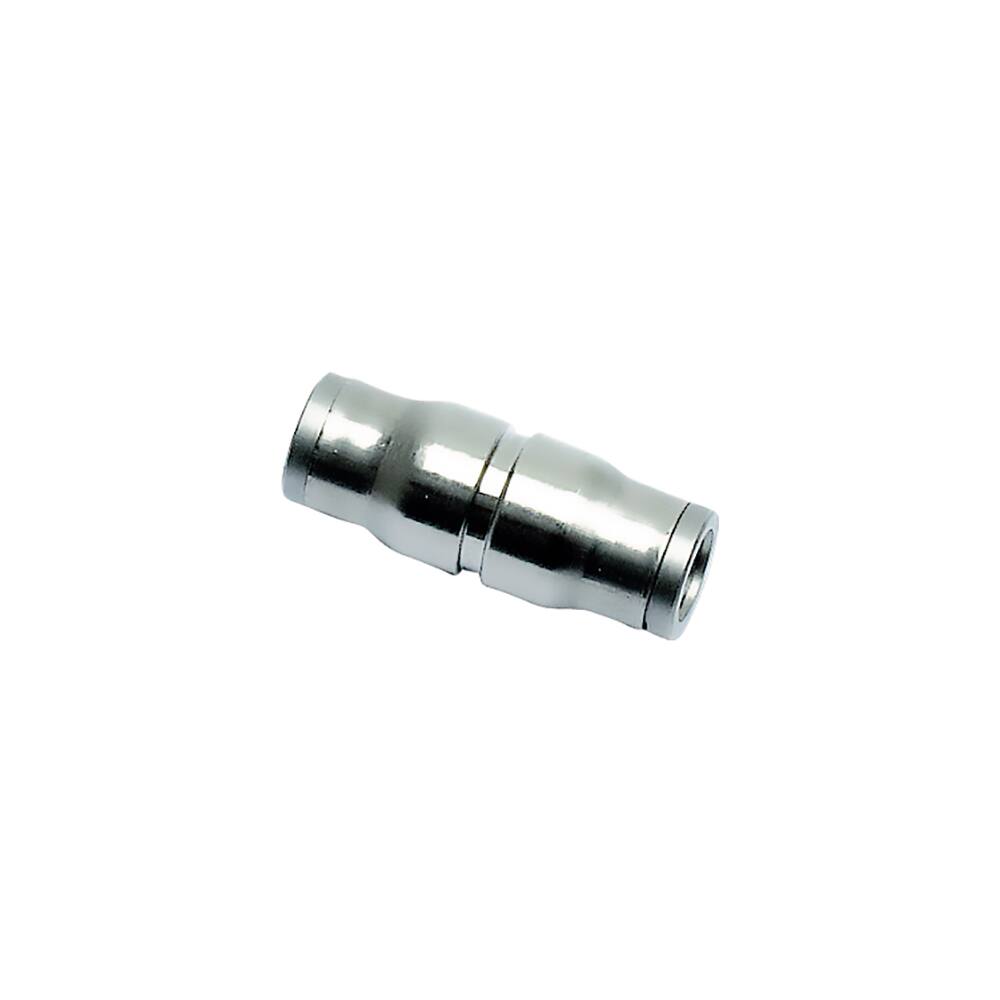

Parker Legris LF3600 8mm Equal Tube-to-Tube Connector
Overview
The Parker Legris LF3600 is an 8mm equal tube-to-tube connector designed for compressed air and general industrial pneumatic applications. This straight push-to-connect fitting enables quick, tool-free assembly and disconnection of tubing in low-pressure fluid systems, reducing installation time and minimising downtime during maintenance or reconfiguration. The connector accommodates 8mm outer diameter tubing at both ends and operates reliably across a temperature range of -25 °C to 150 °C, with a maximum working pressure of 30 bar and vacuum rating of 755 mm-Hg. The body is constructed from brass with FDA chemical nickel plating for enhanced corrosion resistance, whilst the FKM seal material ensures durable, leak-free performance in demanding environments. Supplied in boxes of ten units, this fitting is commonly used across healthcare and life sciences, industrial automation, food and beverage processing, and instrument air systems.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.021 kg |
| For Fluid Type | Water, Lubricants (Grease), Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | 8 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Straight |
| Coating | FDA Chemical Nickel-plated |
| Application | Fluid Control, Process Control, Transportation, Pneumatic, Medical, Industrial, In Plant Pneumatic, General Industrial |
| Vacuum Pressure Rating | 755 mm-Hg |
| Specifications Met | FDA 21 CFR, ATEX DI: 94/9/EC, REACH, PED, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us) |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
