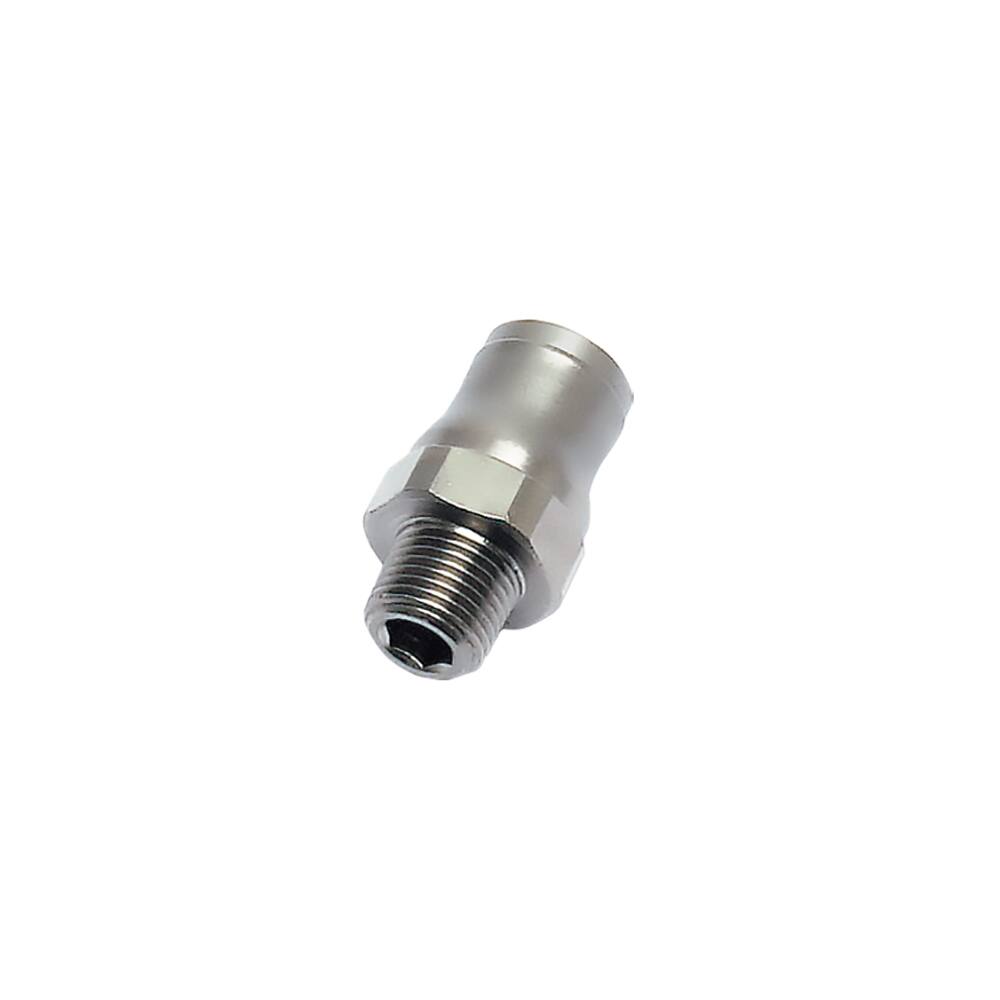

Parker Legris LF3600 8mm - 1/8'' Bspt Male Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect stud fitting designed for reliable tube-to-port connections in low-pressure pneumatic and fluid handling applications, particularly in automotive manufacturing environments.
This straight fitting joins 8 mm O.D. tubing to a 1/8" BSPT male thread, making it ideal for compact installations where space is limited. The nickel-plated brass body withstands pressures up to 30 bar and temperatures from −25 °C to 150 °C, whilst the FKM seal provides compatibility with lubricants and greases commonly used in plant systems. The push-to-connect design enables tool-free assembly and disassembly, reducing installation time and maintenance downtime.
Supplied in boxes of ten units, this RoHS-compliant fitting meets stringent standards for life sciences and automotive applications where durability and consistent performance are essential. Whether specified for process air systems, lubrication distribution, or instrument control lines, the LF3600 delivers dependable service across manufacturing, automotive production, and regulated industrial environments.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.015 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | R 1/8 |
| Connection 2 Type | Male BSPT |
| Shape | Straight |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Application | Food Processing, Printing, Welding Robots, Misting, Medical Equipment, In-Plant Automotive |
| Coating | FDA Chemical Nickel-plated |
| Specifications Met | PED, UL 94 V-0 (Please Consult Us), FDA 21 CFR, REACH, ATEX DI: 94/9/EC, EC RG: 1935/2004, RoHS |
| Connection 3 Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
Documents
