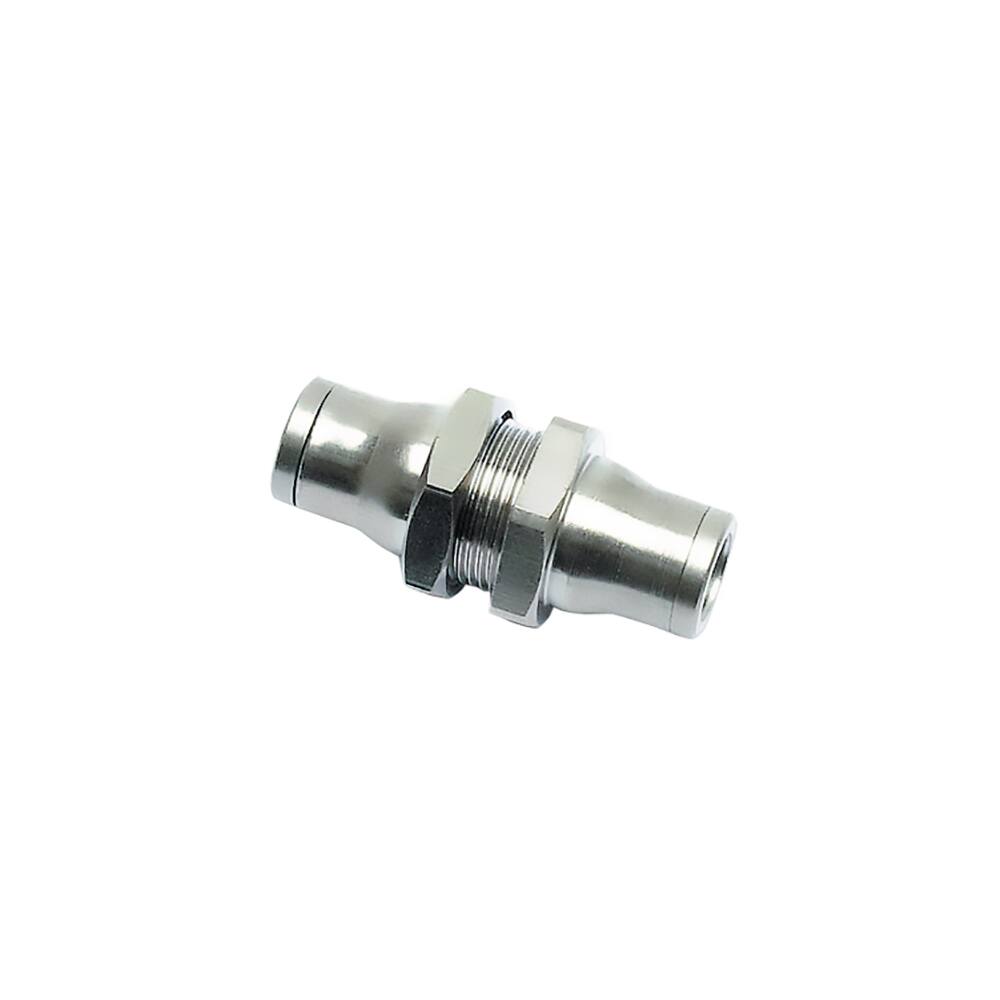

Parker Legris LF3600 12mm Equal Bulkhead Connector
Overview
The Parker Legris LF3600 12mm Equal Bulkhead Connector is a push-to-connect fitting designed for low-pressure fluid and gas applications in industrial settings. This straight-through tube-to-tube connector enables quick, tool-free connections without the need for threading or crimping, making it ideal for system assembly, modification and maintenance work. With a rated working pressure of 30 bar and operating temperature range from −25 °C to 150 °C, the connector delivers reliable performance across a broad spectrum of conditions. Constructed from FDA chemical nickel-plated brass with FKM seals, it meets FDA 21 CFR requirements and suits applications requiring food-contact compliance. The 12mm outer diameter tubing interface accommodates standard low-pressure pneumatic and water transfer lines whilst maintaining vacuum integrity to 755 mm-Hg. Supplied in boxes of five units, this connector serves healthcare, life sciences, industrial automation and process control sectors where dependable, hygienic fluid handling is essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.062 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Tube |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | 12 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Straight |
| Coating | FDA Chemical Nickel-plated |
| Application | Transportation, Pneumatic, Medical, General Industrial, Fluid Control, In Plant Pneumatic, Process Control, Industrial |
| Vacuum Pressure Rating | 755 mm-Hg |
| Specifications Met | RoHS, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, REACH, PED, FDA 21 CFR |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Connection 3 Type | n/a |
