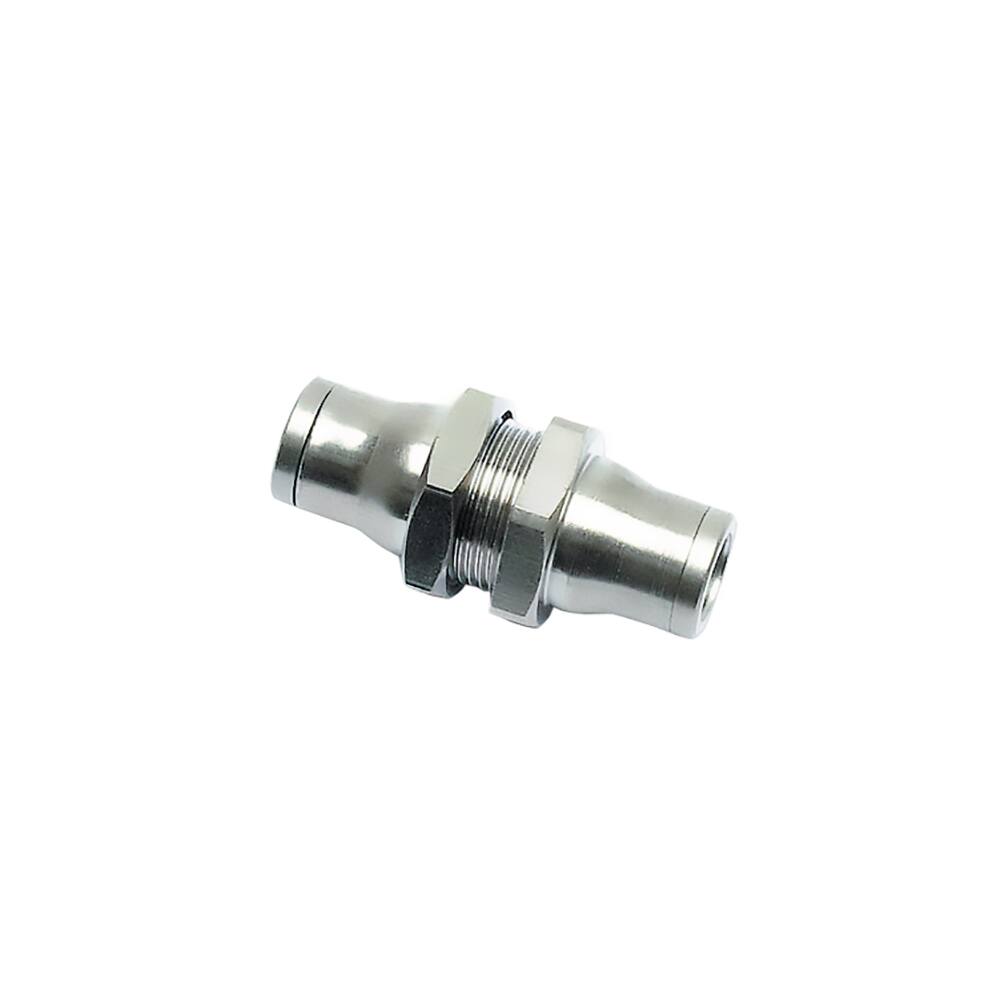

Parker Legris LF3600 10mm Equal Bulkhead Connector
Overview
The Parker Legris LF3600 10mm Equal Bulkhead Connector is a push-to-connect fitting designed for in-plant pneumatic and low-pressure water applications where reliable tube-to-tube connections are essential.
This straight bulkhead connector simplifies installation in confined spaces and panel-mounted applications, eliminating the need for threaded adapters whilst maintaining secure, leak-free joints. The equal 10mm outer diameter ports on both sides accommodate standard tubing, making it compatible with existing pneumatic systems across multiple industries. Constructed from FDA chemical nickel-plated brass with FKM seals, the connector delivers robust performance across a temperature range of -25°C to 150°C and withstands working pressures to 30 bar, whilst also handling vacuum conditions down to 755 mm-Hg.
The push-to-connect design enables tool-free assembly and disassembly, reducing downtime during maintenance and system reconfiguration. Supplied in boxes of ten units, this fitting meets REACH compliance and is ideal for industrial processing, automation, food and beverage, and instrument air applications.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.063 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 10 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Straight |
| Application | Medical, Transportation, Pneumatic, Industrial, General Industrial, Process Control, Fluid Control, In Plant Pneumatic |
| Vacuum Pressure Rating | 755 mm-Hg |
| Specifications Met | FDA 21 CFR, RoHS, PED, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), ATEX DI: 94/9/EC, REACH |
| Connection 3 Type | n/a |
| Coating | FDA Chemical Nickel-plated |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
