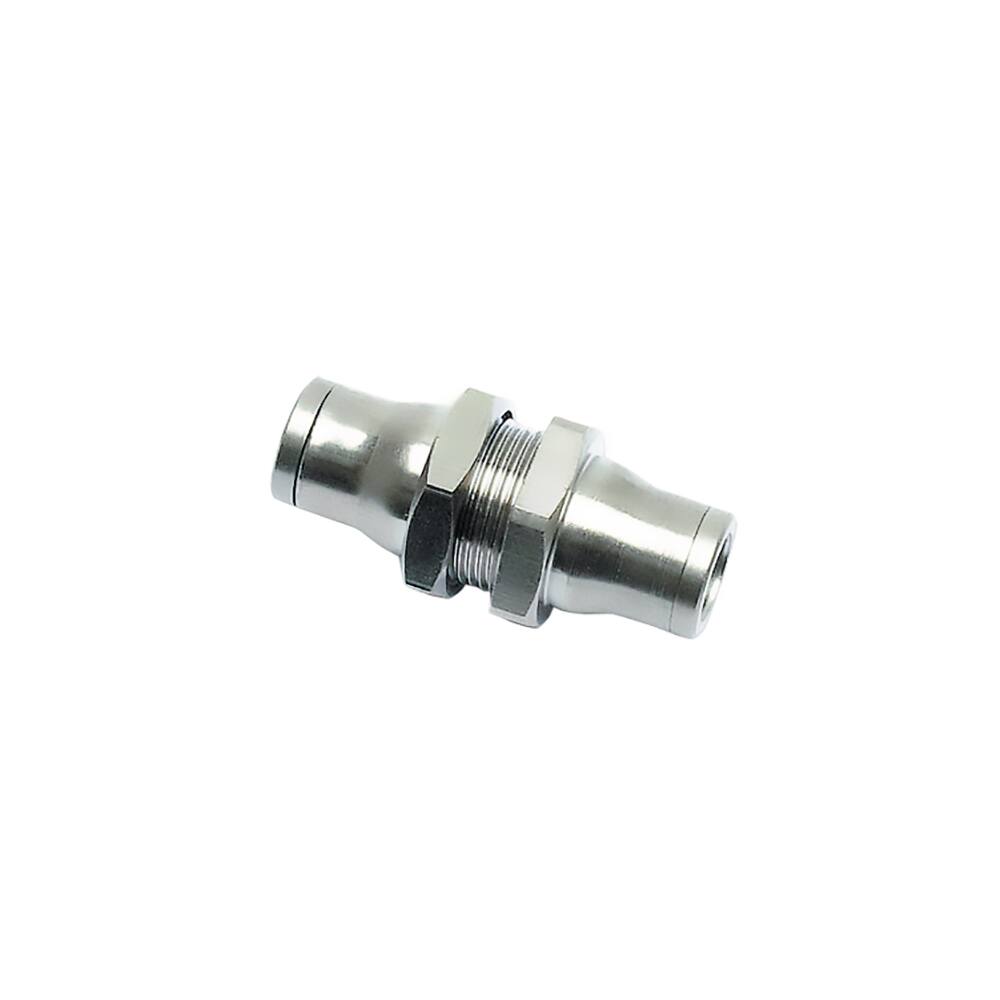

Parker Legris LF3600 8mm Equal Bulkhead Connector
Overview
The Parker Legris LF3600 8mm Equal Bulkhead Connector is a push-to-connect fitting designed for compressed air distribution in plant pneumatic systems and process control applications.
This tube-to-tube connector simplifies installation in space-constrained environments where bulkhead mounting is required. The equal 8mm outer diameter ports accommodate standard polyurethane and nylon tubing, whilst the straight configuration ensures efficient airflow without dead legs. Rated to 30 bar maximum operating pressure and capable of withstanding vacuum conditions down to 755 mm-Hg, this fitting reliably handles fluctuating demands across instrument and general plant air networks operating between −25 °C and 150 °C.
Manufactured from FDA-approved chemical nickel-plated brass with FKM seals, the LF3600 resists corrosion and ensures repeatability across thousands of connect-disconnect cycles. The PED-compliant design eliminates the need for tools or adapters, reducing maintenance time and training requirements. Supplied in boxes of ten, this connector serves transportation facilities, food processing, automotive assembly lines, and other industrial sectors requiring dependable low-pressure fluid handling.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.036 kg |
| For Fluid Type | Water, Lubricants (Grease), Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | 8 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Straight |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Application | Fluid Control, Process Control, Pneumatic, Medical, Industrial, General Industrial, Transportation, In Plant Pneumatic |
| Specifications Met | RoHS, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), ATEX DI: 94/9/EC, REACH, FDA 21 CFR, PED |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
