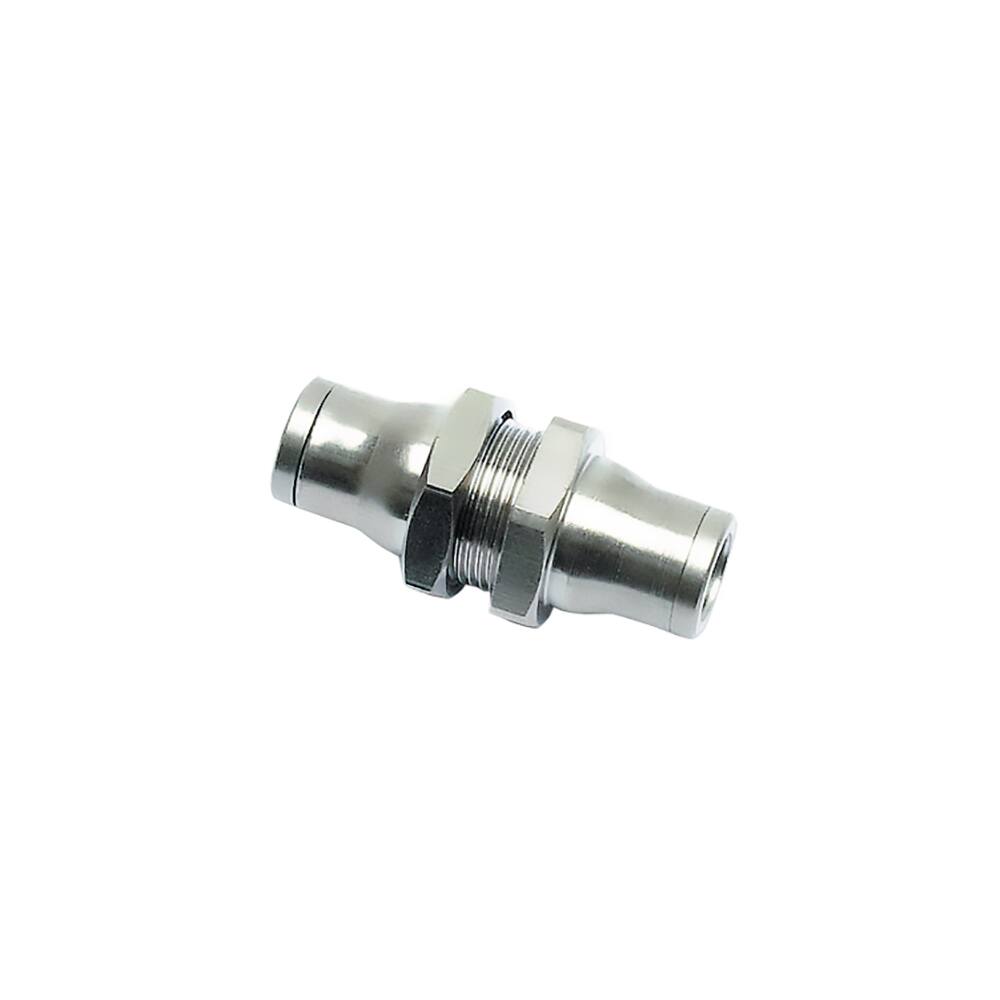

Parker Legris LF3600 6mm Equal Bulkhead Connector
Overview
The Parker Legris LF3600 6mm Equal Bulkhead Connector is a push-to-connect fitting designed for in-plant pneumatic applications requiring reliable tube-to-tube connections.
This straight connector simplifies assembly in compressed air systems by eliminating the need for threaded connections. The push-to-connect design reduces installation time whilst maintaining secure, leak-free performance across a wide operating range. The 6mm outer diameter tubing accepts both inlet and outlet connections, making it ideal for straightforward pneumatic layouts where space and accessibility are considerations.
Manufactured from FDA chemical nickel-plated brass with FKM seals, the fitting delivers robust performance in industrial environments. It operates reliably at pressures up to 30 bar and temperatures between −25 °C and 150 °C, accommodating both routine compressed air distribution and more demanding process applications. The vacuum rating of 755 mm-Hg enables use in systems requiring partial pressure conditions. Supplied in boxes of ten, this REACH-compliant connector serves manufacturing facilities, process control systems, and automated production lines across industrial processing operations.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.028 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | 6 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Straight |
| Vacuum Pressure Rating | 755 mm-Hg |
| Specifications Met | EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), RoHS, PED, ATEX DI: 94/9/EC, FDA 21 CFR, REACH |
| Application | Fluid Control, Pneumatic, Process Control, Transportation, Industrial, General Industrial, Medical, In Plant Pneumatic |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Type | n/a |
