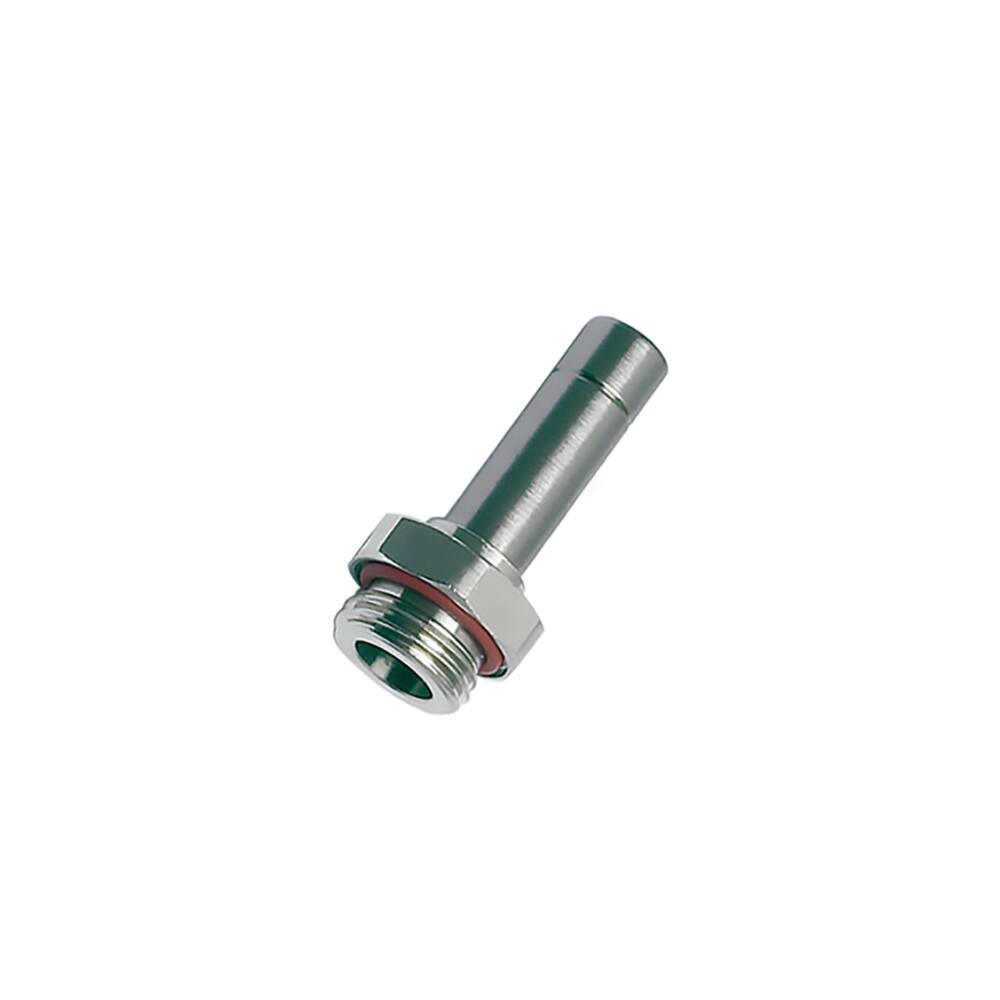

Parker Legris LF3600 14mm - 1/2'' Bspp Male Stud Standpipe
Overview
The Parker Legris LF3600 is a 14mm push-to-connect standpipe fitting designed for low-pressure fluid and lubricant distribution in general industrial applications. This straight stud fitting provides a reliable tube-to-port connection that simplifies assembly and reduces installation time across pneumatic systems and grease-lubrication networks. The nickel-plated brass body delivers excellent durability and corrosion resistance, whilst the FKM seal ensures dependable performance across a wide temperature range from −25 °C to 150 °C. Rated for pressures up to 30 bar with a vacuum capability of 755 mm-Hg, this fitting handles both standard and low-pressure operations with confidence. The G 1/2 BSPP male thread integrates seamlessly into existing port configurations, making it ideal for retrofit and new installations alike. Supplied in packs of ten, this fitting serves transportation, industrial automation, and process control sectors where efficient fluid handling and quick-connect convenience are essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.033 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 14 mm (O.D.) |
| Connection 2 Size | G 1/2 |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Connection 3 Size | n/a |
| Application | Medical, Transportation, Fluid Control, Industrial, Process Control, Pneumatic, In Plant Pneumatic, General Industrial |
| Specifications Met | PED, REACH, RoHS, UL 94 V-0 (Please Consult Us), FDA 21 CFR (Food), ATEX DI: 94/9/EC, EC RG: 1935/2004 |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Coating | FDA Chemical Nickel-plated |
