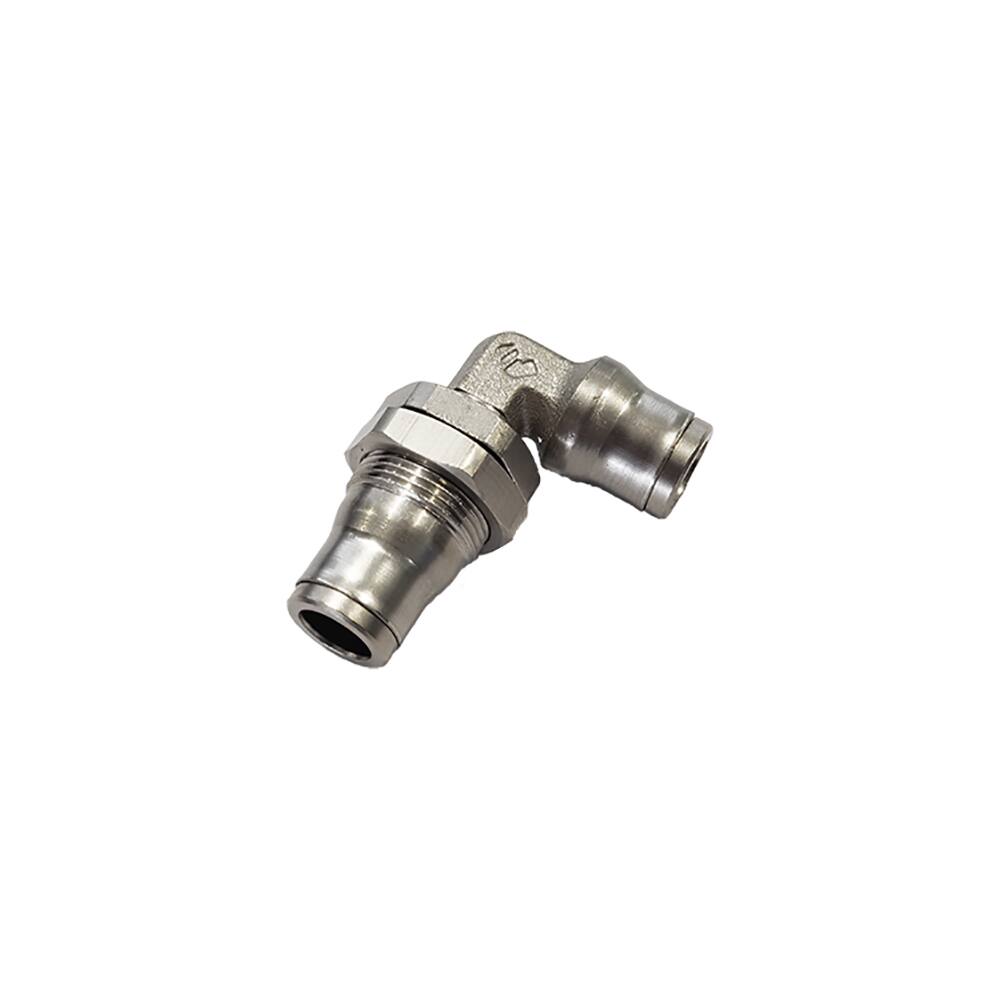

Parker Legris LF3600 14mm Equal Bulkhead Elbow
Overview
The Parker Legris LF3600 14mm Equal Bulkhead Elbow is a push-to-connect fitting designed for process control applications in general industrial pneumatic and low-pressure fluid systems.
This 90° elbow fitting simplifies installation in space-constrained applications where tubing must change direction at a bulkhead mounting point. The tube-to-tube configuration accommodates 14mm outer diameter tubing on both connections, making it ideal for straightforward system layouts. Constructed from FDA chemical nickel-plated brass with FKM seals, the fitting delivers robust corrosion resistance and compatibility with lubricants and greases across a wide operating window from −25 °C to 150 °C. Its 20 bar maximum working pressure and 755 mm-Hg vacuum rating suit low-pressure control circuits where reliability and leak-free operation are essential. The fitting meets PED specifications, ensuring compliance with pressure equipment directives.
This connector serves process automation, fluid handling, and instrumentation sectors across manufacturing, food processing, and general industrial environments.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.144 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Tube |
| Connection 1 Size | 14 mm (O.D.) |
| Connection 2 Size | 14 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Elbow 90° |
| Application | General Industrial, Transportation, Fluid Control, Medical, Pneumatic, In Plant Pneumatic, Industrial, Process Control |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
| Specifications Met | RoHS, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), ATEX DI: 94/9/EC, REACH, FDA 21 CFR (Food), PED |
| Connection 1 Type | Tube |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
