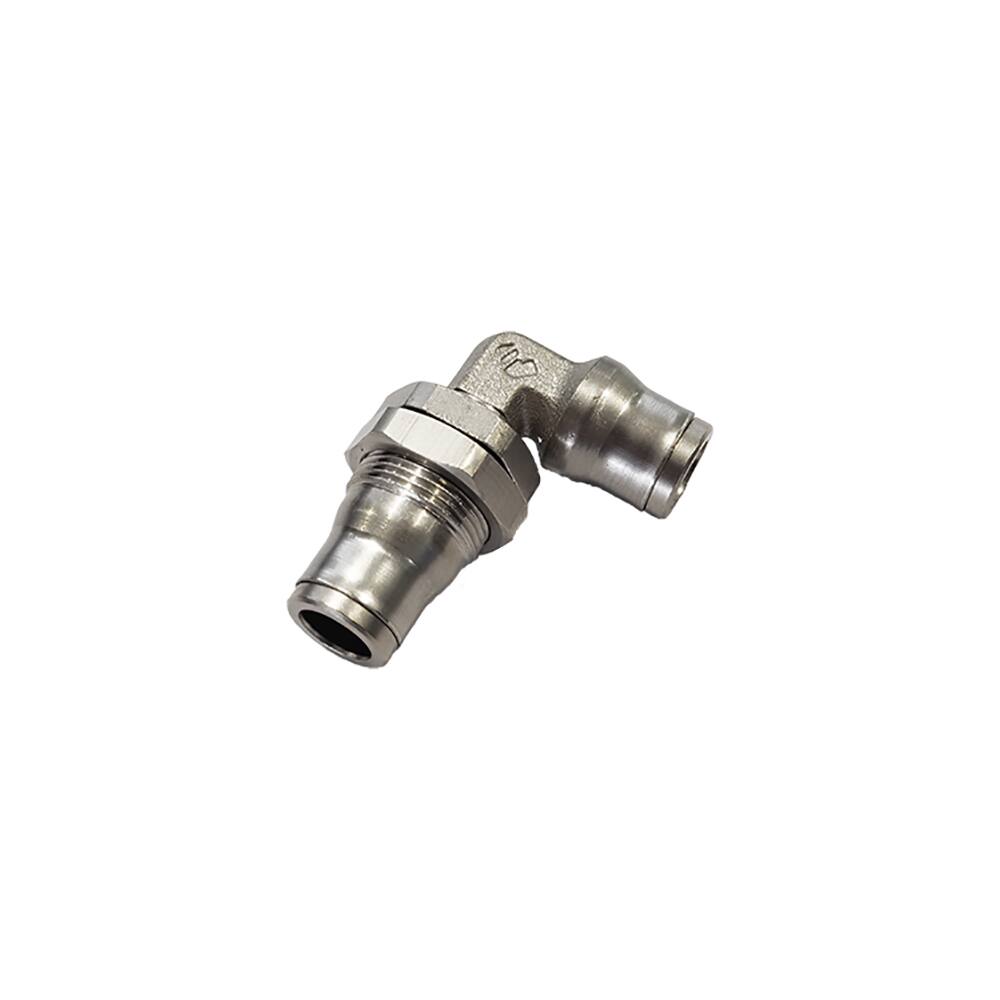

Parker Legris LF3600 8mm Equal Bulkhead Elbow
Overview
The Parker Legris LF3600 8mm Equal Bulkhead Elbow is a push-to-connect fitting designed for compressed air applications in general industrial pneumatic systems.
This 90° elbow connector enables reliable tube-to-tube joins in confined spaces where panel or bulkhead mounting is required. The equal 8mm outer diameter ports simplify inventory management and installation, whilst the nickel-plated brass body with FKM seals delivers consistent performance across demanding environments. Rated to 20 bar maximum operating pressure and suitable for temperatures from –25°C to 150°C, the fitting accommodates both standard compressed air and low-pressure fluid handling with minimal pressure drop.
The push-to-connect design eliminates the need for tools or thread sealant, reducing assembly time on the shop floor. Supplied in boxes of 10 units and meeting FDA 21 CFR chemical contact standards, this fitting is ideal for food & beverage processing, pharmaceutical manufacturing, and general industrial automation where hygiene and regulatory compliance matter.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.046 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | 8 mm (O.D.) |
| Connection 2 Type | Tube |
| Shape | Elbow 90° |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
| Application | In Plant Pneumatic, Transportation, Pneumatic, Process Control, Fluid Control, Industrial, Medical, General Industrial |
| Specifications Met | PED, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us), ATEX DI: 94/9/EC, REACH, FDA 21 CFR |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
