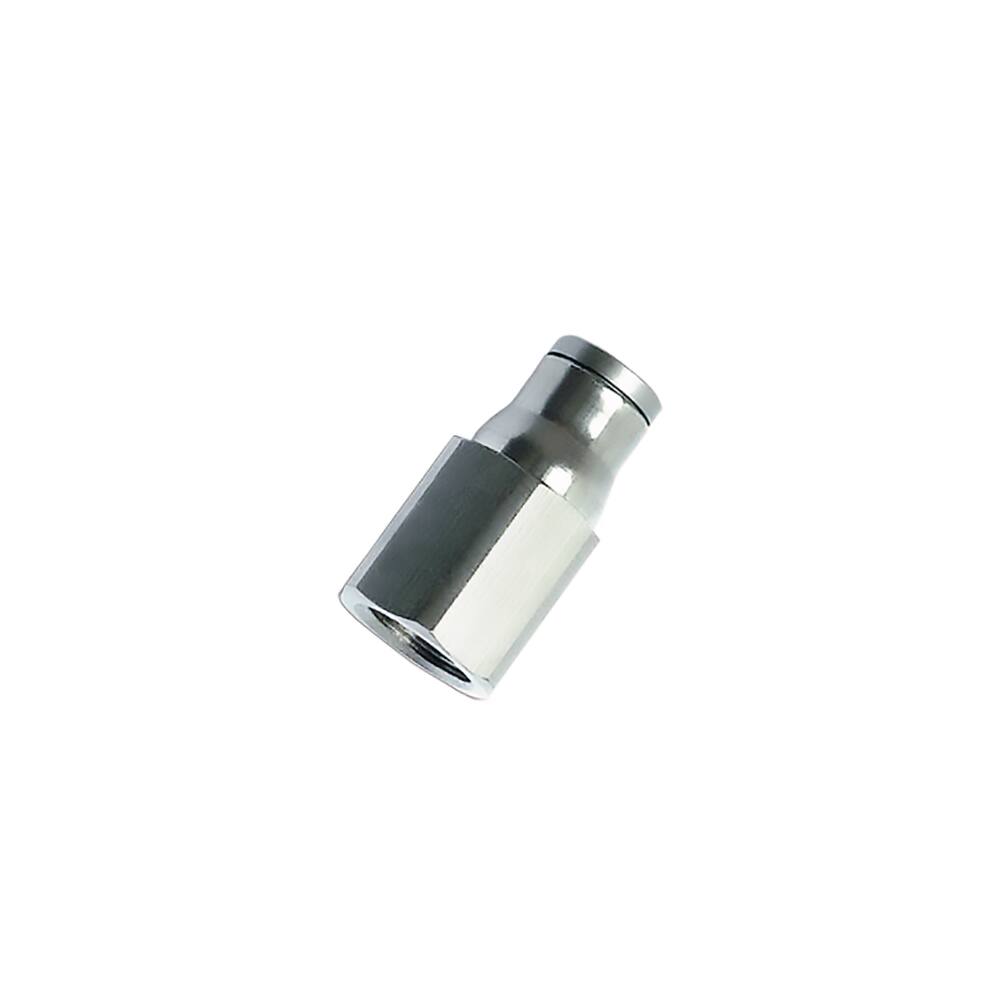

Parker Legris LF3600 8mm - 1/4'' Bspp Female Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect stud fitting designed for low-pressure fluid and process control applications where reliable tube-to-port connections are essential. These fittings excel in lubricant distribution systems and general industrial pneumatic circuits where quick, tool-free assembly saves installation time and reduces downtime. The 8 mm tube connection pairs with a G 1/4 female BSPP port, making it compatible with standard industrial instrumentation and control manifolds. Manufactured from FDA chemical nickel-plated brass with FKM seals, the fitting withstands operating pressures to 30 bar and temperatures ranging from -25 °C to 150 °C, whilst maintaining excellent corrosion resistance. The straight configuration optimises flow characteristics in compact installations, and its vacuum rating of 755 mm-Hg ensures dependable performance across diverse pressure conditions. Widely deployed in process automation, food manufacturing, and instrument air systems, this fitting represents a practical choice for engineers seeking durability and simplicity in their low-pressure connections.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.028 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Swivel |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Female BSPP |
| Shape | Straight |
| Application | General Industrial, Transportation, Fluid Control, Medical, In Plant Pneumatic, Pneumatic, Industrial, Process Control |
| Specifications Met | RoHS, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), REACH, ATEX DI: 94/9/EC, FDA 21 CFR, PED |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
