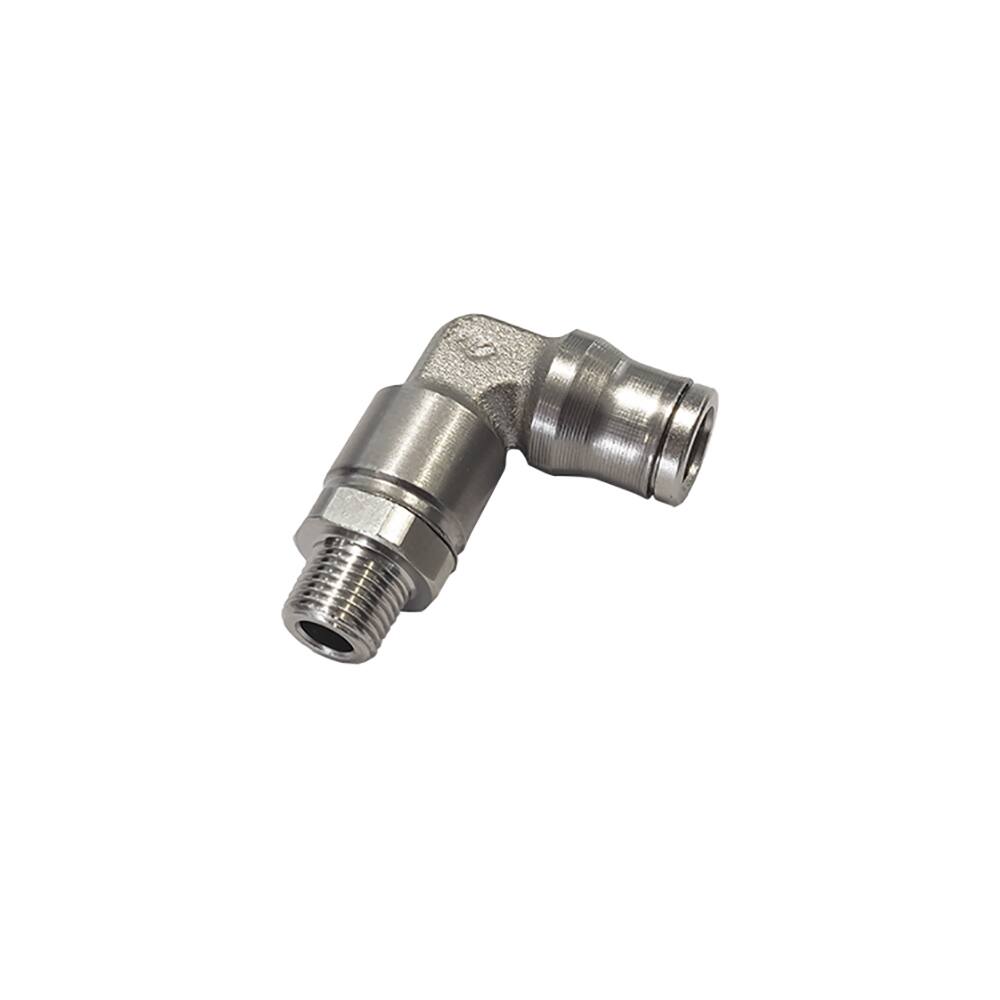

Parker Legris LF3600 8mm - 1/4'' Bspt Male Stud Extended Elbow
Overview
The Parker Legris LF3600 8mm to 1/4" BSPT male stud extended elbow is a push-to-connect fitting designed for process control applications in low-pressure fluid and gas systems.
This 90° elbow fitting simplifies installation and maintenance by enabling quick tube connections without tools or fittings rework. The extended adjustable stud design provides flexibility in system layout, whilst the push-to-connect technology reduces assembly time and labour costs. Ideal for pneumatic control lines, instrument air, and lubricant distribution, this connector maintains reliable performance across demanding environments.
Manufactured from FDA chemical nickel-plated brass with an FKM seal, the fitting delivers corrosion resistance and chemical compatibility. It accommodates 8mm tubing on one end and connects via a 1/4" BSPT male port on the other, operating safely between −25 °C and 150 °C at pressures up to 30 bar, with a vacuum rating of 755 mm-Hg. The fitting meets REACH compliance requirements.
Widely specified in healthcare and life sciences industries, this connector serves automation engineers and technicians requiring dependable, maintainable low-pressure pneumatic and process control systems.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.037 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | R 1/4 |
| Connection 2 Type | Male BSPT |
| Shape | Elbow 90° |
| Application | Medical, Fluid Control, In Plant Pneumatic, Transportation, General Industrial, Industrial, Pneumatic, Process Control |
| Specifications Met | PED, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us), ATEX DI: 94/9/EC, FDA 21 CFR (Food), REACH |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
