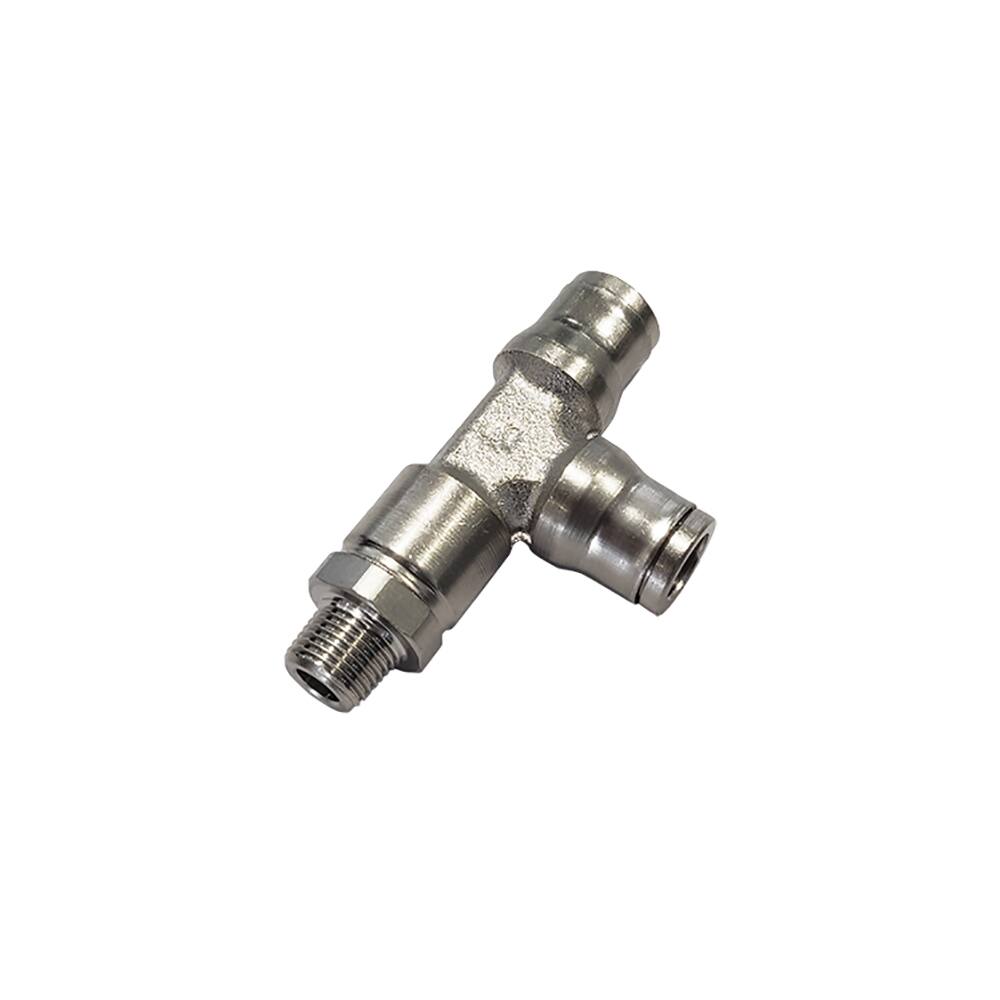

Parker Legris LF3600 8mm - 1/4'' Bspt Male Stud Run Tee
Overview
The Parker Legris LF3600 is a push-to-connect run tee fitting designed for low-pressure water and compressed air applications in industrial processing and transport systems.
This nickel-plated brass stud fitting simplifies plumbing by combining three connection points in a single component, reducing assembly time and potential leak points. The adjustable design accommodates tube insertion and removal without tools, making system maintenance straightforward. Rated for pressures up to 30 bar and operating temperatures between -25°C and 150°C, the fitting handles demanding industrial environments reliably. It accommodates 8 mm O.D. tubing on two ports with a R 1/4 male BSPT thread on the third, offering flexible configuration options for manifold or component mounting.
Constructed from FDA-approved chemical nickel-plated brass with FKM seals, the fitting resists corrosion whilst meeting RoHS compliance requirements. Its compact form factor and straightforward installation appeal to system designers seeking efficient fluid distribution solutions. Ideal for industrial automation, process control, instrument air systems and food and beverage processing applications where reliability and quick maintenance are essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.044 kg |
| For Fluid Type | Air (Compressed Air), Lubricants (Grease), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | 8 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | R 1/4 |
| Connection 3 Type | Male BSPT |
| Shape | Run Tee |
| Application | Industrial, Pneumatic, Process Control, Medical, Fluid Control, In Plant Pneumatic, General Industrial, Transportation |
| Vacuum Pressure Rating | 755 mm-Hg |
| Specifications Met | UL 94 V-0 (Please Consult Us), FDA 21 CFR (Food), EC RG: 1935/2004, PED, ATEX DI: 94/9/EC, REACH, RoHS |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
