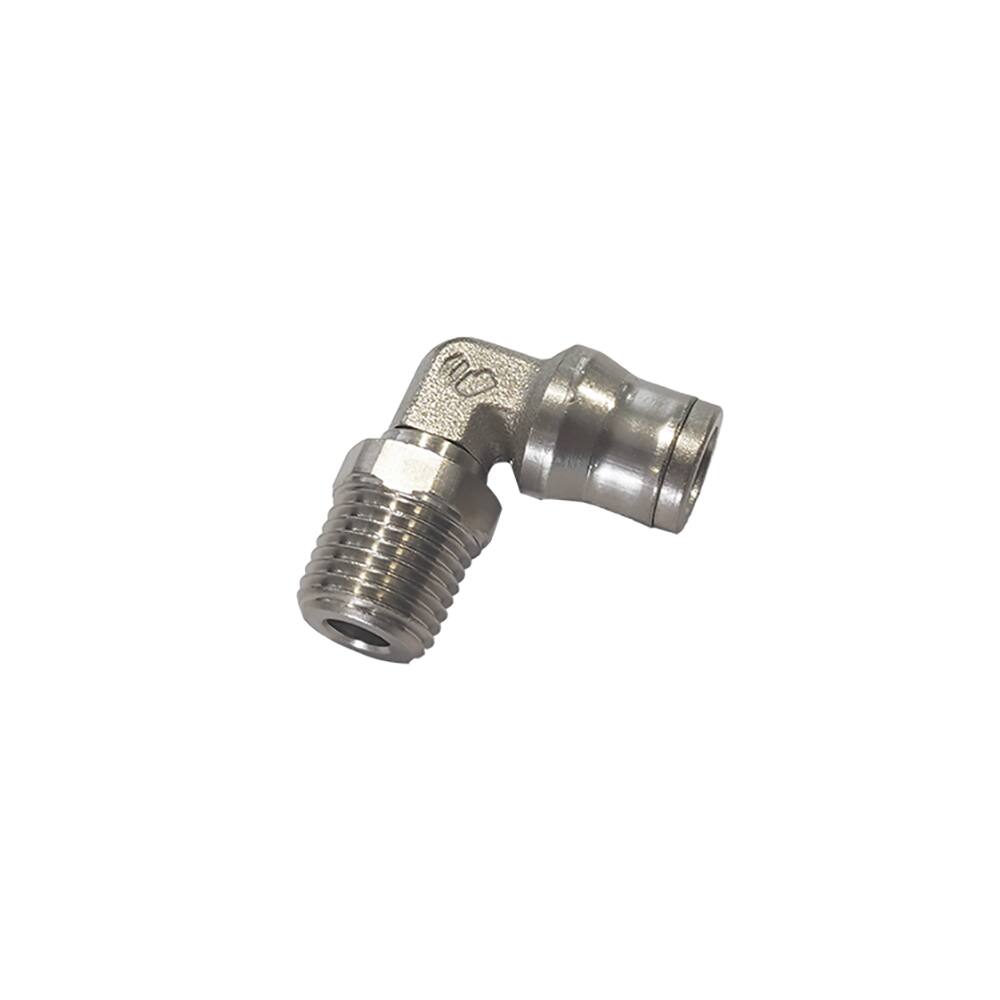

Parker Legris LF3600 8mm - 1/8'' Bspt Male Stud Elbow
Overview
The Parker Legris LF3600 is an 8mm push-to-connect elbow fitting designed for low-pressure water and fluid applications in medical and food & beverage environments. This 90° stud elbow connects 8mm tubes to 1/8" BSPT male ports, making it ideal for compact installations where space and quick assembly are priorities. The fitting is constructed from FDA-approved chemical nickel-plated brass, providing reliable corrosion resistance and durability across demanding hygienic applications. Operating reliably between −25 °C and 150 °C, it supports working pressures up to 20 bar and maintains vacuum integrity to 755 mm-Hg, whilst the FKM seals ensure consistent performance across varying fluid types. Its adjustable stud design allows for precise port alignment during installation. Supplied in boxes of ten, this fitting serves food processing, medical device assembly, and other regulated industries where material compliance and system integrity are non-negotiable.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.023 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | R 1/8 |
| Connection 2 Type | Male BSPT |
| Shape | Elbow 90° |
| Connection 3 Type | n/a |
| Application | Pneumatic, Industrial, In Plant Pneumatic, Process Control, General Industrial, Fluid Control, Transportation, Medical |
| Specifications Met | ATEX DI: 94/9/EC, FDA 21 CFR, REACH, PED, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us) |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
