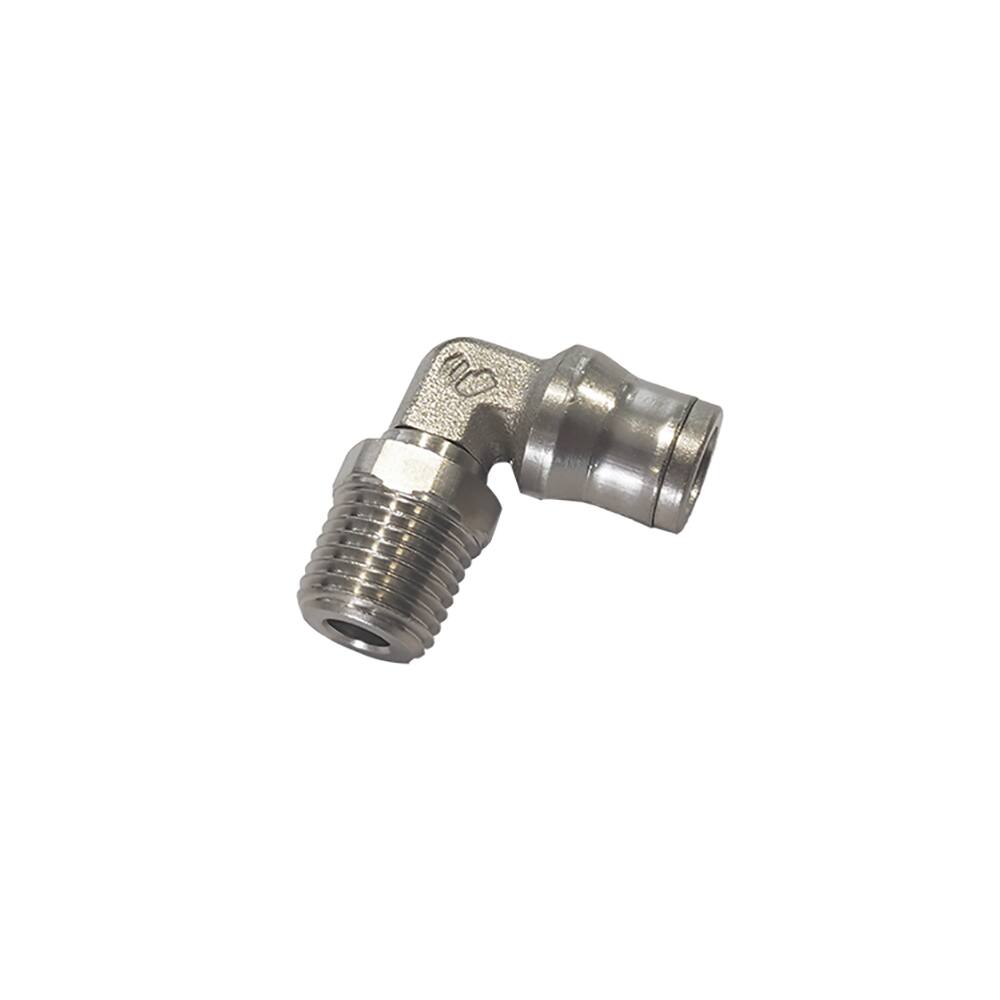

Parker Legris LF3600 8mm - 3/8'' Bspt Male Stud Elbow
Overview
The Parker Legris LF3600 is an 8 mm to 3/8" BSPT male stud elbow designed for compressed air applications in pneumatic systems and low-pressure fluid distribution networks. This 90° elbow fitting connects tubing to threaded ports, making it ideal for routing air lines around obstacles and optimising system layouts in confined spaces. The fitting is constructed from FDA chemical nickel-plated brass with an FKM seal, delivering reliable performance across a working pressure range of 0 to 20 bar and operating temperatures between −25 °C and 150 °C. The push-to-connect design enables quick, tool-free installation whilst the adjustable stud fitting accommodates minor misalignment. With a vacuum rating of 755 mm-Hg, it performs equally well in evacuation applications. Supplied in boxes of 10 and meeting PED requirements, this fitting serves general industrial automation, transportation, process instrumentation and pneumatic control systems.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.035 kg |
| For Fluid Type | Water, Lubricants (Grease), Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | R 3/8 |
| Connection 2 Type | Male BSPT |
| Shape | Elbow 90° |
| Connection 1 Type | Tube |
| Application | General Industrial, Industrial, Process Control, Fluid Control, Pneumatic, In Plant Pneumatic, Medical, Transportation |
| Specifications Met | ATEX DI: 94/9/EC, EC RG: 1935/2004, RoHS, REACH, UL 94 V-0 (Please Consult Us), FDA 21 CFR, PED |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
