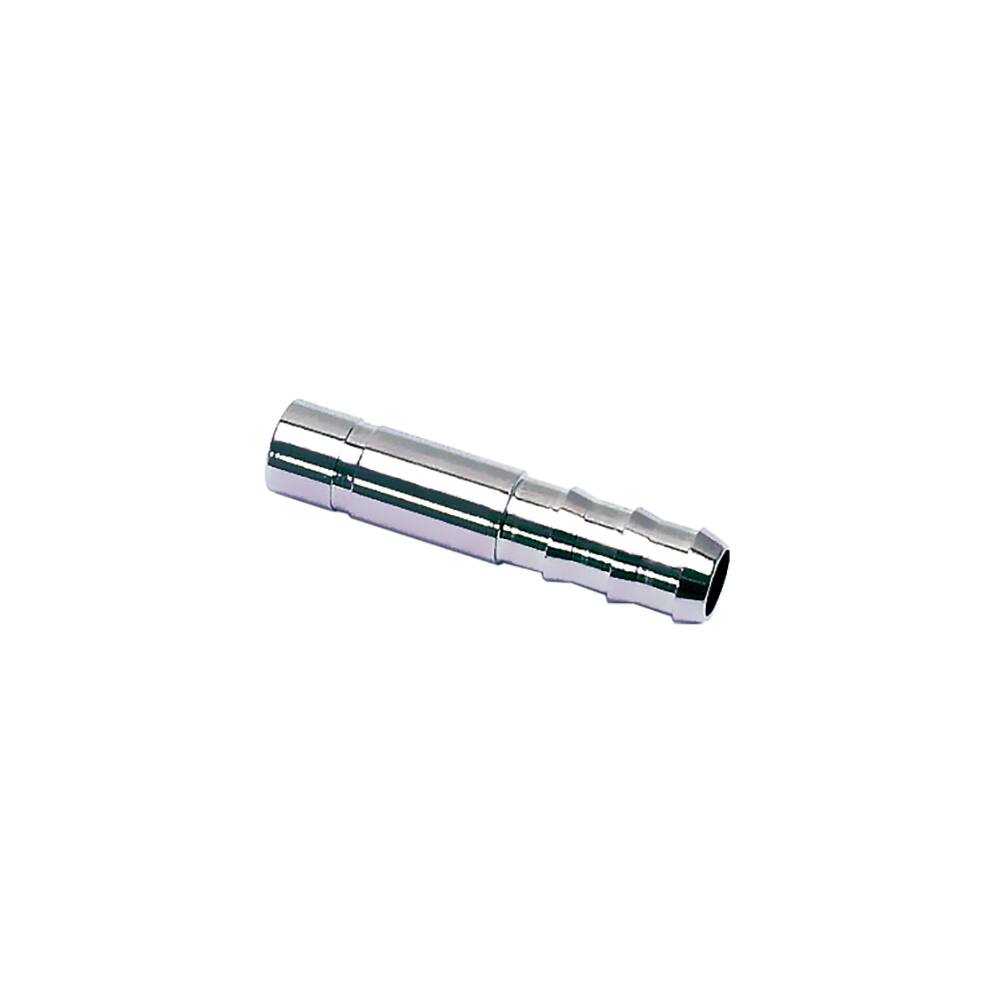

Parker Legris LF3600 8mm - 8mm Plug-In Barb Connector
Overview
The Parker Legris LF3600 8mm Plug-In Barb Connector is a straight tube-to-tube fitting designed for low-pressure fluid and lubricant distribution in industrial applications.
This push-to-connect solution offers quick and reliable assembly without tools or additional components, making it ideal for systems requiring frequent maintenance or reconfiguration. The barbed connector design ensures secure engagement with tubing whilst maintaining flexibility for applications where vibration or movement is a concern. Constructed from FDA chemical nickel-plated brass, the fitting delivers excellent corrosion resistance and biocompatibility, supporting operation across a temperature range of -25°C to 150°C. With an 8mm outer diameter connection on both sides and a maximum working pressure of 30 bar, it accommodates moderate flow requirements in general industrial pneumatic and low-pressure systems. The connector meets REACH compliance and carries a vacuum rating of 755 mm-Hg, ensuring performance in both pressurised and evacuated environments. This fitting serves healthcare and life sciences facilities, food processing operations, and process control installations where hygiene and material compatibility are paramount.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.01 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Barb |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | 8 mm (O.D.) |
| Shape | Straight |
| Application | Pneumatic, Transportation, Fluid Control, Industrial, Medical, Process Control, In Plant Pneumatic, General Industrial |
| Specifications Met | ATEX DI: 94/9/EC, RoHS, EC RG: 1935/2004, FDA 21 CFR (Food), UL 94 V-0 (Please Consult Us), PED, REACH |
| Connection 2 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
