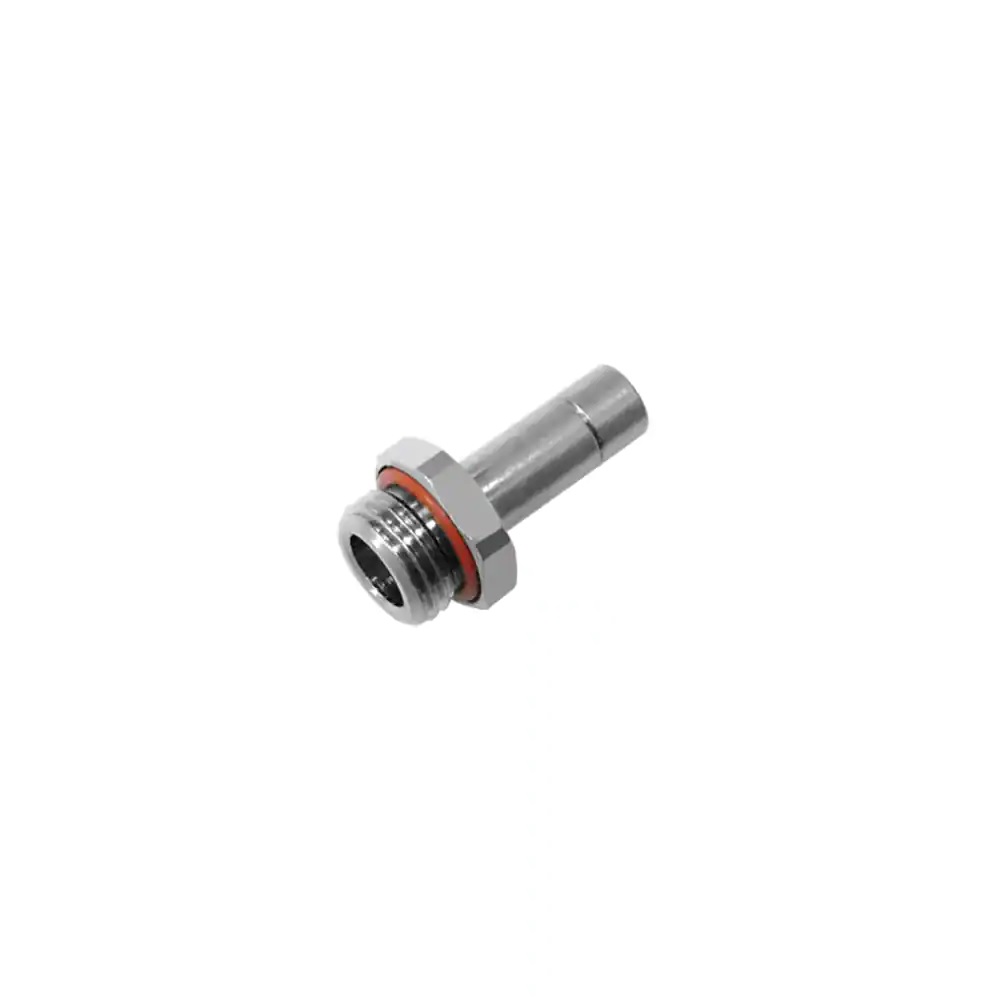

Parker Legris LF3800 10mm - 1/4'' Bspp Male Stud Standpipe
Overview
The Parker Legris LF3800 10mm to 1/4" BSPP male stud standpipe is a straight push-to-connect fitting designed for low-pressure pneumatic and fluid applications in food and chemical processing environments.
This stainless steel 316L fitting delivers reliable performance across a wide operating range, functioning safely from -13°F to 150°C with a maximum working pressure of 435 psi and vacuum rating of 1 bar. The 10mm tube connection pairs seamlessly with G 1/4 BSPP male threaded ports, whilst the compact 19mm hex body simplifies installation and maintenance in confined spaces. Its FKM seal ensures compatibility with water-based fluids and resists common process media, making it ideal for instrument air, process control, and distribution line applications where corrosion resistance is paramount.
The standpipe configuration provides stable, vertical connections without additional support brackets, streamlining system assembly and reducing installation costs. Supplied in packs of two, this RoHS-compliant fitting serves the food processing, chemicals, and industrial automation sectors where hygiene standards and material integrity are non-negotiable.
Specifications
| Connection Type | Tube Stem to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 19 mm |
| Weight | 0.02 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air, Water |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | G 1/4 inch Thread |
| Connection 2 Type | Male, BSPP |
| Shape | Straight |
| Specifications Met | FDA 21 CFR, PED DI: 97/23/EC, ATEX DI: 94/9/EC, USDA NSF H1 (Grease), ISO 14743 (Pneumatic Transmissions), RoHS DI: 2011/65/EC, REACH DI: 1907/2006, UL 94 V-0 (Seal), EC 1935/2004, RoHS DI: 2002/95/EC |
| Application | Medical Equipment, Paper Industry, Chemical Transfer, Petrochemicals, Pharmaceutical, Food Processing |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
