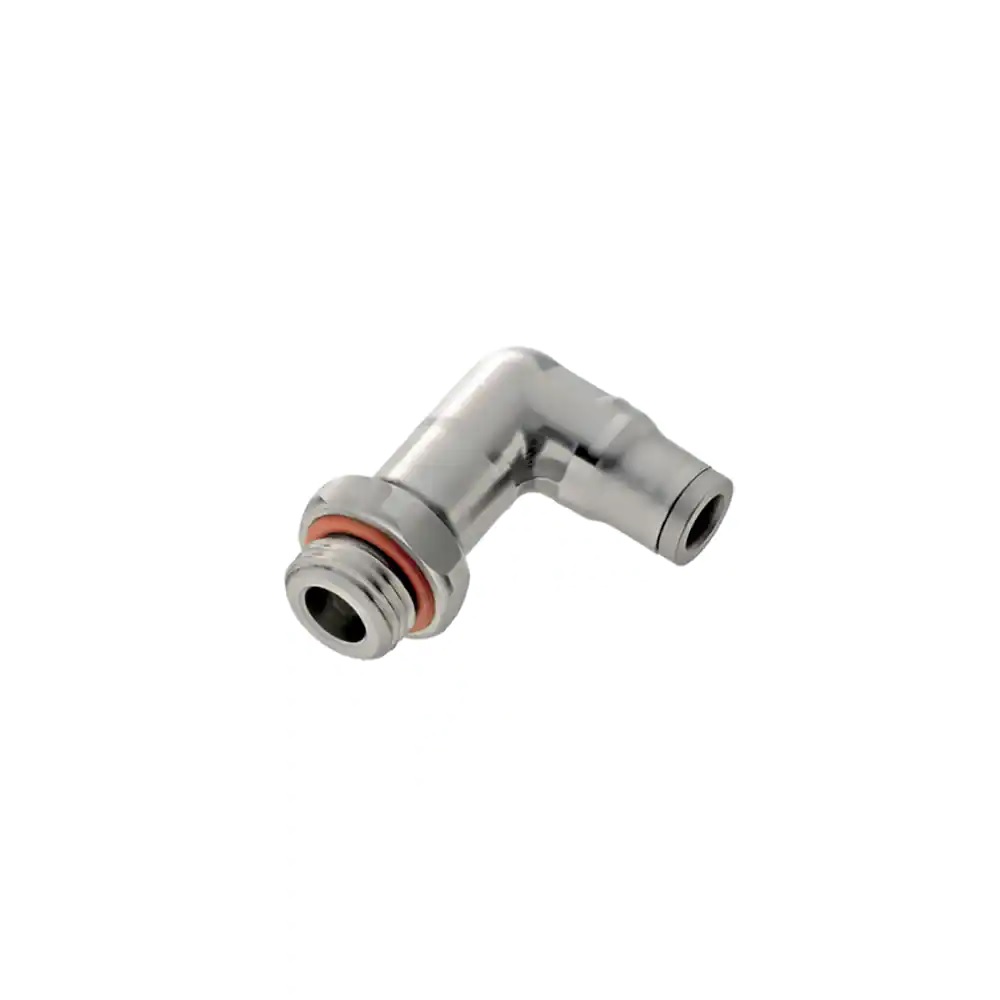

Parker Legris LF3800 10mm - 1/4"Bspp Male Stud Elbow
Overview
The Parker Legris LF3800 10mm to 1/4" BSPP male stud elbow is a push-to-connect fitting designed for low-pressure fluid and gas distribution systems in pharmaceutical and food & beverage applications.
This 90-degree elbow fitting simplifies installation in space-constrained piping layouts where direction changes are required. The stainless steel AISI 316L body provides corrosion resistance in hygiene-sensitive environments, whilst the FKM seal material ensures reliable performance across a wide operating temperature range from −13 °F to 302 °F. Rated for a maximum working pressure of 20 bar with a vacuum capability of 14.5 psi, the fitting accommodates 10mm outer diameter tubing on one end and connects to a G 1/4 male BSPP port on the other. The 19mm hex size enables straightforward installation and removal when required.
Supplied in boxes of two units, this fitting serves pharmaceutical processing, food production, process control, and instrument air distribution networks where compact, reliable connections and material purity are essential.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 20 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 19 mm |
| Weight | 0.067 kg |
| For Fluid Type | Water, Air, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | G 1/4 inch Thread |
| Connection 2 Type | Male, BSPP |
| Shape | Elbow 90° |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
| Specifications Met | RoHS DI: 2011/65/EC, REACH DI: 1907/2006, ATEX DI: 94/9/EC, EC 1935/2004, USDA NSF H1 (Grease), FDA 21 CFR, PED DI: 97/23/EC, UL 94 V-0 (Seal), ISO 14743 (Pneumatic Transmissions), RoHS DI: 2002/95/EC |
| Connection 1 Type | Tube |
| Application | Medical Equipment, Chemical Transfer, Paper Industry, Food Processing, Petrochemicals, Pharmaceutical |
