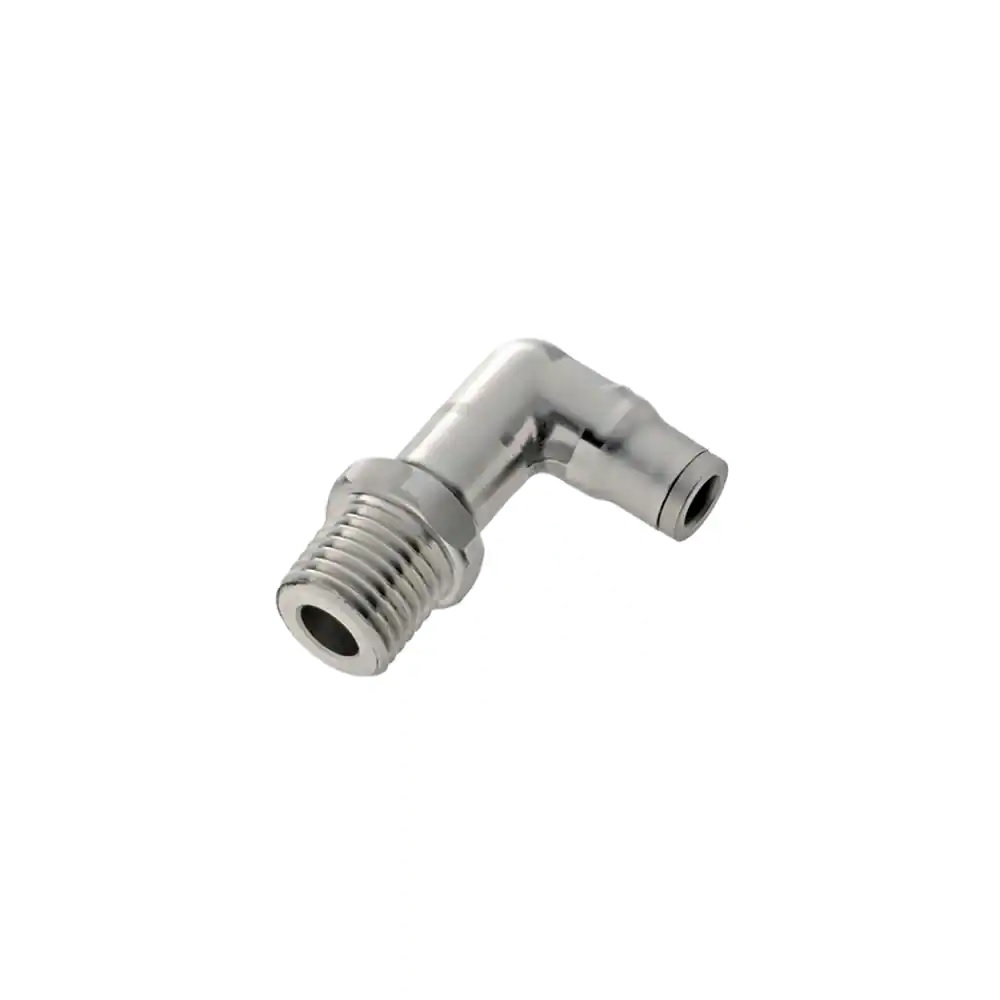

Parker Legris LF3800 10mm - 3/8'' Bspt Male Stud Elbow
Overview
The Parker Legris LF3800 10mm to 3/8" BSPT male stud elbow is a 90° push-to-connect fitting designed for water distribution in pharmaceutical and chemical processing applications.
This stainless steel 316L elbow connector offers reliable performance in low-pressure fluid and gas handling systems, with a maximum operating pressure of 435 psi and temperature range from –13 °F to 150 °C. The push-to-connect design on the tube side (10mm O.D.) eliminates the need for tools or crimping, whilst the male BSPT port connection (R 3/8) with 19mm hex size integrates seamlessly into instrumentation and control manifolds. FKM sealing ensures compatibility with water-based applications and meets ATEX directive requirements for use in potentially explosive atmospheres.
Supplied in boxes of two, this fitting delivers the corrosion resistance and durability essential for demanding process environments. Ideal for instrument air, process control, and low-pressure pneumatic distribution in pharmaceutical manufacturing, food & beverage processing, and chemical facilities.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 19 mm |
| Weight | 0.07 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air, Water |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | R 3/8 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Elbow 90° |
| Application | Paper Industry, Chemical Transfer, Medical Equipment, Food Processing, Petrochemicals, Pharmaceutical |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
| Specifications Met | FDA 21 CFR, RoHS DI: 2002/95/EC, PED DI: 97/23/EC, ISO 14743 (Pneumatic Transmissions), UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, EC 1935/2004, REACH DI: 1907/2006, USDA NSF H1 (Grease), ATEX DI: 94/9/EC |
| Connection 1 Type | Tube |
