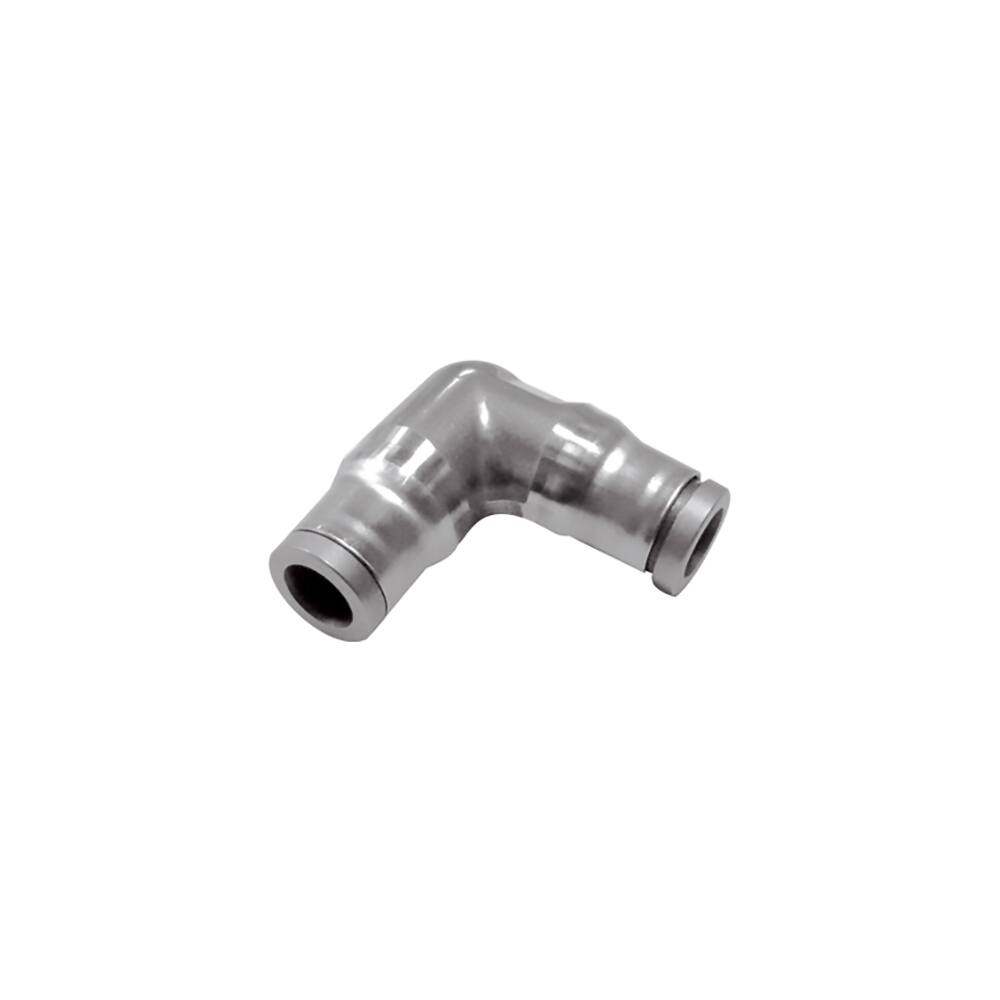

Parker Legris LF3800 4mm Equal Elbow
Overview
The Parker Legris LF3800 4mm Equal Elbow is a push-to-connect stainless steel 316L fitting designed for chemical transfer and low-pressure fluid applications. This 90-degree elbow fitting provides reliable directional changes in pneumatic and fluid handling systems, eliminating the need for complex manifold arrangements and reducing installation time on the shop floor.
Constructed from AISI 316L stainless steel with an FKM seal, this fitting withstands pressures up to 435 psi and operates safely between –25 °C and 302 °F, making it suitable for demanding environments where corrosion resistance matters. The 4mm tube-to-tube configuration connects directly without tools, whilst the hex size range of 10 to 27 mm accommodates standard wrench fitting. Each box contains two fittings, providing stock efficiency for larger projects.
Supplied with RoHS compliance certification, this connector serves pharmaceutical manufacturing, chemical processing, and instrument air applications where precision, durability, and maintenance-free operation are essential.
Specifications
| Connection Type | Tube to Tube |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 10 to 27 mm |
| Weight | 0.015 kg |
| For Fluid Type | Water, Air, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | 4 mm Tube O.D. |
| Connection 2 Type | Tube (O.D.) |
| Shape | Elbow 90° |
| Application | Medical Equipment, Food Processing, Pharmaceutical, Petrochemicals, Paper Industry, Chemical Transfer |
| Specifications Met | EC 1935/2004, REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), FDA 21 CFR, UL 94 V-0 (Seal), PED DI: 97/23/EC, RoHS DI: 2011/65/EC, USDA NSF H1 (Grease), ATEX DI: 94/9/EC, RoHS DI: 2002/95/EC |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
