R393,87Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 30 days
Maximum Operating Pressure
30 bar
Connection 2 Type
Male, BSPP
Connection 1 Type
Tube

Overview

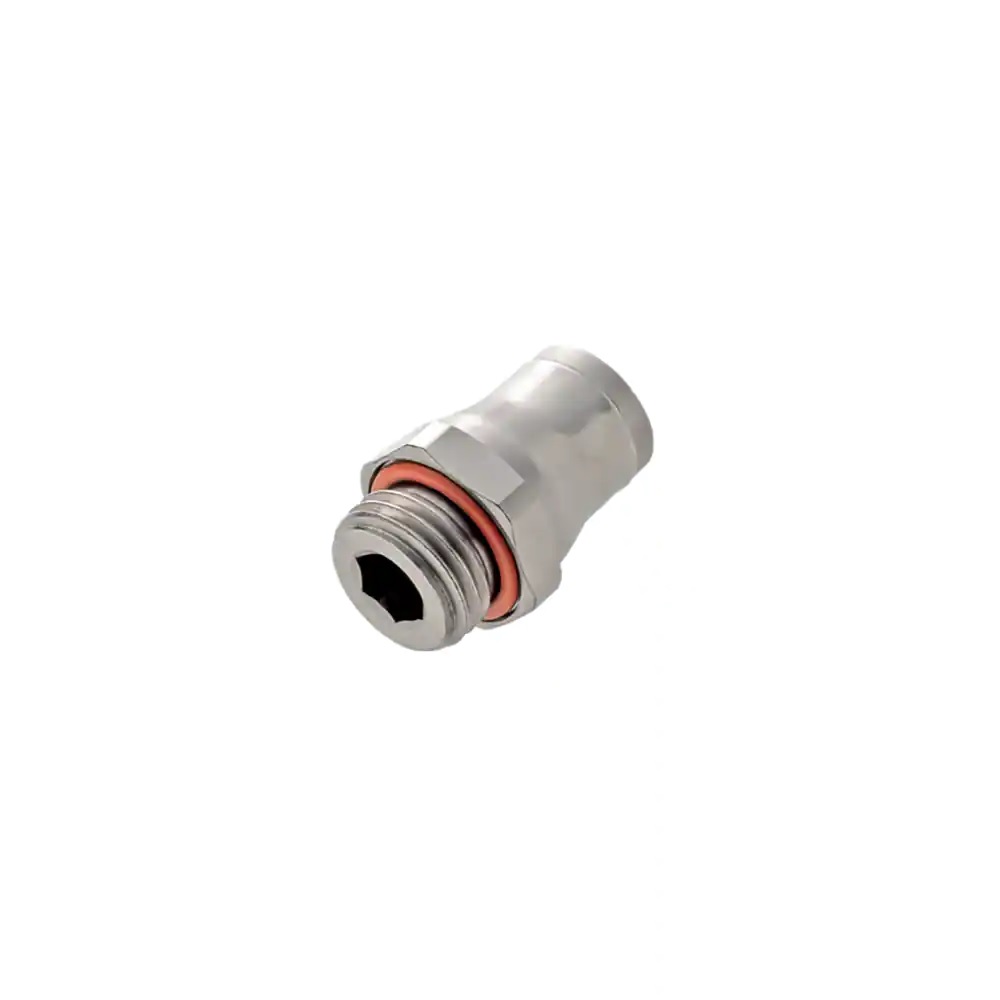

The Parker Legris LF3800 is an 8mm push-to-connect stud fitting designed for low-pressure water and chemical transfer applications in medical and laboratory environments. This straight tube-to-port connector features a G 1/4 male BSPP thread and operates reliably across a temperature range of -13 °F to 302 °F, making it suitable for diverse process conditions. Constructed from stainless steel AISI 316L with an FKM seal, the fitting withstands working pressures up to 435 psi whilst maintaining excellent corrosion resistance in demanding chemical applications. The push-to-connect design eliminates the need for tools during installation, reducing downtime and improving system flexibility. Supplied in packs of two with a 17 mm hex size for wrench engagement, this RoHS-compliant fitting serves medical device manufacturers, laboratory equipment builders, and process automation systems requiring hygienic, durable low-pressure connections.

Source: www.parker.com ↗

Specifications

Connection Type Tube to Port
Maximum Operating Pressure 30 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 17 mm
Weight 0.017 kg
For Fluid Type Other Fluids: Please Consult Us, Air, Water
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube to Port
Connection 1 Size 8 mm Tube O.D.
Connection 2 Size G 1/4 inch Thread
Connection 2 Type Male, BSPP
Shape Straight
Vacuum Pressure Rating 755 mm-Hg, 1 bar
Specifications Met EC 1935/2004, REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), UL 94 V-0 (Seal), FDA 21 CFR, ATEX DI: 94/9/EC, PED DI: 97/23/EC, RoHS DI: 2002/95/EC, USDA NSF H1 (Grease), RoHS DI: 2011/65/EC
Application Food Processing, Petrochemicals, Paper Industry, Pharmaceutical, Medical Equipment, Chemical Transfer
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.35
