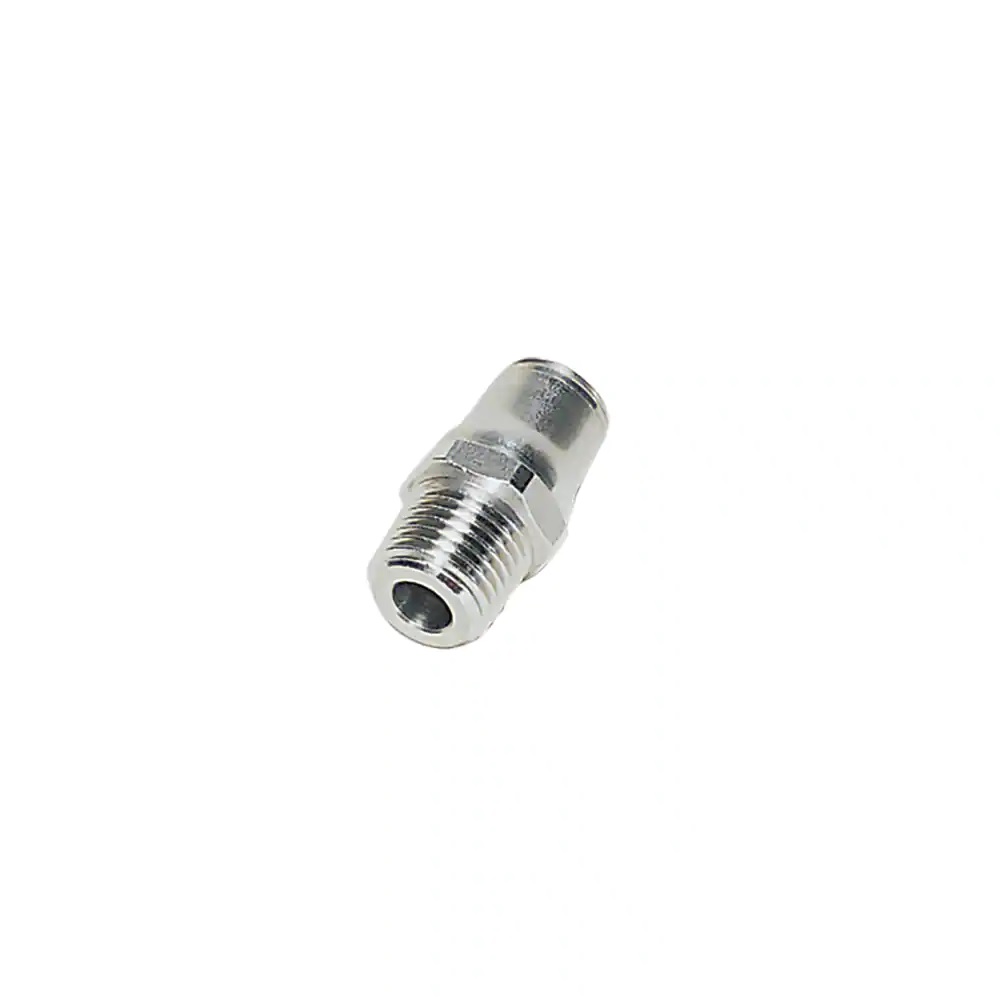

Parker Legris LF3800 8mm - 1/4"Bspt Male Stud
Overview
The Parker Legris LF3800 is a stainless steel push-to-connect stud fitting designed for low-pressure fluid and gas transfer applications in food and beverage processing environments.
This straight connector joins 8 mm tubing to a 1/4" BSPT male port, making it ideal for instrument air lines, chemical transfer systems, and process fluid distribution networks where corrosion resistance and hygiene are essential. The stainless steel AISI 316L body with FKM seals delivers robust performance across a working pressure range of 0–435 psi and temperatures from −25 °C to +150 °C, whilst the vacuum rating of 755 mm-Hg ensures reliable operation in evacuated circuits. The quick-connect push-to-connect design simplifies installation and maintenance without additional tools.
Commonly specified across food processing, beverage production, pharmaceutical manufacturing, and industrial automation sectors, this fitting meets ATEX directive compliance and is supplied in convenient boxes of two units.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 15 mm |
| Weight | 0.018 kg |
| For Fluid Type | Water, Air, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Straight |
| Application | Petrochemicals, Food Processing, Pharmaceutical, Paper Industry, Medical Equipment, Chemical Transfer |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
| Connection 1 Type | Tube |
| Specifications Met | FDA 21 CFR, RoHS DI: 2002/95/EC, PED DI: 97/23/EC, ISO 14743 (Pneumatic Transmissions), UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, EC 1935/2004, REACH DI: 1907/2006, USDA NSF H1 (Grease), ATEX DI: 94/9/EC |
