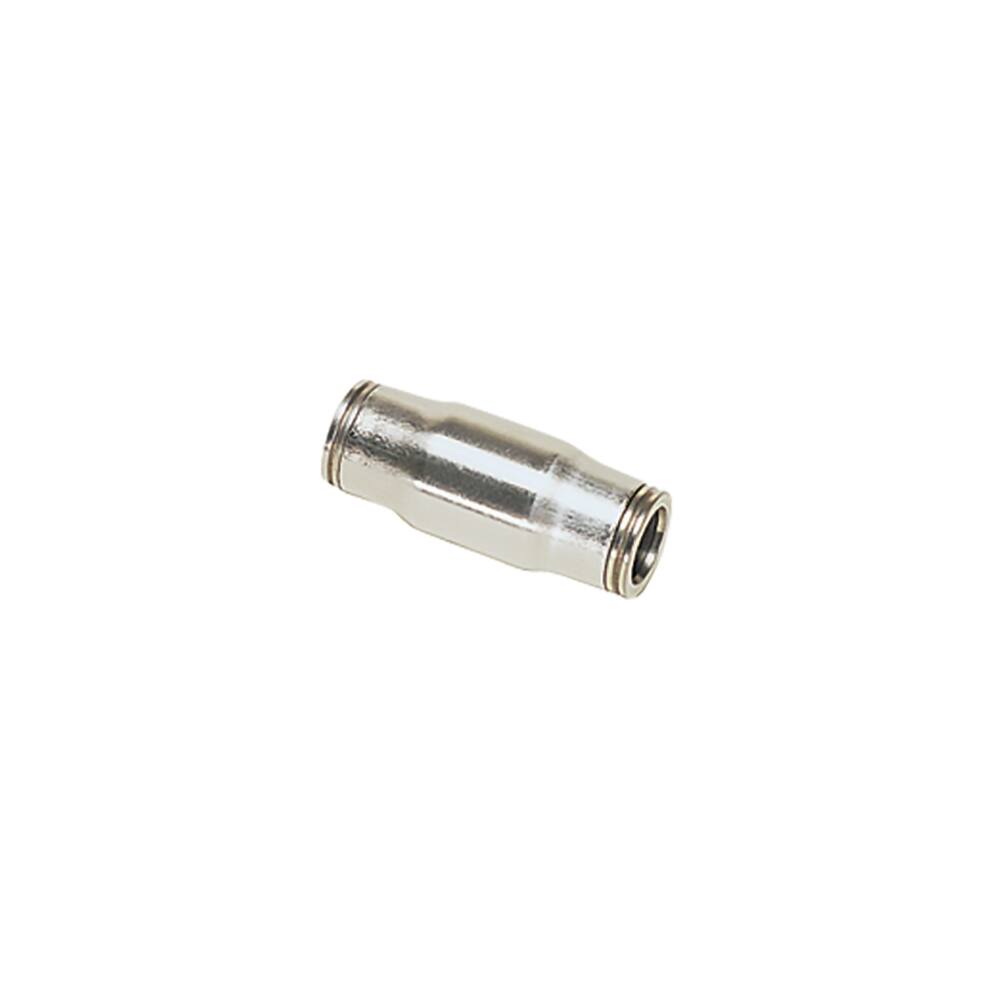

Parker Legris LF3800 8mm Equal Tube To Tube Connector
Overview
The Parker Legris LF3800 8mm Equal Tube to Tube Connector is a push-to-connect fitting designed for pharmaceutical and chemical processing applications requiring reliable pneumatic connections.
This straight connector excels in low-pressure fluid and gas handling systems where quick, tool-free assembly is essential. The 8mm tube-to-tube configuration accommodates standard tubing sizes, whilst the stainless steel AISI 316L body delivers superior corrosion resistance in demanding process environments. Operating reliably between −25°C and 302°F, the fitting maintains a maximum pressure rating of 30 bar with FKM sealing to ensure leak-free performance. The push-in design eliminates the need for crimping or secondary tools, reducing installation time and training requirements across your facility.
Compliant with EC 1935/2004 food-contact regulations, this connector serves industries including industrial automation, pharmaceutical manufacturing, food and beverage processing, and controlled instrument air applications.
Specifications
| Connection Type | Tube to Tube |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 10 to 27 mm |
| Weight | 0.019 kg |
| For Fluid Type | Water, Other Fluids: Please Consult Us, Air |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | 8 mm Tube O.D. |
| Connection 2 Type | Tube (O.D.) |
| Shape | Straight |
| Application | Chemical Transfer, Medical Equipment, Food Processing, Petrochemicals, Paper Industry, Pharmaceutical |
| Specifications Met | ATEX DI: 94/9/EC, RoHS DI: 2002/95/EC, UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, ISO 14743 (Pneumatic Transmissions), FDA 21 CFR, PED DI: 97/23/EC, USDA NSF H1 (Grease), REACH DI: 1907/2006, EC 1935/2004 |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
| Connection 1 Type | Tube |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.36 |
