Parker Hannifin Genuine

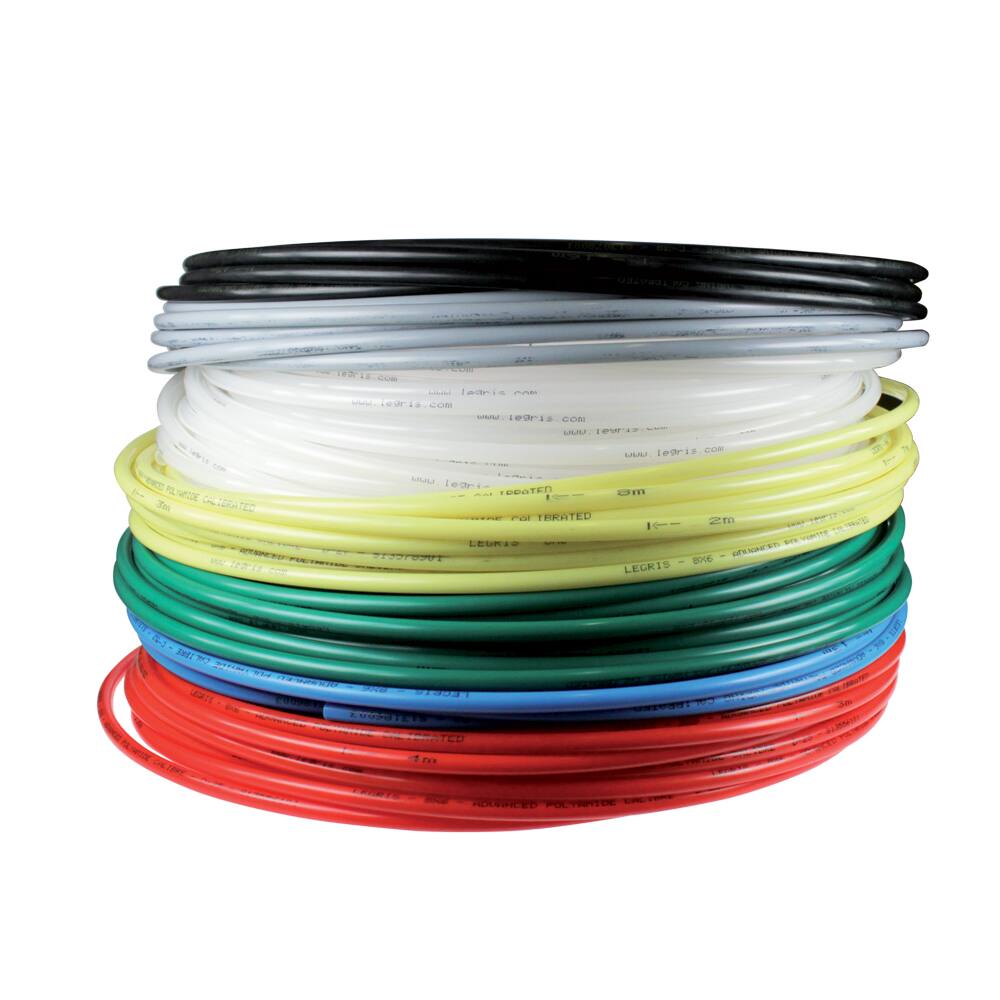

Parker Legris Semi-Rigid Polyamide PA Tubing 12mm OD 9mm ID CLEAR - 100m TubePack
R5794,57Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 25 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
50 bar
Temperature Range
-40°C to +up to 100°C See the Graph “Working Pressure/Working Temperature”
Weight
7 kg/package
Overview
Parker Legris Semi-Rigid Polyamide PA Tubing 12mm OD 9mm ID CLEAR - 100m TubePack
Specifications
| Maximum Operating Pressure | 50 bar |
|---|---|
| Temperature Range | -40°C to +up to 100°C See the Graph “Working Pressure/Working Temperature” |
| Weight | 7 kg/package |
| Tube I.D. (mm) | 9 |
| Tube O.D. (mm) | 12 |
| Tubing Material | PA |
| Length (m) | 100 |
| Color | NATURAL |
| Application | Packaging, Compressed Air, Tooling, Industrial Machinery, Robotics, Motion Technologies |
| Number of Tubes | 1 |
| Media | Industrial Fluids (Rigid PA), Industrial Fluids (Semi-Rigid PA), Air (Compressed Air: Rigid PA), Lubricants (Rigid PA), Air (Compressed Air: Semi-Rigid PA) |
| Specifications Met | PED 97/23/EC (Industrial), REACH 1907/2006 (Industrial), RoHS 2002/95/EC, 2011/65/EC (Industrial) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.270 |
Documents
Catalogues Literature
Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026) – catalogue page for this product (p.270)
Parker Legris Rectus General Catalogue (Europe) – full catalogue
Compliance · Certifications · Safety
Certificate of conformity - NF E49-100_tube PA
Certificate of conformity - REACH_Statement
Certificate of conformity - PFAS
Certificate of conformity - RoHS LPCE
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - DIN73378 & DIN74324-1_tube PA catalogue
Certificate of conformity - 2014 68 EU_connectic
Catalogues & Literature
Technical Tubing And Hose
Parker LPCE--Thermal Management Brochure Legris Rectus Transair
Tubing Part Number Identification
PA Tubing Datasheet
Packaging For Technical Tubing And Hose
