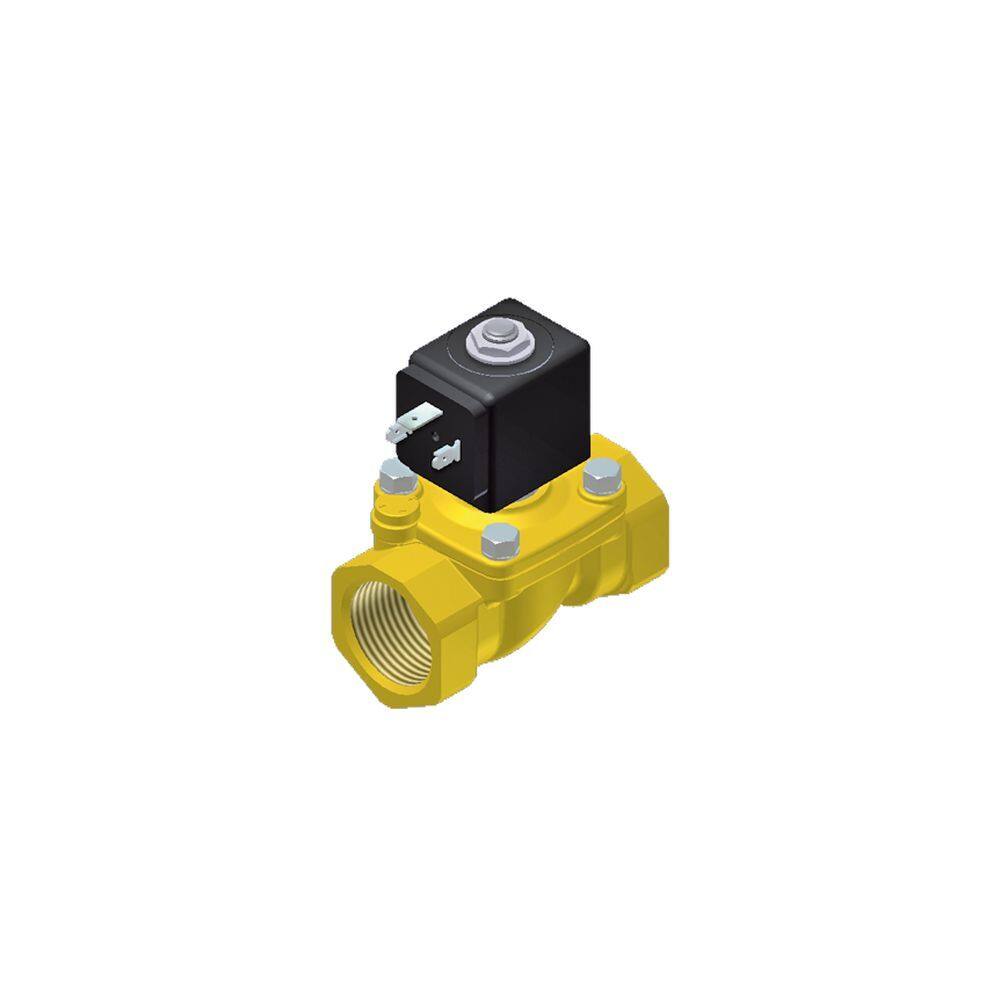

Parker Lucifer General Purpose 2/2 Brass Valve Magnalift 1"Bsp N/C NBR Orifice 15mm - No Coil - Coil Group 2.0
Overview
Parker's 2-Way Normally Closed Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities.
Markets:
- Beverage
- Lifescience
- Industrial Equipment
Features/Benefits:
- Media: Air, gases, water and light oil
- Wide variety of applications
- With or without pressure differential
- Flexibility by allowing numerous combinations
- Modular concept
- Best performances for minimum and maximum operating pressure differential
- Robust design: areas under mechanical stress oversized
- Easy access to internal parts for maintenance
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Specifications
| Function | 2 Way Valves 2/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Magnalift Brass |
|---|---|
| Orifice | 15 mm |
| Kv | 80 l/min (4.8 m³/h) |
| Flow Qn (air) | 6000 l/min |
| Operating pressure | 0–16 bar (AC) |
| Fluid temperature | -10°C to +100°C |
| Seat seal | NBR |
| Coil group | 8 |
| Valve code | 221G17 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.38, 90, 106, 524 |
Documents
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →

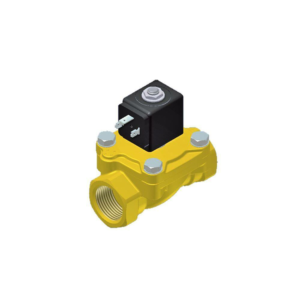

Parker Lucifer General Purpose 2/2 Brass Valve Magnalift 1"Bsp N/C NBR Orifice 25mm c/w Selector - No Coil - Coil Group 2.1

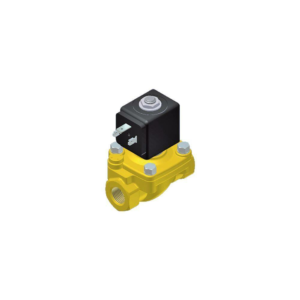

Parker Lucifer General Purpose 2/2 Brass Valve Magnalift 3/8"Bsp N/C FKM Orifice 15mm - No Coil - Coil Group 2.0
