Parker Hannifin Genuine
Parker Lucifer General Purpose 2/2 Brass Valve Magnalift 3/8"Bsp N/C EPDM Orifice 15mm - No Coil - Coil Group 2.0
R2712,96Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Function
2 Way Valves 2/2 Hot Water And Steam Valves Magnalift Brass Pipe Mounting Normally Closed
Orifice
15 mm
Kv
65 l/min (3.9 m³/h)
Overview

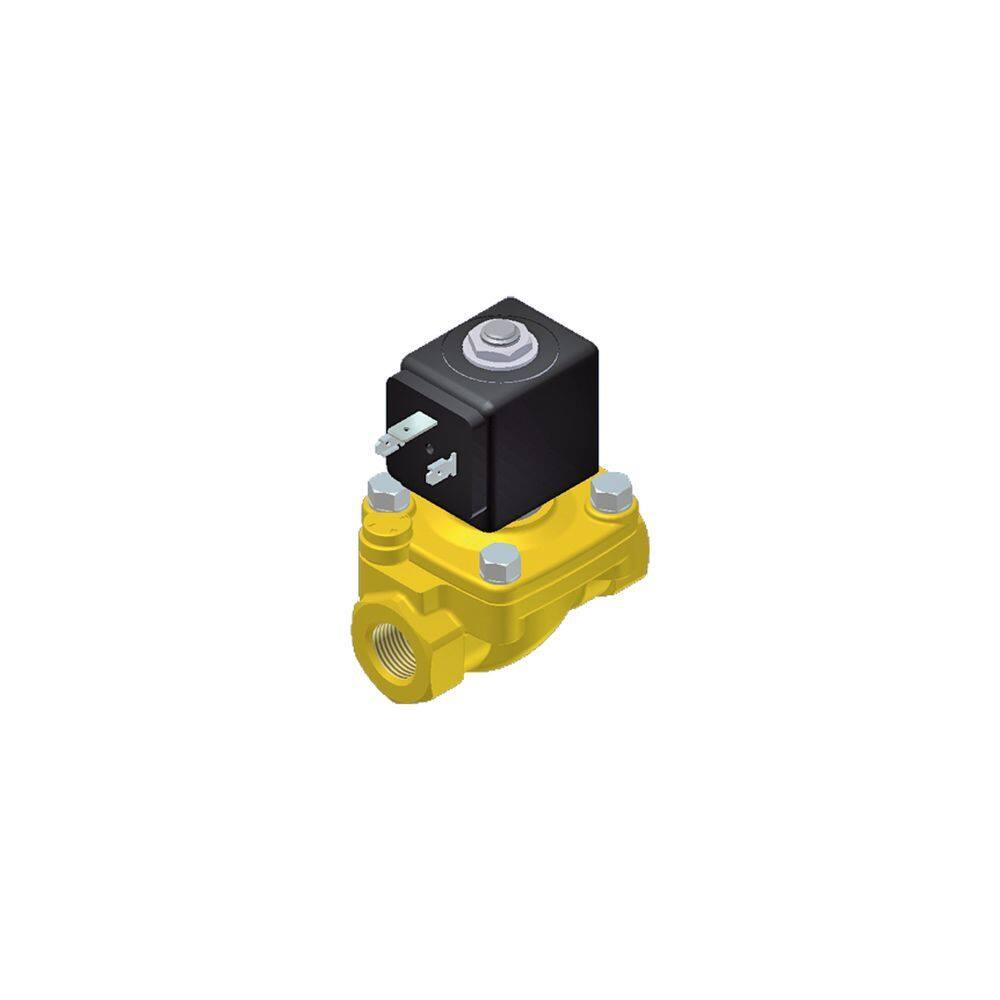

Parker Lucifer General Purpose 2/2 Brass Valve Magnalift 3/8"Bsp N/C EPDM Orifice 15mm - No Coil - Coil Group 2.0
Specifications
| Function | 2 Way Valves 2/2 Hot Water And Steam Valves Magnalift Brass Pipe Mounting Normally Closed |
|---|---|
| Orifice | 15 mm |
| Kv | 65 l/min (3.9 m³/h) |
| Operating pressure | 0–10 bar (AC) |
| Fluid temperature | 0°C to +100°C |
| Seat seal | EPDM |
| Coil group | 8 |
| Valve code | 221G1303 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.106, 524 |
