Parker Hannifin Genuine

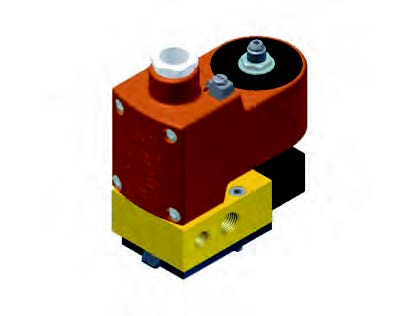

Parker Lucifer General Purpose 3/2 or 5/2 Single Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/8"Bsp - 1/4"Bsp NBR/PUR Orifice 4mm - No Coil - Coil Group 7.0
R6614,38Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar DC
Body Material
Anodized aluminium
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 3/2 or 5/2 Single Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/8"Bsp - 1/4"Bsp NBR/PUR Orifice 4mm - No Coil - Coil Group 7.0
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar DC |
| Body Material | Anodized aluminium |
| Seal Material | PUR/NBR |
| Valve Type | 3/2-5/2 Way |
| Actuation Type | PILOT OPERATED |
| Coil Power Consumption | - |
| Coil Temperature Range | - |
| Electrical Connection | - |
| Flow Coefficient | 355 l/min |
| Port Type | Namur |
| Minimum Operating Pressure | 2 bar DC |
| ATEX Specifications Met | - |
| Minimum Fluid Temperature | -25 °C |
| Orifice Size | 4 mm |
| Media | Air |
| Maximum Fluid Temperature | 75 °C |
Documents
Demos & Tutorials
Catalogues & Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →

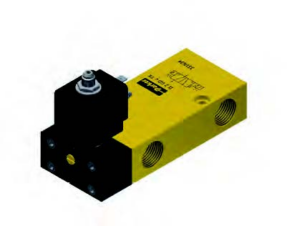

Parker Lucifer General Purpose 3/2 Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/2"Bsp NBR Orifice 12mm c/w Manual Override - No Coil - Coil Group 1.2

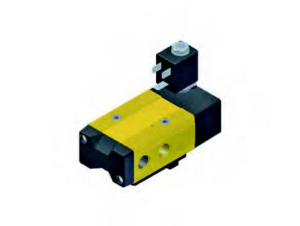

Parker Lucifer General Purpose 3/2 Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/2"Bsp NBR Orifice 12mm c/w Manual Override - No Coil - Coil Group 2.1
