Parker Hannifin Genuine

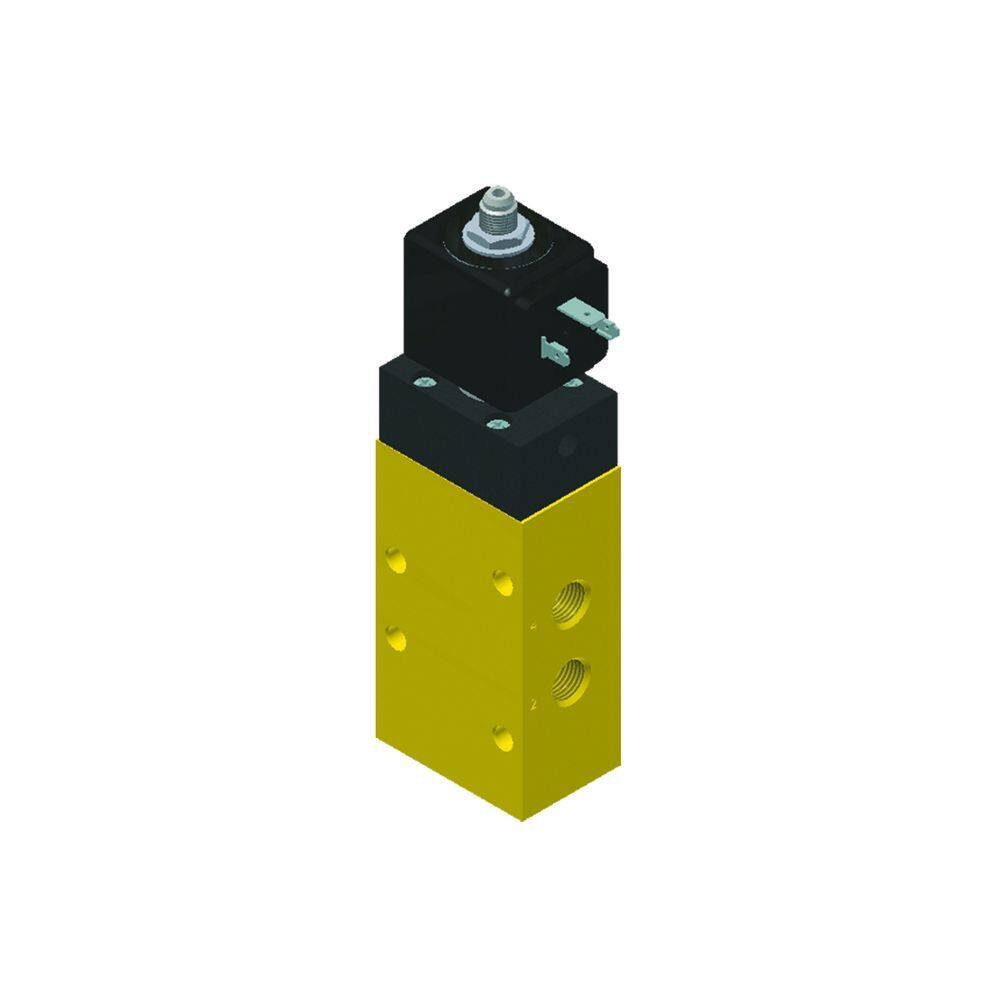

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm - No Coil - Coil Group 2.1/3.0
R6859,29Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized aluminium
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm - No Coil - Coil Group 2.1/3.0
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| Actuation Type | PILOT OPERATED |
| Coil Power Consumption | - |
| Coil Temperature Range | - |
| Electrical Connection | - |
| Flow Coefficient | 1400 l/min |
| Port Type | Pipe mounting |
| Media | Air |
| Coil Specifications Met | - |
| Maximum Fluid Temperature | +75°C |
| ATEX Specifications Met | - |
| Minimum Fluid Temperature | -10°C |
