Parker Hannifin Genuine

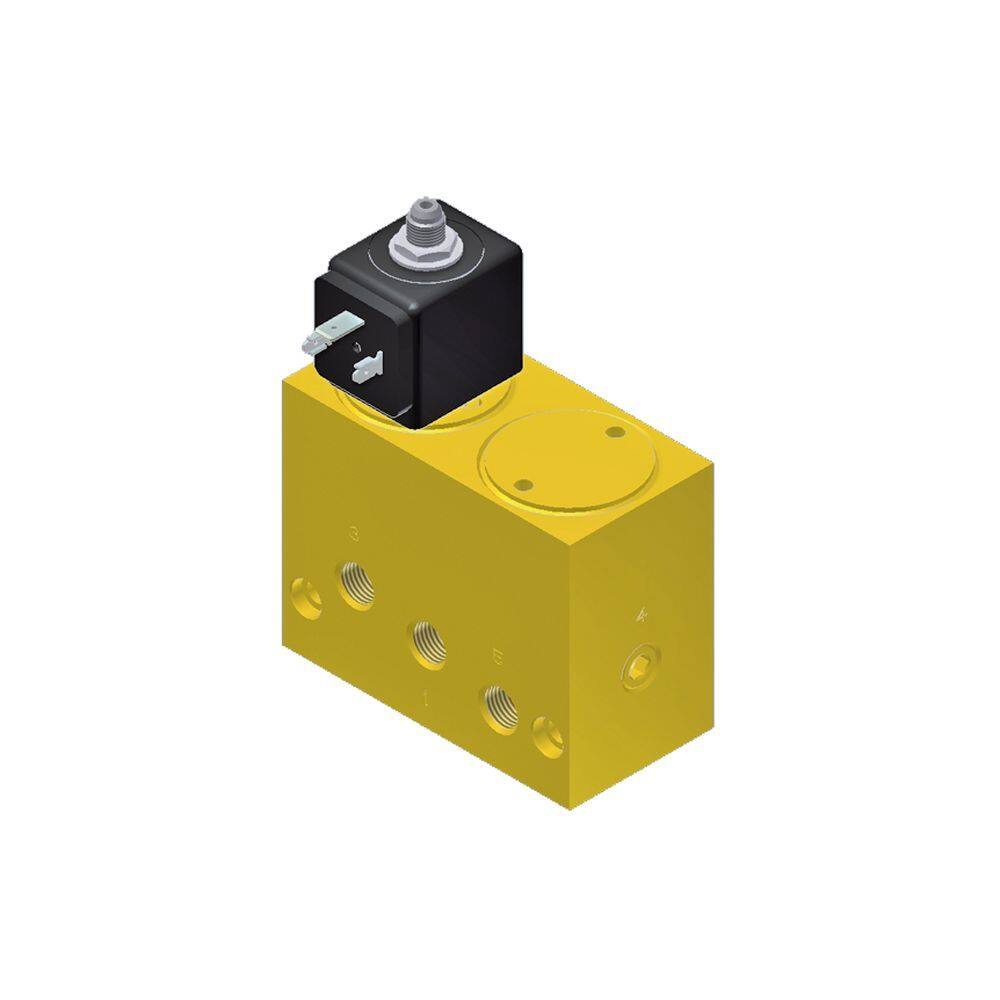

Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm - No Coil - Coil Group 2.1
R19 940,73Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 70 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
15 bar AC/DC
Body Material
Anodized aluminium
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Spring Return Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm - No Coil - Coil Group 2.1
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 15 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| ATEX Specifications Met | - |
| Flow Coefficient | 16 l/min |
| Maximum Fluid Temperature | +75°C |
| Orifice Size | 8 mm |
| Port Size | G 1/4 |
| Port Type | PIPE MOUNTING |
| Specifications Met | Pilot seat in FKM. |
| Minimum Fluid Temperature | -10 °C |
| Coil Specifications Met | - |
| Insulation Class | - |
| Media | Oils, air, neutral gases |
| Actuation Type | PILOT OPERATED |
| Coil Temperature Range | - |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.246, 525 |
